Atlas Copco8424 1125 06

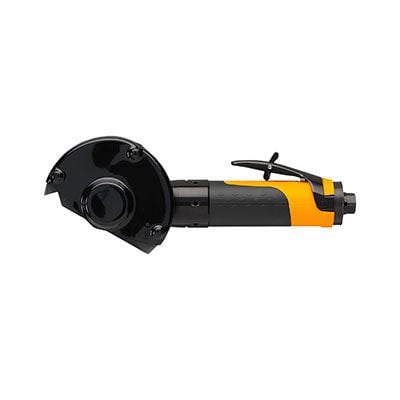

LCS38 S150D, 4'' Circular Cutter, 1.7 hp, 15000 rpm
8424 1125 06 | LCS38 S150D, 4'' Circular Cutter, 1.7 hp, 15000 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8424 1125 06 | LCS38 S150D, 4'' Circular Cutter, 1.7 hp, 15000 rpm8424 1125 06
Price on request
Details
Product information
Overview
Atlas Copco 8424 1125 06
Atlas Copco Circular Cutter, 1.7 Hp, 15000 Rpm
Max Ouput (hp): 1.7Free Speed (RPM): 15000
Weight (lbs): 3.7
Max Air Consumption (cfm): 58
Air Inlet (NPT): 3/8
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 3/8 in |
| length | 306 mm |
| maxcutterbladedia | 100 mm |
| maxcuttingdepth | 26 mm |
| rechosesize | 13 mm |
| weight | 3.7 lb |
| dustextraction | Central suction |
| maxfreespeed | 15000 r/min |
| airconsumptionatfreespeed | 28 l/s |
| maxworkingpressure | 90 psig |
| soundpower | 97 dB(A) |
| soundpressure | 86 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-8 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-7 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-7 |
| maxoutput | 1.3 kW |
| lubricationfree | Yes |
| MPN | 8424 1125 06 |
