Atlas Copco8424 1161 38

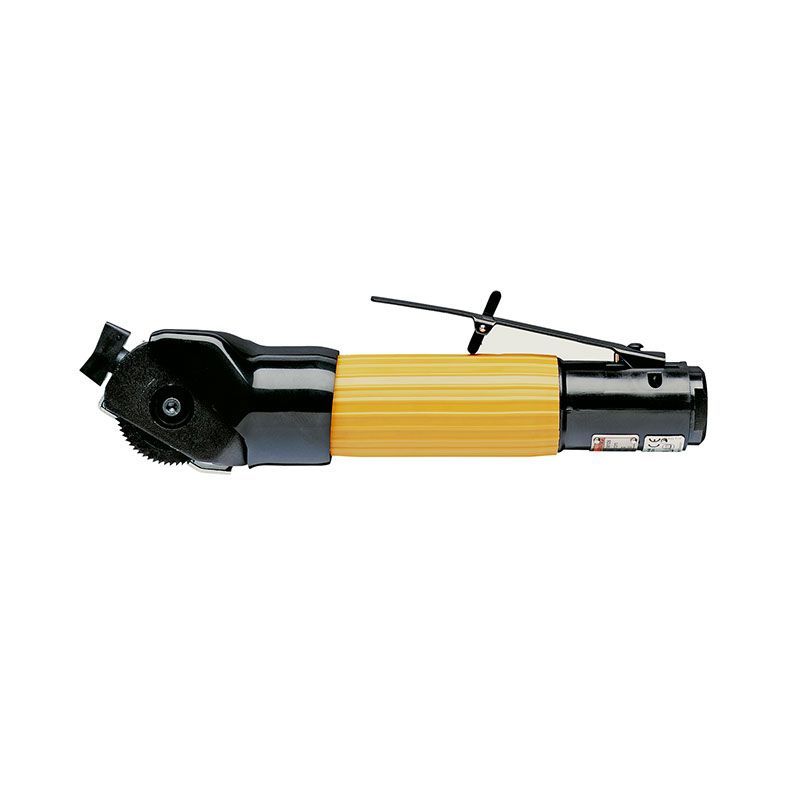

LCS10, 2'' Circular Cutter, 0.4 hp, 3000 rpm
8424 1161 38 | LCS10, 2'' Circular Cutter, 0.4 hp, 3000 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8424 1161 38 | LCS10, 2'' Circular Cutter, 0.4 hp, 3000 rpm8424 1161 38
Price on request
Details
Product information
Overview
Atlas Copco 8424 1161 38
Atlas Copco Circular Cutter, 0.4 Hp, 3000 Rpm
Max Ouput (hp): 0.4Free Speed (RPM): 3000
Weight (lbs): 3.1
Max Air Consumption (cfm): 16
Air Inlet (NPT): 1/4
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| airinletthreadbsp | 1/4 in |
| length | 264 mm |
| maxcutterbladedia | 50 mm |
| maxcuttingdepth | 10 mm |
| rechosesize | 6.3 mm |
| weight | 3.1 lb |
| dustextraction | No suction |
| maxfreespeed | 3000 r/min |
| airconsumptionatfreespeed | 7.6 l/s |
| maxworkingpressure | 90 psig |
| soundpower | 103 dB(A) |
| soundpressure | 92 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-8 |
| vibrationuncertainty | 0.9 m/s² |
| vibrationvalue | 2.6 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-12:2013 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-12:2013 |
| maxoutput | 0.3 kW |
| lubricationfree | No |
| MPN | 8424 1161 38 |
