Atlas Copco8425 0101 30

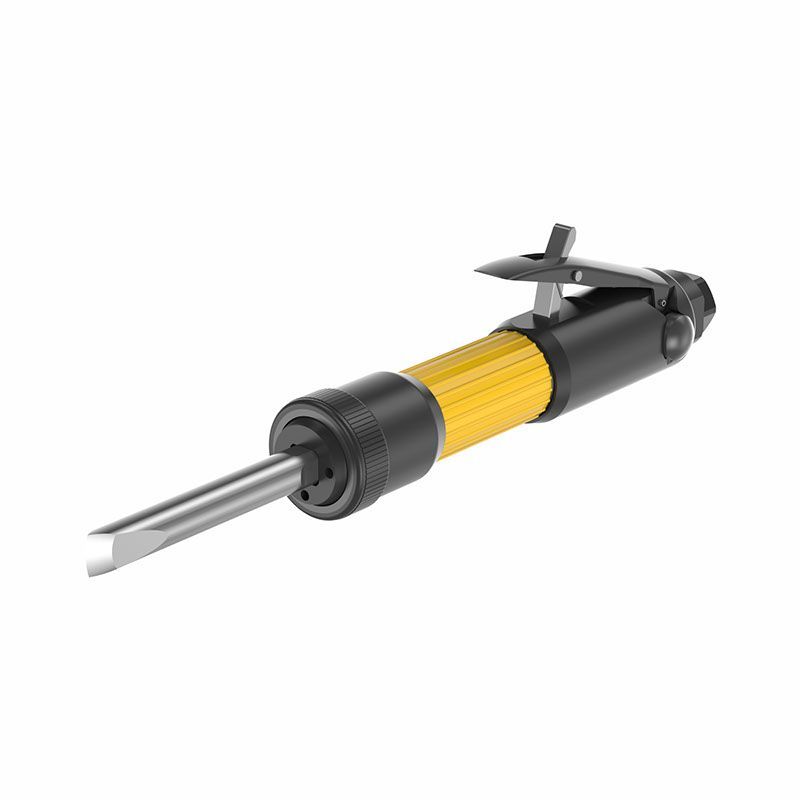

1 ft lb Scaler, 73 hz blows, 1.4 in. stroke
8425 0101 30 | 1 ft lb Scaler, 73 hz blows, 1.4 in. stroke
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8425 0101 30 | 1 ft lb Scaler, 73 hz blows, 1.4 in. stroke8425 0101 30
Price on request
Details
Product information
Overview
Atlas Copco 8425 0101 30
Atlas Copco Scaler, 73 Blows Hz, 8 Air Consumption (Cfm)
Stroke Length: 73Weight (lbs): 3.1
Max Air Consumption (cfm): 8
Air Inlet (NPT): 3/8
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| length | 221 mm |
| pistondia | 15 mm |
| rechosesize | 10 mm |
| stroke | 35 mm |
| weight | 3.1 lb |
| blows | 73 Hz |
| dampening | Conventional |
| energyperblow | 1 ft-lb |
| airconsumption | 4 l/s |
| airinletthreadbsp | 3/8 |
| maxworkingpressure | 90 psi |
| soundpower | 102 dB(A) |
| soundpressure | 91 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-9 |
| vibrationuncertainty | 2.7 m/s² |
| vibrationvalue | 11.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-4 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-4 |
| MPN | 8425 0101 30 |
