Atlas Copco8425 0202 30
RRC22F?02 | Chipping Hammer, 2 ft lbs
highly dependable. For safer jobs - RRC hammers are delivered with a chisel retainer as standard. For the same reason choose a tool that can be guided via the machine itself and not by holding the chisel.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8425 0202 30 | RRC22F?02 | Chipping Hammer, 2 ft lbsRRC22F?02
Price on request
Details
Product information
Overview

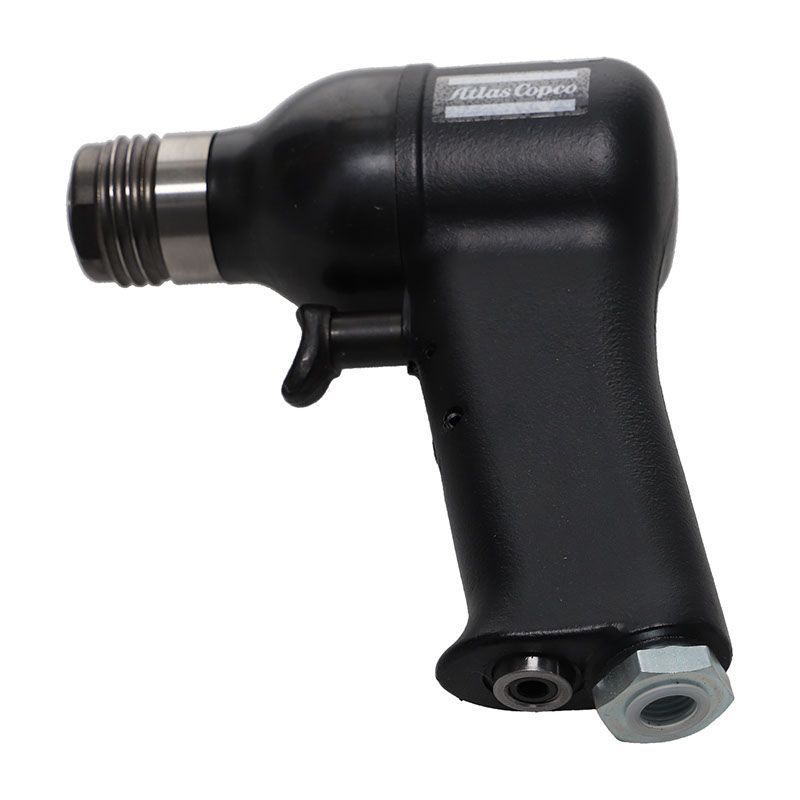

Atlas Copco 8425 0202 30
Atlas Copco Chipping Hammer, 2 Stroke Length, 13.1 Air Consumption (Cfm)
Stroke Length: 2Weight (lbs): 4.9
Max Air Consumption (cfm): 13.1
Air Inlet (NPT): 3/8
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| pistondia | 15 mm |
| rechosesize | 10 mm |
| stroke | 52 mm |
| weight | 4.9 lb |
| blows | 62 Hz |
| dampening | Conventional |
| energyperblow | 2 ft-lb |
| airconsumption | 6.2 l/s |
| airinletthreadbsp | 3/8 |
| soundpower | 110 dB(A) |
| soundpressure | 99 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-10 |
| vibrationuncertainty | 1.7 m/s² |
| vibrationvalue | 6.1 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-4 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-4 |
| MPN | RRC22F?02 |
| Features & Benefits | |
| Well proven percussive mechanism | |
| Robust design | |
| Durable and dependable | |
| High material removal rate | |
