Atlas Copco8425 0225 33

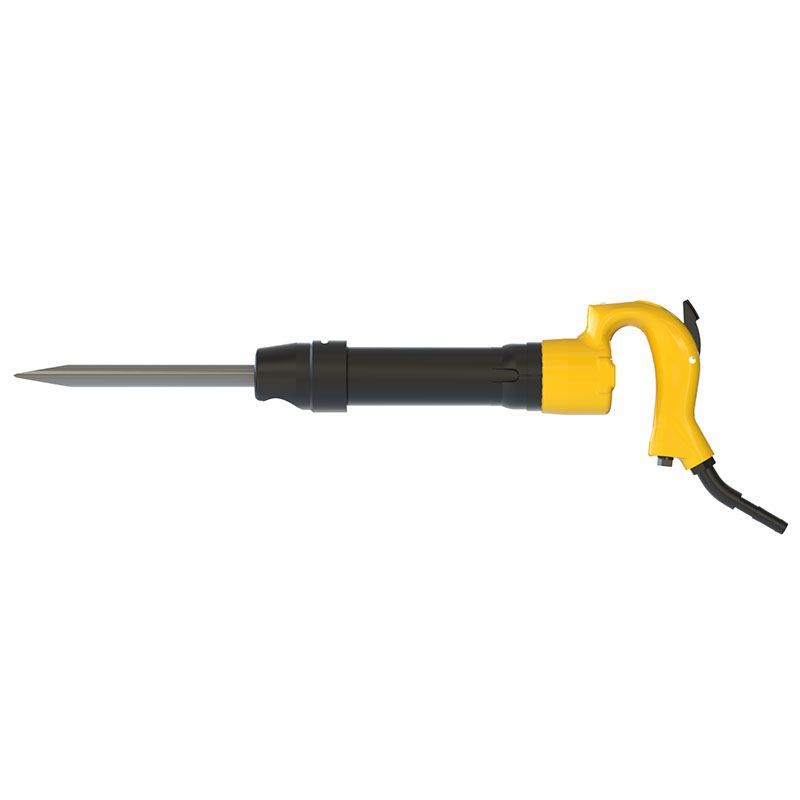

RRC65B?01 | Chipping Hammer, 7.3 ft lbs
highly dependable. For safer jobs - RRC hammers are delivered with a chisel retainer as standard. For the same reason choose a tool that can be guided via the machine itself and not by holding the chisel.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8425 0225 33 | RRC65B?01 | Chipping Hammer, 7.3 ft lbsRRC65B?01
Price on request
Details
Product information
Overview
Atlas Copco 8425 0225 33
Atlas Copco Chipping Hammer, 2 Stroke Length, 22.9 Air Consumption (Cfm)
Stroke Length: 2Weight (lbs): 13
Max Air Consumption (cfm): 22.9
Air Inlet (NPT): Special
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| pistondia | 29 mm |
| rechosesize | 12.5 mm |
| stroke | 50 mm |
| weight | 13 lb |
| blows | 40 Hz |
| dampening | Conventional |
| energyperblow | 7.3 ft-lb |
| airconsumption | 10.8 l/s |
| airinletthreadbsp | special |
| soundpower | 114 dB(A) |
| soundpressure | 103 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-10 |
| vibrationuncertainty | 1.6 m/s² |
| vibrationvalue | 12 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-4 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-4 |
| MPN | RRC65B?01 |
| Features & Benefits | |
| Well proven percussive mechanism | |
| Robust design | |
| Durable and dependable | |
| High material removal rate | |
