Atlas Copco8425 1103 20

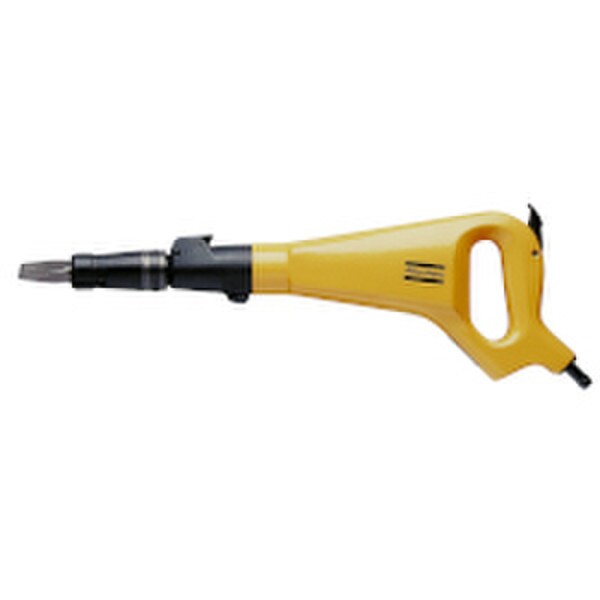

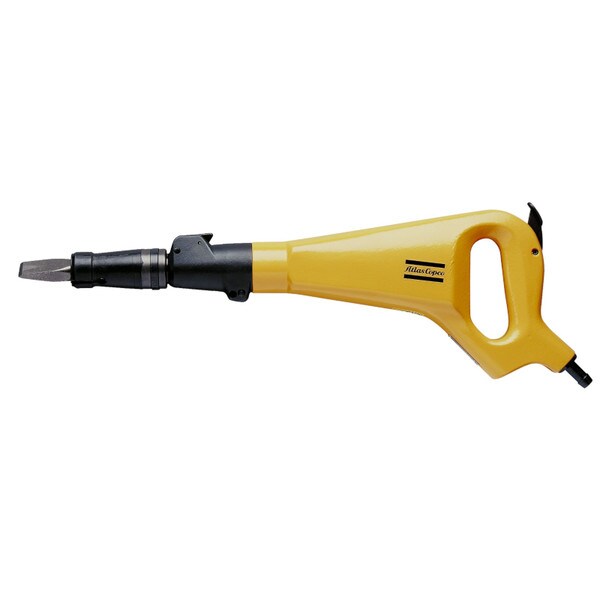

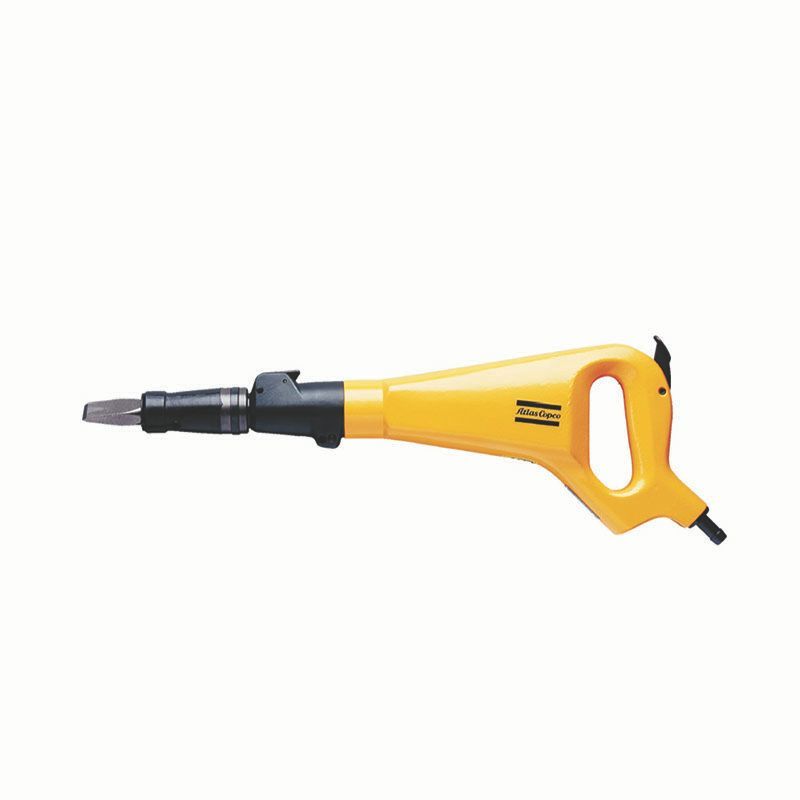

RRD57?11 | Chipping Hammer, 6.9 ft lbs
RRD series are light, quiet and have a long service life. They have light alloy tool casings, very low vibration and noise levels, vibration damping in both hand grips, and piped away exhaust.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8425 1103 20 | RRD57?11 | Chipping Hammer, 6.9 ft lbsRRD57?11
Price on request
Details
Product information
Overview
Atlas Copco 8425 1103 20
Atlas Copco Chipping Hammer, 3.6 Stroke Length, 20.1 Air Consumption (Cfm)
Stroke Length: 3.6Weight (lbs): 7.5
Max Air Consumption (cfm): 20.1
Air Inlet (NPT): special
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| pistondia | 28/18 mm |
| rechosesize | 12.5 mm |
| stroke | 92 mm |
| weight | 7.5 lb |
| blows | 31 Hz |
| dampening | Vibration-damped |
| energyperblow | 6.9 ft-lb |
| airconsumption | 9.5 l/s |
| airinletthreadbsp | special |
| soundpower | 107 dB(A) |
| soundpressure | 96 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-10 |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-4 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-4 |
| MPN | RRD57?11 |
| Features & Benefits | |
| Vibration damped | |
| Handle in light alloy | |
| High power-to-weight ratio | |
| Reduced exposure to vibration | |
