Atlas Copco8425 1104 15

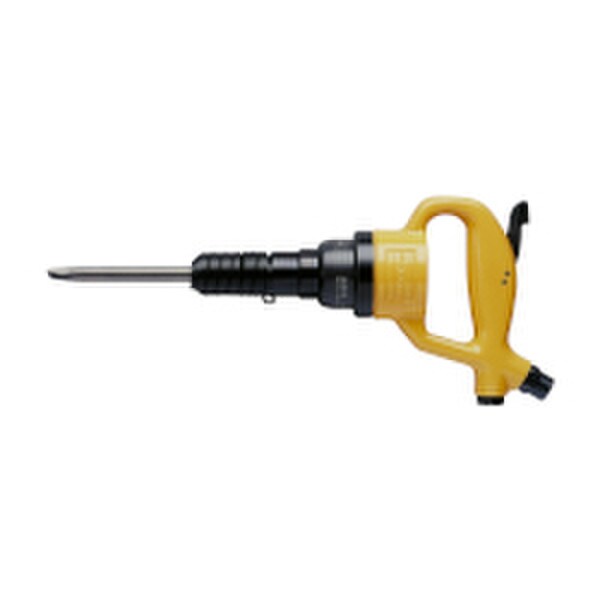

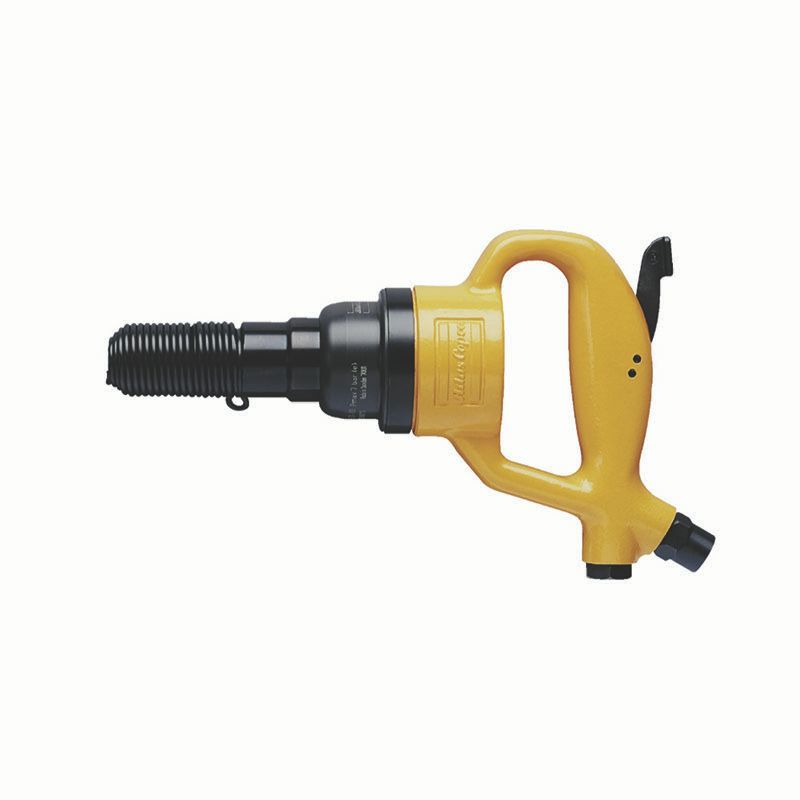

RRF31?01 | Chipping Hammer, 3.2 ft lbs
RRF series have a sturdy D-handle in light metal alloy for a high power-toweight ratio and steady grip. The compact, vibration-controlled design offers good accessibility and ease of use.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8425 1104 15 | RRF31?01 | Chipping Hammer, 3.2 ft lbsRRF31?01
Price on request
Details
Product information
Overview
Atlas Copco 8425 1104 15
Atlas Copco Chipping Hammer, 1.7 Stroke Length, 15.9 Air Consumption (Cfm)
Stroke Length: 1.7Weight (lbs): 5.3
Max Air Consumption (cfm): 15.9
Air Inlet (NPT): 3/8
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| pistondia | 22 mm |
| rechosesize | 10 mm |
| stroke | 43 mm |
| weight | 5.3 lb |
| blows | 38 Hz |
| dampening | Vibration-damped |
| energyperblow | 3.2 ft-lb |
| airconsumption | 7.5 l/s |
| airinletthreadbsp | 3/8 |
| soundpower | 105 dB(A) |
| soundpressure | 94 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-10 |
| vibrationuncertainty | 1.6 m/s² |
| vibrationvalue | 5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-4 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-4 |
| MPN | RRF31?01 |
| Features & Benefits | |
| Vibration damped | |
| Handle in light alloy | |
| High power-to-weight ratio | |
| Reduced exposure to vibration | |
