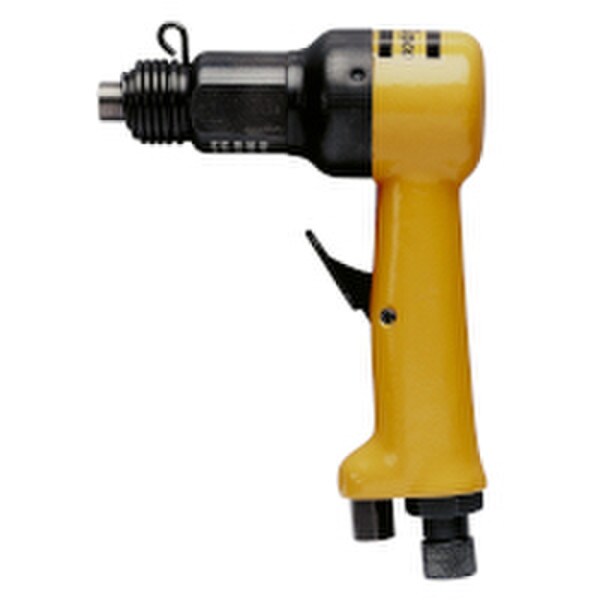

Atlas CopcoRRN11P-02
8426 1101 13 | 1.5 ft lb Riveting Hammer, 66 hz blows, 1.6 in. stroke, 10.2 mm short shank
Riveting Hammer
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
RRN11P-02 | 8426 1101 13 | 1.5 ft lb Riveting Hammer, 66 hz blows, 1.6 in. stroke, 10.2 mm short shank8426 1101 13
Price on request
Details
Product information
Overview
Atlas Copco 8426 1101 13
Atlas Copco Riveting Hammer, 3960 Blows Hz, 7.2 Air Consumption (Cfm)
Blows per minute: 3960Piston Diameter: 0.6
Weight (lbs): 2.6
Max Air Consumption (cfm): 7.2
Air Inlet (NPT): 1/8
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| pistondia | 15 mm |
| rechosesize | 6.3 mm |
| rivetsetshank | 10.2 mm |
| stroke | 40 mm |
| weight | 2.6 lb |
| airframeref | 2X |
| blows | 3960 per-min |
| dampening | Conventional |
| energyperblow | 1.5 ft-lb |
| operation | Trigger start |
| airconsumption | 3.4 l/s |
| airinletthreadbsp | 1/8 |
| maxworkingpressure | 100 psi |
| soundpower | 109 dB(A) |
| soundpressure | 98 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-10 |
| vibrationuncertainty | 1.6 m/s² |
| vibrationvalue | 4 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-4 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-4 |
| MPN | 8426 1101 13 |
| Features & Benefits | |
| 10.2 mm Short Shank | |
| 1.6 in stroke | |
| 66 hz blows | |
| For use in factory processing atmospheres | |
| 10.2 mm Short Shank,1.6 in stroke,66 hz blows,For use in factory processing atmospheres | |
