Atlas Copco8426 1110 47

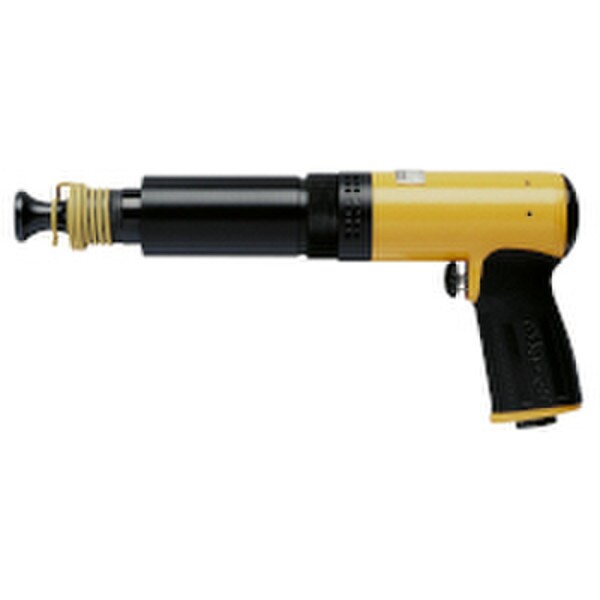

Riveting Hammer, 11.8 ft lbs
Vibration-damped Riveting Hammer
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.

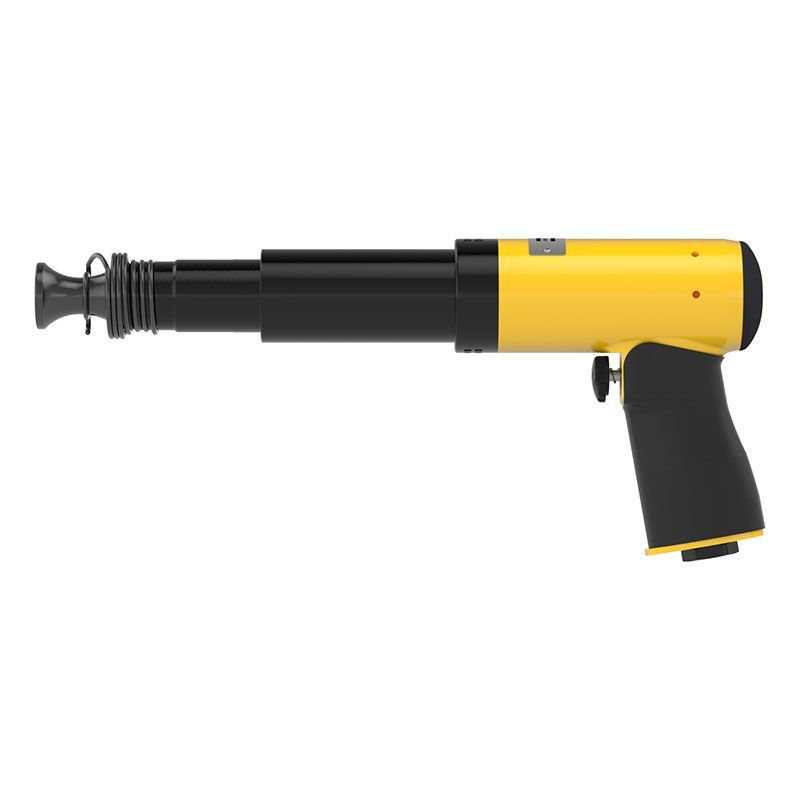

8426 1110 47 | Riveting Hammer, 11.8 ft lbs8426 1110 47
Price on request
Details
Product information
Overview
Atlas Copco 8426 1110 47
Atlas Copco Riveting Hammer, 1200 Blows Hz, 28 Air Consumption (Cfm)
Blows per minute: 1200Piston Diameter: 0.7
Weight (lbs): 4.6
Max Air Consumption (cfm): 28
Air Inlet (NPT): 1/4
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| pistondia | 19 mm |
| rechosesize | 10 mm |
| rivetsetshank | 12.7 mm |
| stroke | 153 mm |
| weight | 4.6 lb |
| airframeref | 7XB |
| blows | 1200 per-min |
| dampening | Vibration-damped |
| energyperblow | 11.8 ft-lb |
| operation | Push start |
| airconsumption | 13 l/s |
| airinletthreadbsp | 1/4 |
| maxworkingpressure | 100 psi |
| soundpower | 104 dB(A) |
| soundpressure | 93 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-10 |
| vibrationuncertainty | 1.1 m/s² |
| vibrationvalue | 4.4 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-4 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-4 |
| MPN | 8426 1110 47 |
| Features & Benefits | |
| Push Start | |
| 6 in stroke | |
| 20 hz blows | |
| For use in factory processing atmospheres | |
