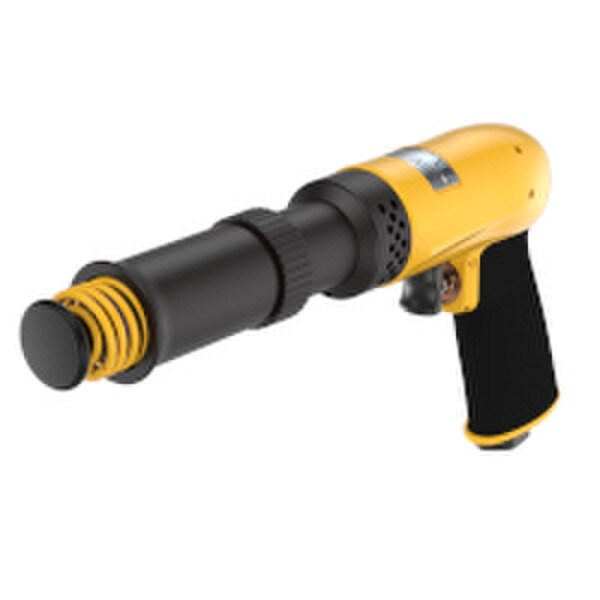

Atlas CopcoRRH08P
8426 1111 09 | RRH08P, Riveting Hammer, 5.9 ft lbs
Vibration-damped Riveting Hammer
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
RRH08P | 8426 1111 09 | RRH08P, Riveting Hammer, 5.9 ft lbs8426 1111 09
Price on request
Details
Product information
Overview
Atlas Copco 8426 1111 09
Atlas Copco Riveting Hammer, 1440 Blows Hz, 21 Air Consumption (Cfm)
Blows per minute: 1440Piston Diameter: 0.6
Weight (lbs): 3
Max Air Consumption (cfm): 21
Air Inlet (NPT): 1/4
Application: For use in factory processing atmospheres.
| Technical Specifications | |
|---|---|
| pistondia | 15 mm |
| rechosesize | 10 mm |
| rivetsetshank | 10.2 mm |
| stroke | 137 mm |
| weight | 3 lb |
| airframeref | 4X |
| blows | 1440 per-min |
| dampening | Vibration-damped |
| energyperblow | 5.9 ft-lb |
| operation | Push start |
| airconsumption | 10 l/s |
| airinletthreadbsp | 1/4 |
| maxworkingpressure | 100 psi |
| soundpower | 102 dB(A) |
| soundpressure | 91 dB(A) |
| soundstandard | ISO15744 |
| sounduncertainty | 3 dB(A) |
| vibrationstandard | ISO28927-10 |
| vibrationuncertainty | - m/s² |
| vibrationvalue | <2.5 m/s² |
| eaccertified | Yes |
| eulegislation | 2006/42/EC |
| eustandard | ISO 11148-4 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | ISO 11148-4 |
| MPN | 8426 1111 09 |
| Features & Benefits | |
| Push Start | |
| 5.4 in stroke | |
| 24 hz blows | |
| For use in factory processing atmospheres | |
| Push Start,5.4 in stroke,24 hz blows,For use in factory processing atmospheres | |
