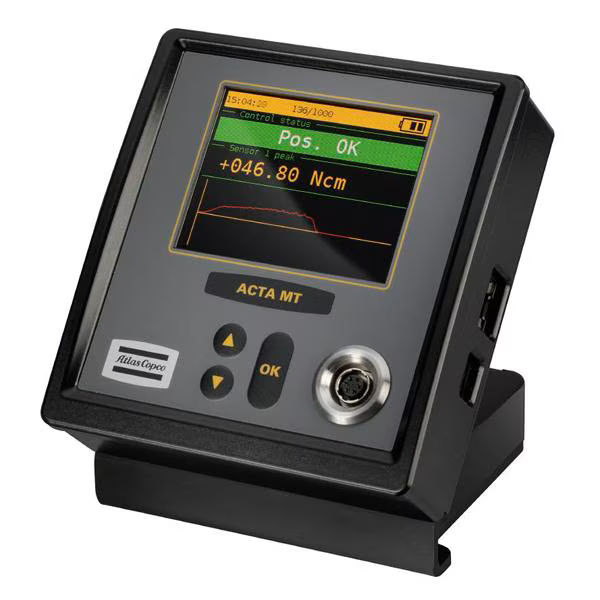

ACTA MT4 Torque analyzers

The new battery powered ACTA MT4 torque analyzer is one of the most compact and flexible piece of torque measurement equipment on the market. It enables you to check torque with very high precision in low-torque assembly applications such as electronics and watch manufacturing.

Models and pricing below
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Documents1 file

Models Available

33 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

ProductDrive sizeModelMax Torque (Ncm)PriceQty
8432 0820 108432 0820 10 | Manual screwdriver torque transducer, 1 cNm, 3mm3mm8432 0820 1011View details
8432 0820 118432 0820 11 | Manual screwdriver torque transducer, 2 cNm, 3mm3mm8432 0820 1121View details
8432 0820 128432 0820 12 | Manual screwdriver torque transducer, 5 cNm, 3mm3mm8432 0820 1251View details
8432 0820 138432 0820 13 | Manual screwdriver torque transducer, 10 cNm, 3mm3mm8432 0820 13101View details
8432 0820 148432 0820 14 | Manual screwdriver torque transducer, 20 cNm, 1/4'' hex1/4'' hex8432 0820 14201View details
8432 0820 158432 0820 15 | Manual screwdriver torque transducer, 50 cNm, 1/4'' hex1/4'' hex8432 0820 15501View details
8432 0820 168432 0820 16 | Manual screwdriver torque transducer, 100 cNm, 1/4'' hex1/4'' hex8432 0820 161001View details
8432 0820 178432 0820 17 | Manual screwdriver torque transducer, 200 cNm, 1/4'' hex1/4'' hex8432 0820 172001View details
8432 0820 188432 0820 18 | MT TS 13mm——1View details
8432 0820 198432 0820 19 | MT TS 23mm——1View details
8432 0820 208432 0820 20 | Stationary reaction torque transducer, 5 cNm, 3mm3mm8432 0820 2051View details
8432 0820 218432 0820 21 | Stationary reaction torque transducer, 10 cNm, 3mm3mm8432 0820 21101View details
8432 0820 228432 0820 22 | Stationary reaction torque transducer, 20 cNm, 3mm3mm8432 0820 22201View details
8432 0820 238432 0820 23 | Stationary reaction torque transducer, 50 cNm, 1/4'' hex1/4'' hex8432 0820 23501View details
8432 0820 248432 0820 24 | Stationary reaction torque transducer, 100 cNm, 1/4'' hex1/4'' hex8432 0820 241001View details
8432 0820 258432 0820 25 | Stationary reaction torque transducer, 200 cNm, 1/4'' hex1/4'' hex8432 0820 252001View details
8432 0820 298432 0820 29 | MT TR 23mm——1View details
8432 0820 308432 0820 30 | MT TR 53mm——1View details
8432 0820 318432 0820 31 | MT TR 105mm——1View details
8432 0820 328432 0820 32 | MT TR 205mm——1View details
8432 0820 338432 0820 33 | MT TR 501/4''——1View details
8432 0820 348432 0820 34 | MT TR 1001/4''——1View details
8432 0820 358432 0820 35 | MT TR 2001/4''——1View details
8432 0820 368432 0820 36 | MT TR 5001/4''——1View details
8432 0820 418432 0820 41 | MT TRA 23mm——1View details
8432 0820 428432 0820 42 | In-line rotary torque and angle transducer, 5 cNm, 1/4'' hex1/4'' hex8432 0820 4251View details
8432 0820 438432 0820 43 | In-line rotary torque and angle transducer, 10 cNm, 1/4'' hex1/4'' hex8432 0820 43101View details
8432 0820 448432 0820 44 | In-line rotary torque and angle transducer, 20 cNm, 1/4'' hex1/4'' hex8432 0820 44201View details
8432 0820 458432 0820 45 | In-line rotary torque and angle transducer, 50 cNm, 1/4'' hex1/4'' hex8432 0820 45501View details
8432 0820 468432 0820 46 | In-line rotary torque and angle transducer, 100 cNm, 1/4'' hex1/4'' hex8432 0820 461001View details
8432 0820 478432 0820 47 | In-line rotary torque and angle transducer, 200 cNm, 1/4'' hex1/4'' hex8432 0820 472001View details
8432 0820 488432 0820 48 | In-line rotary torque and angle transducer, 500 cNm, 1/4'' hex1/4'' hex8432 0820 485001View details
8432 0820 528432 0820 52 | Stationary reaction torque transducer, 500 cNm, 1/4'' hex1/4'' hex8432 0820 525001View details

Details

Product information

Overview

The ACTA MT4 connects to a PC via USB, RS232 and Ethernet, ensuring that the data is stored in the right place.
Use stored data to create documentation that will minimize human error, eliminate paper handling and fulfill the requirements of external audits. Data reports can be tailored to customer request. The export function opens up endless opportunities such as using configurable Excel templates for statistics and analysis.
