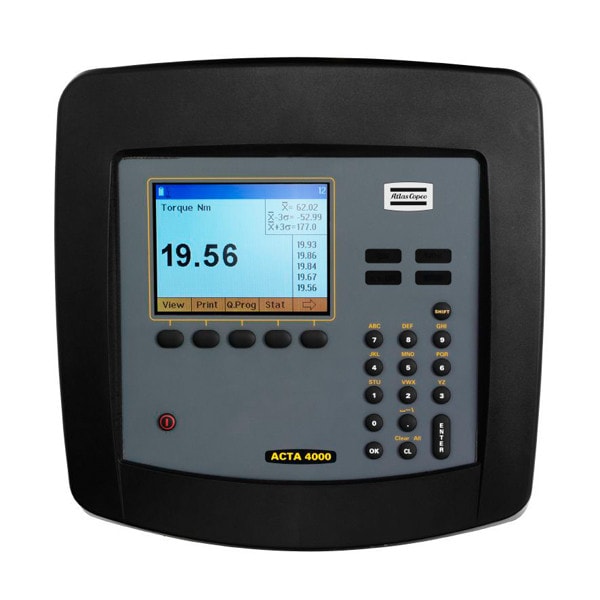

ACTA 4000

Atlas Copco's ACTA 4000 provides you with a complete tool database in which you have easy access to all the information you need regarding torque measurement and analysis.

Models and pricing below

Documents1 file

PDFAtlas Copco ACTA 4000.pdf (PDF)Open

Models Available

40 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	capacity	capacityintervalmax	length	Qty
8059 0942 058059 0942 05 \| IRTT-B 5-I06, IRTT-B Torque Transducer, 4 ft lbs	5 Nm	5 Nm	115.8 mm	1	View details
8059 0942 078059 0942 07 \| IRTT-B 5-06, IRTT-B Torque Transducer, 4 ft lbs	5 Nm	5 Nm	71.5 mm	1	View details
8059 0942 108059 0942 10 \| IRTT-B 20-I06, IRTT-B Torque Transducer, 15 ft lbs	20 Nm	20 Nm	115.8 mm	1	View details
8059 0942 158059 0942 15 \| IRTT-B 20-06, IRTT-B Torque Transducer, 15 ft lbs	20 Nm	20 Nm	71.5 mm	1	View details
8059 0942 208059 0942 20 \| IRTT-B 25 -10, IRTT-B Torque Transducer, 18 ft lbs	25 Nm	25 Nm	76.1 mm	1	View details
8059 0942 258059 0942 25 \| IRTT-B 75-10, IRTT-B Torque Transducer, 55 ft lbs	75 Nm	75 Nm	76.1 mm	1	View details
8059 0942 308059 0942 30 \| IRTT-B 180-13, IRTT-B Torque Transducer, 133 ft lbs	180 Nm	180 Nm	87 mm	1	View details
8059 0942 358059 0942 35 \| IRTT-B 500-20, IRTT-B Torque Transducer, 369 ft lbs	500 Nm	500 Nm	106 mm	1	View details
8059 0942 408059 0942 40 \| IRTT-B 750-25, IRTT-B Torque Transducer, 553 ft lbs	750 Nm	750 Nm	125 mm	1	View details
8059 0942 458059 0942 45 \| IRTT-B 1400-25, IRTT-B Torque Transducer, 1033 ft lbs	1400 Nm	1400 Nm	125 mm	1	View details
8059 0942 528059 0942 52 \| IRTT-B 3000-38, IRTT-B Torque Transducer, 2200 ft lbs	3000 Nm	3000 Nm	165 mm	1	View details
8059 0942 568059 0942 56 \| IRTT-B 5000-38, IRTT-B Torque Transducer, 3685 ft lbs	5000 Nm	5000 Nm	165 mm	1	View details
8059 0943 018059 0943 01 \| IRTT-B-2A-I06, IRTT-B Torque/Angle Transducer, 1.5 ft lbs	2 Nm	2 Nm	115.8 mm	1	View details
8059 0943 068059 0943 06 \| IRTT-B 5A-I06, IRTT-B Torque/Angle Transducer, 4 ft lbs	5 Nm	5 Nm	115.8 mm	1	View details
8059 0943 088059 0943 08 \| IRTT-B 5A-06, IRTT-B Torque/Angle Transducer, 4 ft lbs	5 Nm	5 Nm	71.5 mm	1	View details
8059 0943 118059 0943 11 \| IRTT-B 20A-I06, IRTT-B Torque/Angle Transducer, 15 ft lbs	20 Nm	20 Nm	115.8 mm	1	View details
8059 0943 168059 0943 16 \| IRTT-B 20A-06, IRTT-B Torque/Angle Transducer, 15 ft lbs	20 Nm	20 Nm	71.5 mm	1	View details
8059 0943 218059 0943 21 \| IRTT-B 25A-10, IRTT-B Torque/Angle Transducer, 18 ft lbs	25 Nm	25 Nm	76.1 mm	1	View details
8059 0943 268059 0943 26 \| IRTT-B 75A-10, IRTT-B Torque/Angle Transducer, 55 ft lbs	75 Nm	75 Nm	76 mm	1	View details
8059 0943 318059 0943 31 \| IRTT-B 180A-13, IRTT-B Torque/Angle Transducer, 133 ft lbs	180 Nm	180 Nm	87 mm	1	View details
8059 0943 368059 0943 36 \| IRTT-B 500A-20, IRTT-B Torque/Angle Transducer, 369 ft lbs	500 Nm	500 Nm	106 mm	1	View details
8059 0943 418059 0943 41 \| IRTT-B 750A-25, IRTT-B Torque/Angle Transducer, 553 ft lbs	750 Nm	750 Nm	125 mm	1	View details
8059 0943 468059 0943 46 \| IRTT-B 1400A-25, IRTT-B Torque/Angle Transducer, 1033 ft lbs	1400 Nm	1400 Nm	125 mm	1	View details
8059 0943 528059 0943 52 \| IRTT-B 3000A-38, IRTT-B Torque/Angle Transducer, 2200 ft lbs	3000 Nm	3000 Nm	165 mm	1	View details
8059 0943 568059 0943 56 \| IRTT-B 5000A-38, IRTT-B Torque/Angle Transducer, 3685 ft lbs	5000 Nm	5000 Nm	165 mm	1	View details
8059 0943 968059 0943 96 \| IRTT-B 1A-I06, IRTT-B Torque/Angle Transducer, 0.8 ft lbs	1 Nm	1 Nm	115.8 mm	1	View details
8059 0946 038059 0946 03 \| SRTT-B 0.5-13, SRTT-B Transducer, 0.37 ft lbs	0.5 Nm	0.5 Nm	87.4 mm	1	View details
8059 0946 098059 0946 09 \| SRTT-B 2-13, SRTT-B Transducer, 1.47 ft lbs	2 Nm	2 Nm	87.4 mm	1	View details
8059 0946 158059 0946 15 \| SRTT-B 5-13, SRTT-B Transducer, 3.69 ft lbs	5 Nm	5 Nm	113.9 mm	1	View details
8059 0946 288059 0946 28 \| SRTT-B 25-36, SRTT-B Transducer, 18.40 ft lbs	25 Nm	25 Nm	113.9 mm	1	View details
8059 0946 368059 0946 36 \| SRTT-B 50-36, SRTT-B Transducer, 36.88 ft lbs	50 Nm	50 Nm	113.9 mm	1	View details
8059 0946 458059 0946 45 \| SRTT-B 100-36, SRTT-B Transducer, 73.76 ft lbs	100 Nm	100 Nm	113.9 mm	1	View details
8059 0946 548059 0946 54 \| SRTT-B 250-36, SRTT-B Transducer, 184.40 ft lbs	250 Nm	250 Nm	113.9 mm	1	View details
8059 0946 638059 0946 63 \| SRTT-B 500-50, SRTT-B Transducer, 368.78 ft lbs	500 Nm	500 Nm	156.4 mm	1	View details
8059 0946 758059 0946 75 \| SRTT-B 1000-50, SRTT-B Transducer, 737.60 ft lbs	1000 Nm	1000 Nm	156.4 mm	1	View details
8059 0946 848059 0946 84 \| SRTT-B 2000-50, SRTT-B Transducer, 1475.00 ft lbs	2000 Nm	2000 Nm	156.4 mm	1	View details
8092 1149 078092 1149 07 \| B to QC	—	—	—	1	View details
8092 1149 188092 1149 18 \| B to AA	—	—	—	1	View details
8092 1149 268092 1149 26 \| QC to AA	—	—	—	1	View details
8092 1177 408092 1177 40 \| ACTA 4000 AA ANALYZE	—	—	—	1	View details

Recommended Accessories

5 items

Add-on accessories that can be purchased alongside this product.

Product	capacity	capacityintervalmax	drivesquare	Qty
8092 1164 138092 1164 13 \| QRTT 20 Nm kit, QRTT Transducer Kit, 15 ft lbs	20 Nm	20 Nm	3/8 in	1	View details
8092 1164 188092 1164 18 \| QRTT 75 Nm kit, QRTT Transducer Kit, 55 ft lbs	75 Nm	75 Nm	3/8 in	1	View details
8092 1164 238092 1164 23 \| QRTT 200 Nm kit, QRTT Transducer Kit, 150 ft lbs	200 Nm	200 Nm	1/2 in	1	View details
8092 1164 288092 1164 28 \| QRTT 500 Nm kit, QRTT Transducer Kit, 369 ft lbs	500 Nm	500 Nm	3/4 in	1	View details
8092 1164 338092 1164 33 \| QRTT 1000 Nm kit, QRTT Transducer Kit, 750 ft lbs	1000 Nm	1000 Nm	1 in	1	View details

Overview

All data stored per tool in one place!
ACTA 4000 comes in three different models and can be upgraded depending on your needs:
B – Basic
Measures torque and angle. You can calibrate your tools and check basic statistics.
QC – Quality Control
Calculates all advanced statistics, including SPC, and has a database of up to 1000 tools/joints. This database includes information regarding tool programming, tightening and events.
AA – Advanced Analysis
This is the complete quality system. It offers all the above and shows an advanced tightening trace for joint analysis.

Hardware characteristic

The ACTA 4000 has color screen.

USB port, eight times more memory.

Ethernet port and new improved ergonomic advantages.

Battery time is 8 hours.
