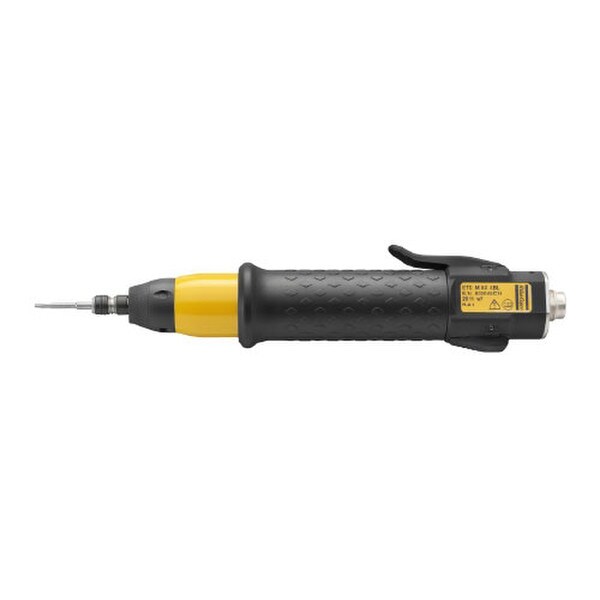

8432 0815 18 | ETD M 08 ABL V2 | ETD M 08L V2, Inline MicroTorque Electric Screwdriver, 2 - 8 cNm, 1350 rpm, HM 4 mm
Overview
Introducing the Atlas Copco ETD M 08 ABL V2 Inline MicroTorque Electric Screwdriver, a cutting-edge tool designed to revolutionize your assembly operations with its exceptional precision and efficiency. Part of the renowned Atlas Copco Focus 400 MicroTorque Tools series, this electric screwdriver combines advanced technology with ergonomic design to deliver outstanding quality and productivity.
- Torque Range: 2 - 8 cNm
- Speed: 1350 rpm
- Drive: HM 4 mm
- Weight: 0.18 kg
- Length: 0.7 m
- Height: 0.1 m
Features & Benefits
- High Accuracy Transducerized Tool: Equipped with a high-accuracy transducer, the ETD M 08 ABL V2 ensures precise torque and angle monitoring, making it ideal for critical applications that demand utmost accuracy.
- Torque and angle monitoring for error proofing customized to any process.
- Advanced torque seating monitoring ensures final and clamping torque
- Advanced seating control tightening strategy that eliminates floating screws.
Technical Specifications
SKU: 8432 0815 18
length
185 mm
overallwidth
27 mm
weight
0.66 lb
bitdrive
Hm 4mm
modeltype
Straight
shutoffsystem
Current control
torquerangemax
0.7 in-lb
torquerangemin
0.18 in-lb
torquescatter3s
≤ 7.5 %
freespeed
1350 r/min
speedrangemax
1350 r/min
soundpressure
<70 dB(A)
soundstandard
ISO15744
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
ccccertified
No
cqcchina
No
eaccertified
Yes
eulegislation
(EU) 2023/1230 (MR)
eustandard
EN 55014-1:2017 EN55014-2:2015 EN 61000-3-2:2014\r\nEN 61000-3-3:2013 EN 61000-6-2:2005 EN\r\n62841-1 EN 62841-2-2
kccertified
Yes
kcid
MSIP-REI-50A-MICROTORQUE
ukregulations
S.I. 2008/1597
ukstandard
EN 55014-1:2017 EN55014-2:2015 EN 61000-3-2:2014\r\nEN 61000-3-3:2013 EN 61000-6-2:2005 EN\r\n62841-1 EN 62841-2-2
weee
5 - Small equipment <50cm
ingressprotectionrating
IP20
operatingtemperaturemax
104 F
operatingtemperaturemin
41 F
storagetemperaturemax
140 F
storagetemperaturemin
-13 F
motorpower
15 W
motorvoltagetype
d.c.
motorvoltage
24 V
Technical Documents
AtlasCopcoMT400SeriesHandheldScrewdriversBrochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the ETD M 08 ABL V2?
What type of application is the ETD M 08 ABL V2 best suited for?
Electric Screwdrivers like the ETD M 08 ABL V2, are most commonly used for medium to heavy assembly applications where precise torque control is required. The ETD M 08 ABL V2 is an Inline model.
How do I set the torque on the ETD M 08 ABL V2?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the ETD M 08 ABL V2 have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
