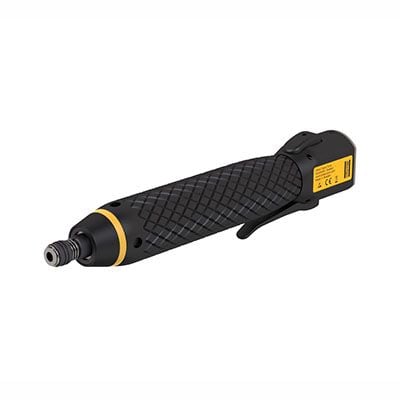

8432 0815 21 | ETD M 20 ABL V2 | ETD M 20L V2, Inline MicroTorque Electric Screwdriver, 5 - 20 cNm, 900 rpm, HM 4 mm
Overview
Introducing the Atlas Copco ETD M 20 ABL V2 | ETD M 20L V2, Inline MicroTorque Electric Screwdriver - a revolutionary tool designed to redefine precision and productivity in your assembly operations. Engineered by industry leaders, Atlas Copco, this state-of-the-art screwdriver combines advanced features and exceptional performance to deliver outstanding quality and superior efficiency.
- Torque Range: 5 - 20 cNm
- Speed: 900 rpm
- Drive: HM 4 mm
- Weight: 0.44 lbs (0.2 kg)
- Length: 1.77 in (45 mm)
- Height: 0.1 in (3 mm)
Features & Benefits
- High Accuracy Transducerized Tool: Equipped with a high-accuracy transducer, the ETD M 20 ABL V2 | ETD M 20L V2 screwdriver ensures precise torque and angle monitoring, making it ideal for critical applications where accuracy is paramount.
- Torque and angle monitoring for error proofing customized to any process.
- Advanced torque seating monitoring ensures final and clamping torque
- Advanced seating control tightening strategy that eliminates floating screws.
Technical Specifications
SKU: 8432 0815 21
length
185 mm
overallwidth
27 mm
weight
0.66 lb
bitdrive
HM 4
modeltype
Straight
shutoffsystem
Current control
torquerangemax
2.4 in-lb
torquerangemin
0.66 in-lb
torquescatter3s
≤ 7.5 %
freespeed
900 r/min
speedrangemax
900 r/min
soundpressure
<70 dB(A)
soundstandard
ISO15744
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
ccccertified
No
cqcchina
No
eaccertified
Yes
eulegislation
(EU) 2023/1230 (MR)
eustandard
EN 55014-1:2017 EN55014-2:2015 EN 61000-3-2:2014\r\nEN 61000-3-3:2013 EN 61000-6-2:2005 EN\r\n62841-1 EN 62841-2-2
kccertified
Yes
kcid
MSIP-REI-50A-MICROTORQUE
ukregulations
S.I. 2008/1597
ukstandard
EN 55014-1:2017 EN55014-2:2015 EN 61000-3-2:2014\r\nEN 61000-3-3:2013 EN 61000-6-2:2005 EN\r\n62841-1 EN 62841-2-2
weee
5 - Small equipment <50cm
ingressprotectionrating
IP20
operatingtemperaturemax
104 F
operatingtemperaturemin
41 F
storagetemperaturemax
140 F
storagetemperaturemin
-13 F
motorpower
25 W
motorvoltagetype
d.c.
motorvoltage
24 V
Technical Documents
AtlasCopcoMT400SeriesHandheldScrewdriversBrochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the ETD M 20 ABL V2?
What type of application is the ETD M 20 ABL V2 best suited for?
Electric Screwdrivers like the ETD M 20 ABL V2, are most commonly used for medium to heavy assembly applications where precise torque control is required. The ETD M 20 ABL V2 is an Inline model.
How do I set the torque on the ETD M 20 ABL V2?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the ETD M 20 ABL V2 have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
