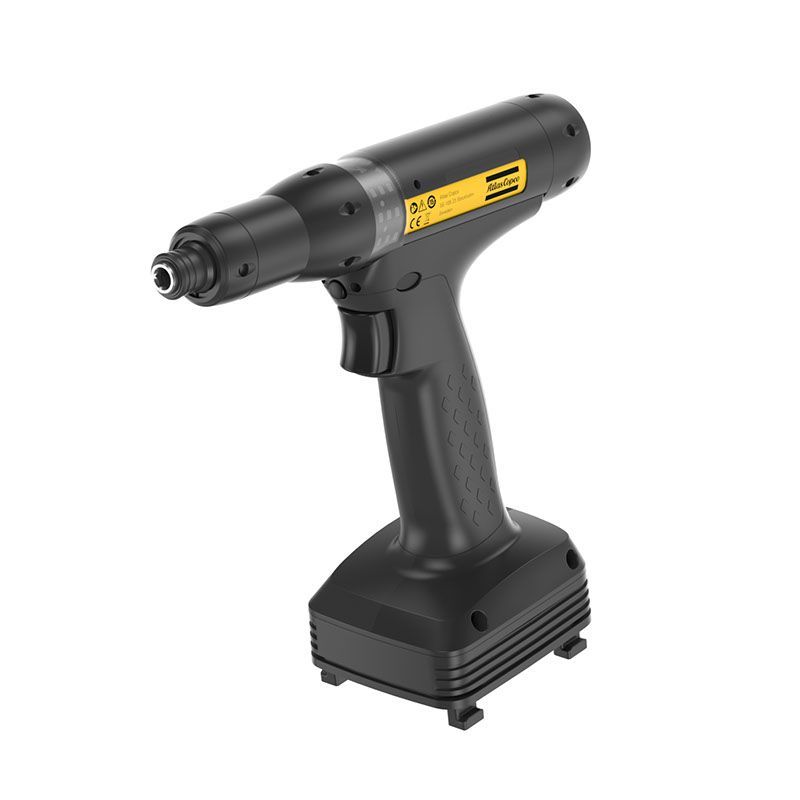

8433 3270 30 | ETP SRB31-20-10 | 18/36V Transducerized Cordless Pulse Tool, 3/8'' square, 20 Nm

(0)No Reviews yet
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable

Overview

Atlas Copco 3/8 Sq. In. 3.7 - 14.75 ft lb Pulse Tool, 1500 rpm

ETP SRB 31-20-10

The cordless Tensor SRB will change the way you plan your assembly stations. Experience low reaction, one-handed operations in an error-proof production.

Flexible

Low reaction and all strategies, from the standard 2 steps, quick step – to the more advance TurboTight and TensorPulse

Productive

New electronics and an improved motor, gives you the possibility to reach 1500 rpm boosting your productivity.

Perfect your strategies

Tensor SRB offers the possibility to use both traditional strategies and the more advanced strategies such as TurboTight and TensorPulse.

Take care of Operators

The Tensor SRB has low weight and great balance – ergonomically designed to prevent operator fatigue. The new design also guarantees the correct temperature in contact with the operator.

Benefit from intelligent batteries

The Tensor SRB is powered by our new generation of batteries and chargers. With a multi charger you have one charger for all batteries. Choose between 18v or 36v battery - without compromising the performance of speed or torque.

Note: 4211 6030 85 Power supply required to use the ETP SRB 31-20-10

Features & Benefits

  • Operator feedback and battery status via LED indicator
  • Dual antenna
  • Rapid Backup Unit (RBU) functionality
  • Rapid Backup Unit (RBU) functionality

Technical Specifications

SKU: 8433 3270 30
height
211 mm
length
212 mm
outputsize
3/8'
weight
2.535 lb
width
74 mm
modeltype
Pistol
outputtype
Square, Male
shutoffsystem
Transducer
toolfamily
SRB
torquerangemax
20 Nm
torquerangemin
5 Nm
torquescatter3s
≤ 5 %
speedrangemax
1500 r/min
soundpressure
<70 dB(A)
soundpressurepulse
75 dB(A)
soundstandard
ISO15744
sounduncertaintypulse
3 dB(A)
vibrationstandard
ISO28927-2
vibrationuncertaintypulse
1,3 m/s²
vibrationvalue
<2,5 m/s²
vibrationvaluepulse
9,5 m/s²
ccccertified
No
cmiitid
2018AJ0238
eaccertified
Yes
eulegislation
(EU) 2022/30
eustandard
EN 18031-1:2024
etlcontrolnumber
3008099
etllisted
Yes
etltext
6 - 62841-2-2
eusarvalue
0.49 W/kg
fccid
PVH 0965
icid
5325A-0965
kccertified
Yes
kcid
R-R-50A-SRB
ukregulations
S.I. 2008/1597
ukstandard
EN 18031-1:2024
weee
5 - Small equipment <50cm
motorpower
500 W
motorvoltagetype
d.c.
motorvoltage
38.1 V
battery
Li-Io 18/36 V
typeofbattery
1 Li-ion
weightinclbattery
3.638 lb
