Features & Benefits
- Unique and patented 360 degree swivel with transducer.
- Ultra-compact size improves access.
- Reduced weight means less need for fixtures
- Program selection is made directly on tool.
Technical Information
Technical Specifications
Technical Specifications
SKU: 8433 2310 02
Manufacturer Atlas Copco

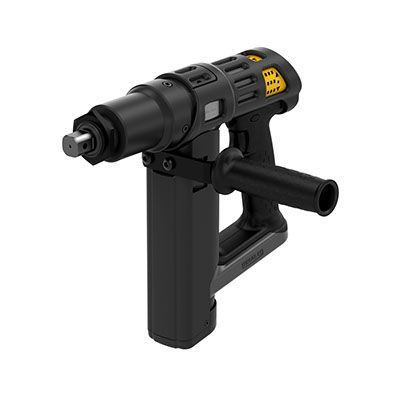

Model ETP ST101-1000-25-F
Stock CodeC
Drive size 1'' square
Drive Type 1"square
Free Speed (RPM) 99
Increments Ft Lb
Length (mm) 364
Max Free Speed (rpm) 99
Series Tensor ST REVO
Torque Range (Ft Lbs) 220 - 735
Torque Range (In Lbs) - 8851
Torque Range (Nm) 300 - 1000
Weight14.1 lbs
