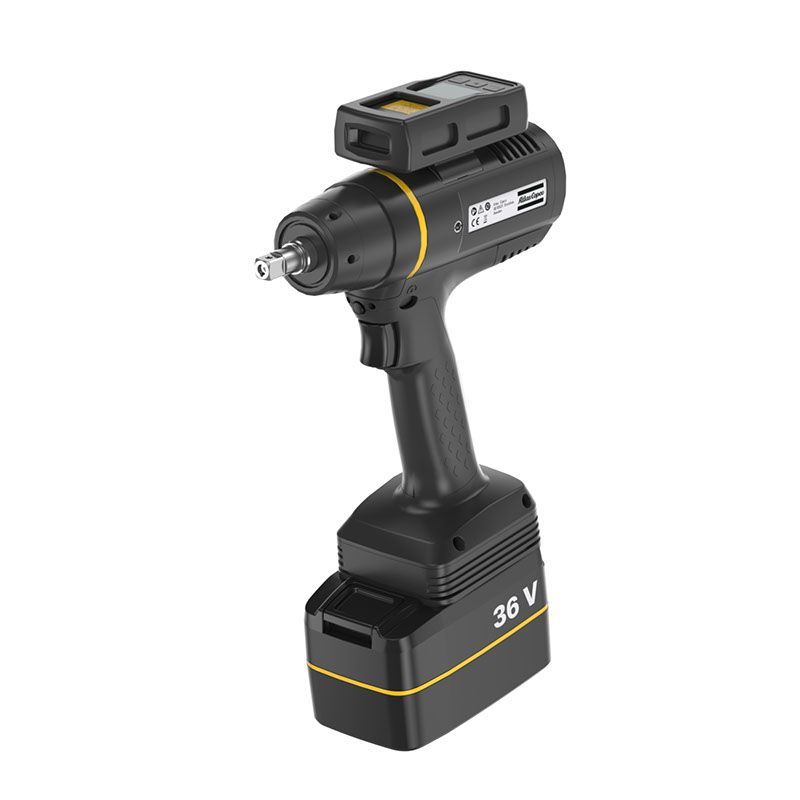

Atlas Copco 3/8 Sq. In. 8.9 - 25.8 ft lb Pulse Tool, 6000 rpm

ETP TBP 61-32-10

The TBP will change everything you thought you knew about pulse tools. TBP is a cordless tool for one-handed operations, enabling error-proof productions. And our DuraPulse technology will ensure the robustness of the TBP, making it your new favourite workhorse.

Low Vibration

The lowest vibration levels in the market means saving the operator and reducing work related costs caused by fatigue and injuries such as white fingers.

High Service Interval

Thanks to new patented technology and design, you will have longer service intervals than with traditional pulse tools. Reduced oil leakage, separation of air and oil, and a cooler tool – meaning higher performance and uptime.

High Torque Possibilities

With TorqueBoost, active cooling and advanced motor steering, the torque build up is fast and gives reduced hours per production unit.

Note: 4211 6030 85 Power supply required to use the ETP TBP 61-32-10

Features & Benefits

  • High Torque
  • DuraPulse technology with new sealing and air separator
  • Rapid Backup Unit (RBU) functionality.
  • Excellent ergonomics

Technical Specifications

SKU: 8433 3230 20
csdistance
29 mm
height
231 mm
length
195 mm
outputsize
3/8'
weight
2.93 lb
communicationtype
Bluetooth/W-LAN
light
Yes
modeltype
Pistol
outputtype
Square, Male
shutoffsystem
Transducer
toolfamily
TBP
torquerangemax
35 Nm
torquerangemin
12 Nm
torquescatter3s
≤ 7.5 %
speedrangemax
6000 r/min
speedrangemin
1000 r/min
soundpressure
78 dB(A)
soundstandard
ISO15744
sounduncertainty
3 dB(A)
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
cmiitid
2018AJ0237
eaccertified
Yes
eulegislation
(EU) 2022/30
eustandard
EN 18031-1:2024
etlcontrolnumber
3008099
etllisted
Yes
etltext
6 - 62841-2-2
eusarvalue
0.26 W/kg
fccid
PVH0965
icid
5325A-0965
kccertified
Yes
kcid
R-R-50A-TBP
ukregulations
S.I. 2008/1597
ukstandard
EN 300 328 V2.2.2
weee
5 - Small equipment <50cm
oilvolumeinfullpulseunit
6.5 ml
motorpower
350 W
motorvoltagetype
d.c.
motorvoltage
18 V
battery
Li-Io 18/36 V
typeofbattery
1 Li-ion
weightinclbattery
4.05 lb
