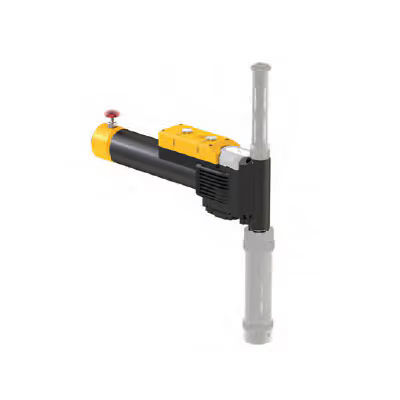

Atlas Copco PFD1500RA Series Positive Feed Drills image 1

Click the image to zoom

PFD1500RA Series Positive Feed Drills

PFD1500 is a Positive Feed Drill in Right Angle execution, which is suitable for drilling critical and close tolerance holes with medium to large diameters. This drill is approved and typically used in aerospace manufacturing applications.

Models and pricing below

Models Available

29 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	weight	Qty
8440 1500 008440 1500 00 \| Positive Feed Drill without rapid advance, 100 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 018440 1500 01 \| Positive Feed Drill without rapid advance, 140 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 028440 1500 02 \| Positive Feed Drill without rapid advance, 180 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 038440 1500 03 \| Positive Feed Drill without rapid advance, 200 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 048440 1500 04 \| Positive Feed Drill without rapid advance, 270 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 058440 1500 05 \| Positive Feed Drill without rapid advance, 360 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 068440 1500 06 \| Positive Feed Drill without rapid advance, 400 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 078440 1500 07 \| Positive Feed Drill without rapid advance, 530 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 088440 1500 08 \| Positive Feed Drill without rapid advance, 670 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 098440 1500 09 \| Positive Feed Drill without rapid advance, 700 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 108440 1500 10 \| Positive Feed Drill without rapid advance, 900 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 118440 1500 11 \| Positive Feed Drill without rapid advance, 1200 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 128440 1500 12 \| Positive Feed Drill without rapid advance, 1330 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 138440 1500 13 \| Positive Feed Drill without rapid advance, 1770 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 148440 1500 14 \| Positive Feed Drill without rapid advance, 2360 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	11.8 lb	1	View details
8440 1500 338440 1500 33 \| Positive Feed Drill with rapid advance, 38 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	12.1 lb	1	View details
8440 1500 348440 1500 34 \| Positive Feed Drill with rapid advance, 50 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	12.1 lb	1	View details
8440 1500 358440 1500 35 \| Positive Feed Drill with rapid advance, 67 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	12.1 lb	1	View details
8440 1500 368440 1500 36 \| Positive Feed Drill with rapid advance, 100 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	12.1 lb	1	View details
8440 1500 378440 1500 37 \| Positive Feed Drill with rapid advance, 140 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	12.1 lb	1	View details
8440 1500 388440 1500 38 \| Positive Feed Drill with rapid advance, 180 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	12.1 lb	1	View details
8440 1500 398440 1500 39 \| Positive Feed Drill with rapid advance, 200 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	12.1 lb	1	View details
8440 1500 408440 1500 40 \| Positive Feed Drill with rapid advance, 270 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	12.1 lb	1	View details
8440 1500 418440 1500 41 \| Positive Feed Drill with rapid advance, 360 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	12.1 lb	1	View details
8440 1500 428440 1500 42 \| Positive Feed Drill with rapid advance, 400 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	12.1 lb	1	View details
8440 1500 438440 1500 43 \| Positive Feed Drill with rapid advance, 530 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	12.1 lb	1	View details
8440 1500 448440 1500 44 \| Positive Feed Drill with rapid advance, 670 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	12.1 lb	1	View details
8440 1500 458440 1500 45 \| Positive Feed Drill with rapid advance, 700 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	12.1 lb	1	View details
8440 1500 468440 1500 46 \| Positive Feed Drill with rapid advance, 900 RPM, 1/2 Air Inlet, 2, 34 Max Air CFM	12.1 lb	1	View details

Recommended Accessories

93 items

Add-on accessories that can be purchased alongside this product.

Product	Qty
4081 0452 904081 0452 90 \| Service Kit Head part 1	1	View details
4081 0453 904081 0453 90 \| Service Kit Head part 2	1	View details
4081 0455 904081 0455 90 \| Service Kit Head part 3	1	View details
4081 0456 904081 0456 90 \| Service Kit Motor valve	1	View details
4081 0457 904081 0457 90 \| Service Kit Motor	1	View details
4081 0458 904081 0458 90 \| Service Kit Range gear	1	View details
4081 0460 904081 0460 90 \| Service Kit Spindle guard	1	View details
4082 0037 904082 0037 90 \| Service Kit Feed cassette	1	View details
4141 0004 904141 0004 90 \| Spindles	1	View details
4141 0004 914141 0004 91 \| Spindles	1	View details
4141 0004 924141 0004 92 \| Spindles	1	View details
4141 0004 934141 0004 93 \| Spindles	1	View details
4141 0004 944141 0004 94 \| Spindles	1	View details
4141 0004 954141 0004 95 \| Spindles	1	View details
4141 0032 034141 0032 03 \| Adapter-2-1-4	1	View details
4141 0032 044141 0032 04 \| Adapter-1-9-16	1	View details
4141 0032 074141 0032 07 \| Adapter-1.825	1	View details
4141 0034 914141 0034 91 \| Feed Cassettes Primary Feed IPR 0.001	1	View details
4141 0034 924141 0034 92 \| Feed Cassettes Primary Feed IPR 0.002	1	View details
4141 0034 934141 0034 93 \| Feed Cassettes Primary Feed IPR 0.003	1	View details
4141 0034 944141 0034 94 \| Feed Cassettes Primary Feed IPR 0.004	1	View details
4141 0034 954141 0034 95 \| Feed Cassettes Primary Feed IPR 0.006	1	View details
4141 0034 964141 0034 96 \| Feed Cassettes Primary Feed IPR 0.008	1	View details
4141 0043 904141 0043 90 \| Range Gear RPM 200/270/360	1	View details
4141 0043 914141 0043 91 \| Range Gear RPM 1330/1770/2360	1	View details
4141 0043 924141 0043 92 \| Range Gear RPM 100/140/180	1	View details
4141 0043 934141 0043 93 \| Range Gear RPM 670/900/1200	1	View details
4141 0043 944141 0043 94 \| Range Gear RPM 400/530/700	1	View details
4141 0043 954141 0043 95 \| Range Gear RPM 38/50/67	1	View details
4141 0224 904141 0224 90 \| Spindles	1	View details
4141 0224 914141 0224 91 \| Spindles	1	View details
4141 0224 924141 0224 92 \| Spindles	1	View details
4141 0224 934141 0224 93 \| Spindles	1	View details
4141 0224 944141 0224 94 \| Spindles	1	View details
4141 0224 954141 0224 95 \| Spindles	1	View details
4141 0250 904141 0250 90 \| Vacuum Device	1	View details
4141 0250 914141 0250 91 \| Vacuum Device	1	View details
4141 0250 924141 0250 92 \| Vacuum Device	1	View details
4141 0250 934141 0250 93 \| Vacuum Device	1	View details
4141 0250 944141 0250 94 \| Vacuum Device	1	View details
4141 0250 954141 0250 95 \| Vacuum Device	1	View details
4141 0250 964141 0250 96 \| Vacuum Device	1	View details
4141 0250 974141 0250 97 \| Vacuum Device	1	View details
4141 0250 984141 0250 98 \| Vacuum Device	1	View details
4141 0250 994141 0250 99 \| Vacuum Device	1	View details
4141 0251 904141 0251 90 \| Tool Noses	1	View details
4141 0251 914141 0251 91 \| Tool Noses	1	View details
4141 0251 924141 0251 92 \| Tool Noses	1	View details
4141 0254 004141 0254 00 \| Adapter 9/16'' to 3/8''	1	View details
4141 0261 904141 0261 90 \| Tool Noses	1	View details
4141 0261 914141 0261 91 \| Tool Noses	1	View details
4141 0261 924141 0261 92 \| Tool Noses	1	View details
4141 0274 904141 0274 90 \| Extension-1	1	View details
4141 0274 914141 0274 91 \| Extension-1-E	1	View details
4141 0282 904141 0282 90 \| Collet chuck for DA100 collets	1	View details
4141 0300 104141 0300 10 \| DA100 Collet 3/16''	1	View details
4141 0300 134141 0300 13 \| DA100 Collet 15/64''	1	View details
4141 0300 144141 0300 14 \| DA100 Collet 1/4''	1	View details
4141 0300 184141 0300 18 \| DA100 Collet 5/16''	1	View details
4141 0300 204141 0300 20 \| DA100 Collet 11/32''	1	View details
4141 0300 224141 0300 22 \| DA100 Collet 3/8''	1	View details
4141 0300 264141 0300 26 \| DA100 Collet 7/16''	1	View details
4141 0300 284141 0300 28 \| DA100 Collet 15/32''	1	View details
4141 0300 304141 0300 30 \| DA100 Collet 1/2''	1	View details
4141 0300 344141 0300 34 \| DA100 Collet 9/16''	1	View details
4141 0302 904141 0302 90 \| PFD1500 handle	1	View details
4141 0305 054141 0305 05 \| DA100 Collet 4.5 mm	1	View details
4141 0305 074141 0305 07 \| DA100 Collet 5.5 mm	1	View details
4141 0305 094141 0305 09 \| DA100 Collet 6.5 mm	1	View details
4141 0305 104141 0305 10 \| DA100 Collet 7.0 mm	1	View details
4141 0305 124141 0305 12 \| DA100 Collet 8.0 mm	1	View details
4141 0305 154141 0305 15 \| DA100 Collet 9.5 mm	1	View details
4141 0306 904141 0306 90 \| Indexer-1-9-16	1	View details
4141 0307 004141 0307 00 \| Adapter-1-9-16-2-1-4	1	View details
4141 0309 904141 0309 90 \| Rapid advance retrofit kit, incl. J-clutch	1	View details
4141 0312 904141 0312 90 \| Tool Noses	1	View details
4141 0312 914141 0312 91 \| Tool Noses	1	View details
4141 0312 924141 0312 92 \| Tool Noses	1	View details
4141 0313 904141 0313 90 \| Tool Noses	1	View details
4141 0313 914141 0313 91 \| Tool Noses	1	View details
4141 0323 904141 0323 90 \| Spindle Guard	1	View details
4141 0323 914141 0323 91 \| Spindle Guard	1	View details
4141 0323 924141 0323 92 \| Spindle Guard	1	View details
4141 0323 934141 0323 93 \| Spindle Guard	1	View details
4141 0323 944141 0323 94 \| Spindle Guard	1	View details
4141 0323 954141 0323 95 \| Spindle Guard	1	View details
4141 0330 904141 0330 90 \| Vacuum Device	1	View details
4141 0333 904141 0333 90 \| ChipLet Micro-peck 3/0.15	1	View details
4141 0333 914141 0333 91 \| ChipLet Micro-peck 3/0.20	1	View details
4141 0333 924141 0333 92 \| ChipLet Micro-peck 3/0.25	1	View details
4141 0333 934141 0333 93 \| ChipLet Micro-peck 5/0.15	1	View details
4141 0333 944141 0333 94 \| ChipLet Micro-peck 5/0.20	1	View details
4141 0333 954141 0333 95 \| ChipLet Micro-peck 5/0.25	1	View details

Overview

Features & Benefits
Aerospace Manufacturing approved
Right Angle
Aircraft Assembly

PFD1500RA Series Positive Feed Drills
