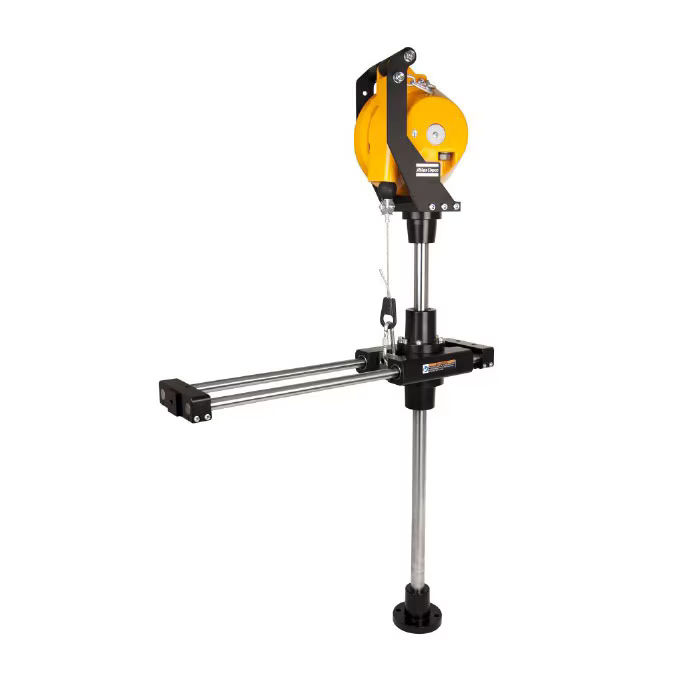

SML MK II Series Torque Arms
By mounting your assembly tool on a SML MK II torque arm you will immediately increase the productivity and reduce muscular stress from your operators.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
7 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | height | horizontalstroke | maxreachwithouttoolholder | Price | Qty | |
|---|---|---|---|---|---|---|
 8202 9003 208202 9003 20 | SML 10 MK II, Linear Torquerm, 10 Nm | 603 mm | 240 mm | 325 mm | 1 | View details | |
 8202 9003 218202 9003 21 | SML 40 MK II, Linear Torquerm, 40 Nm | 849 mm | 275 mm | 370 mm | 1 | View details | |
 8202 9003 228202 9003 22 | SML 80 MK II, Linear Torquerm, 80 Nm | 979 mm | 320 mm | 440 mm | 1 | View details | |
| 8202 9003 238202 9003 23 | SML 150 MK II, Linear Torquerm, 150 Nm | 1049 mm | 360 mm | 482 mm | 1 | View details | |
| 8202 9003 248202 9003 24 | SML 300 MK II, Linear Torquerm, 300 Nm | 1236 mm | 400 mm | 524 mm | 1 | View details | |
| 8202 9003 258202 9003 25 | SML 500 MK II, Linear Torquerm, 500 Nm | 1362 mm | 440 mm | 578 mm | 1 | View details | |
| 8202 9003 268202 9003 26 | SML 1000 MK II, Linear Torquerm, 1000 Nm | 1501 mm | 480 mm | 628 mm | 1 | View details |
Details
Product information
Overview
By mounting your assembly tool on a SML MK II torque arm you will immediately increase the productivity and reduce muscular stress from your operators. All arms are delivered with integrated balancer, 3-axis movement and the Atlas Copco interface for tool holders. The 3-axis movement allows the operator to ease the arm effortless around the workstation.
Features:
- 3-axis movement for maximum flexibility
- Strong and durable desing
- Integrated balancer to support tool and arm weight
- High torque capacity, up to 1000 Nm
- Same tool holder interface as SML T /SMS T / SMC for arms up to 150 Nm
| Features & Benefits | |
|---|---|
| Max Torque Capacity: 738 Ft Lb (1000 Nm) | |
