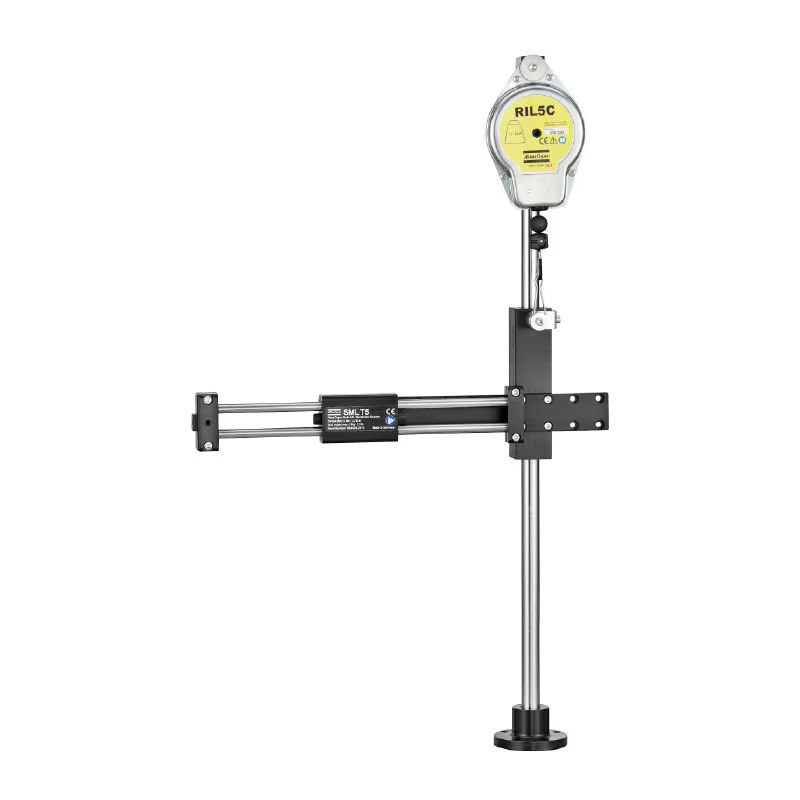

SMLT Series Torque Arms
These light-weight aluminum torque reaction arms are available in a variety of torque capacities. All torque arms feature Ingersoll Rand spring balancers for suspension and include cable or air line mounting clips.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
5 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | horizontalstroke | maxreachwithouttoolholder | minwidthwithouttoolholder | Price | Qty | |
|---|---|---|---|---|---|---|
 4390 2000 004390 2000 00 | SML T-5 | SML T-5, Torquerm, 5 Nm, 20.9'' reach | 205 mm | 530 mm | 158 mm | 1 | View details | |
| SML T-124390 2001 00 | SML T-12 | SML T-12, Torquerm, 12 Nm, 25.5'' reach | 255 mm | 648 mm | 198 mm | 1 | View details | |
| 4390 2002 004390 2002 00 | SML T-25, Torquerm, 25 Nm, 28.8'' reach | 290 mm | 715 mm | 176 mm | 1 | View details | |
| 4390 2004 004390 2004 00 | SML T-50, Torquerm, 50 Nm, 34.9'' reach | 355 mm | 887 mm | 267 mm | 1 | View details | |
 4390 2005 004390 2005 00 | SML T-100, Torquerm, 100 Nm, 36'' reach | 395 mm | 914 mm | 255 mm | 1 | View details |
Details
Product information
Overview
We offer an impressive line of ergonomic torque reaction arms that help operators work more safely and comfortably while maximizing efficiency, to ensure product quality and minimize downtime.
Features:
Features:
- Spring balancer adjusts easily and offers effortless vertical movement
- Simple, proven design for trouble-free set up and dependability
- Anodized aluminum body delivers durability in a lightweight design
- Adjustable reach for ease of use and convenience
- Standard inline clamp included for models up to 100 Nm
- Select from a varitey of universal tool mounts
- (1) Year Manufacturers Warranty
| Features & Benefits | |
|---|---|
| Max Torque Capacity: 73.8 Ft Lb (100 Nm) | |
| Max Reach: 914mm | |
| Max Weight Capacity: 13.2 lbs | |
