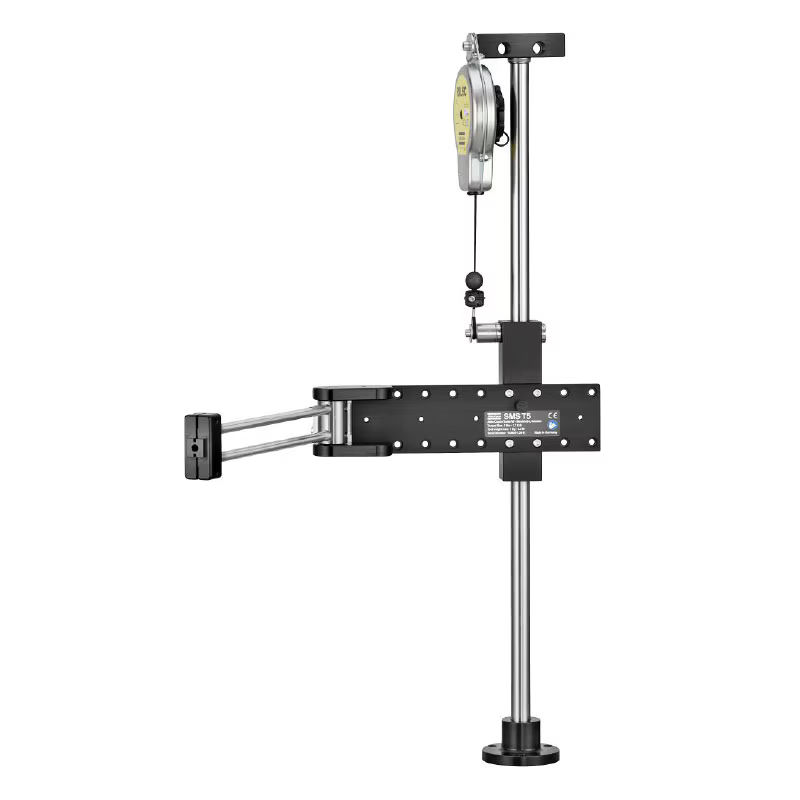

SMST Series Torque Arms
Atlas Copco swivel arms are built to handle the most demanding industrial situations. The robust design offers unmatched user-friendliness – a swivel function enables the SMS T-series to cover a wide working area.
Models Available
7 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | maxreachwithouttoolholder | toolweightmax | verticalstroke | Price | Qty | |
|---|---|---|---|---|---|---|
 4390 2000 004390 2000 00 | SML T-5 | SML T-5, Torquerm, 5 Nm, 20.9'' reach | 530 mm | 1.7 lb | 310 mm | 1 | View details | |
| SML T-124390 2001 00 | SML T-12 | SML T-12, Torquerm, 12 Nm, 25.5'' reach | 648 mm | 3.3 lb | 465 mm | 1 | View details | |
 SMS-T-54390 2006 00 | SMS-T-5 | Torque Reaction Arm, 5 Nm, 22.9'' reach | 489 mm | 0.8 kg | 270 mm | 1 | View details | |
| SMS-T-124390 2007 00 | SMS-T-12 | Torque Reaction Arm, 12 Nm, 26.9'' reach | 575 mm | 1.5 kg | 425 mm | 1 | View details | |
| SMS-T-254390 2008 00 | SMS-T-25 | Torque Reaction Arm, 25 Nm, 28.8'' reach | 621 mm | 2.5 kg | 580 mm | 1 | View details | |
| SMS-T-504390 2009 00 | SMS-T-50 | Torque Reaction Arm, 50 Nm, 32.5'' reach | 698 mm | 5 kg | 520 mm | 1 | View details | |
 SMS-T-1004390 2010 00 | SMS-T-100 | Torque Reaction Arm, 100 Nm, 36.6'' reach | 788 mm | 6 kg | 500 mm | 1 | View details |
Details
Product information
Overview
Atlas Copco swivel arms are built to handle the most demanding industrial situations. The robust design offers unmatched user-friendliness – a swivel function enables the SMS T-series to cover a wide working area. The swivel arms are equipped with ball bearings for smooth operation and an adjustable plate for adjustment of minimum and maximum working area. The swivel arms are supplied with a balancer that absorbs the weight of the arm and tool combination, thus reducing the weight for the operator. The arms minimize the reaction force of the tool to prevent hand-arm-shoulder disorders. This also improves end-product quality since there is no movement of the tool and all torque is absorbed in the joint.
Features:
- Robust construction for long life and no forces transferred to operator
- Balancer included to remove the tool and arm weight from the operator
- Available from 5 Nm up to 100 Nm
- Minimized reaction force to prevent hand-arm-shoulder disorders
- Improved end-product quality since all torque is absorbed in the joint with no movement of the tool
| Features & Benefits | |
|---|---|
| Max Torque Capacity: 73.8 Ft Lb (100 Nm) | |
| Max Reach: 930mm | |
| Max Weight Capacity: 13.2 lbs | |
