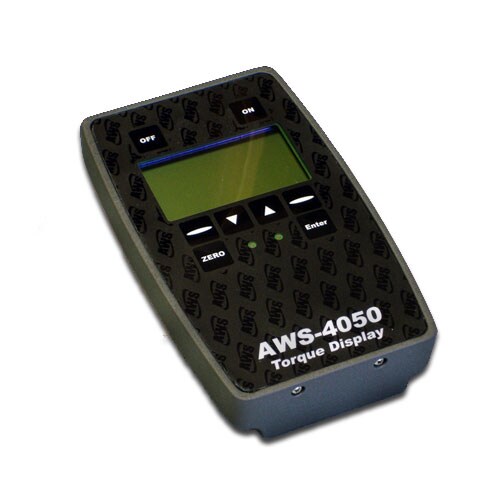

AWS 4050 Portable Series Torque Tester
The AWS-4000 is a versatile data collection system that allows the user to track multiple tools and their associated torque readings. Individual tools can be assigned an alphanumeric serial number, and each serial number can be assigned to an associated group.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
4 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Details
Product information
Overview
Features:
- Bidirectional accuracy of ±0.5% of indicated reading with AWS transducers, ±1% of indicated reading with rotary transducers.
- Eight (8) available engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm.
- 3 modes of operation: Track, Peak and 1st Peak with visual limit alarms.
- Memory storage for 8000 data points.
- RS-232 output.
- NiMH rechargeable batteries provide 8-10 hours continuous use.
- Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.
- Can be calibrated to virtually any manufacturer’s strain gauge transducers.
- Date and Time.
- Alphanumeric Serial Number Input.
- Serial Number association by Group. Transducer Ranges
| Model | Range | Drive Size | Run-Down Fixture |
| ITIO-10 | 10 Ozf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 1/4" | Included |
| ITIO-50 | 50 Ozf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 1/4" | Included |
| ITIO-50 | 50 Ozf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 1/4" | Included |
| ITIO-100 | 100 Ozf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 1/4" | Included |
| ITI-10 | 10 Lbf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 1/4" | Included |
| ITI-25 | 25 Lbf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 1/4" | Included |
| ITI-50 | 50 Lbf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 1/4" | Included |
| ITI-100 | 100 Lbf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 3/8" | Included |
| ITI-250 | 250 Lbf. In. Intellect Transducer with Bench Stand, 3/8" Dr. | 3/8" | Included |
| ITI-500 | 500 Lbf. In. Intellect Transducer with Bench Stand, 3/8" Dr. | 3/8" | Included |
| ITF-100 | 100 Lbf. Ft. Intellect Transducer with Bench Stand, 1/2" Dr. | 3/8" | Included |
| ITF-150 | 150 Lbf. Ft. Intellect Transducer with Bench Stand, 1/2" Dr. | 1/2" | Optional |
| ITF-250 | 250 Lbf. Ft. Intellect Transducer with Bench Stand, 1/2" Dr. | 1/2" | Optional |
| ITF-600 | 600 Lbf. Ft. Intellect Transducer with Bench Stand, 3/4" Dr. | 1/2" | Optional |
| ITF-1000 | 1000 Lbf. Ft. Intellect Transducer with Bench Stand, 1" Dr. | 3/4" | Optional |
| ITF-2000 | 2000 Lbf. Ft. Intellect Transducer with Bench Stand, 1" Dr. (w/o Bench Stand) | ||
| ITF-3000 | 3000 Lbf. Ft. Intellect Transducer with Bench Stand, 1 1/2" Dr. (w/o Bench Stand) | ||
| ITF-5000 | 5000 Lbf. Ft. Intellect Transducer with Bench Stand, 1 1/2" Dr. (w/o Bench Stand) |
| Features & Benefits | |
|---|---|
| Accuracy ±0.5% bidirectional | |
| Units: Oz.in., Lb.in., Lb.ft., Nm,cNm, KgfCm, gfCm, Kgfm | |
| Modes: Track, Peak, or First Peak | |
| From $1295 | |
| Units: Oz.in. | |
| Lb.in. | |
| Lb.ft. | |
| Nm | |
| cNm | |
| KgfCm | |
| gfCm | |
| Kgfm | |
| Modes: Track | |
| Peak | |
| or First Peak |
