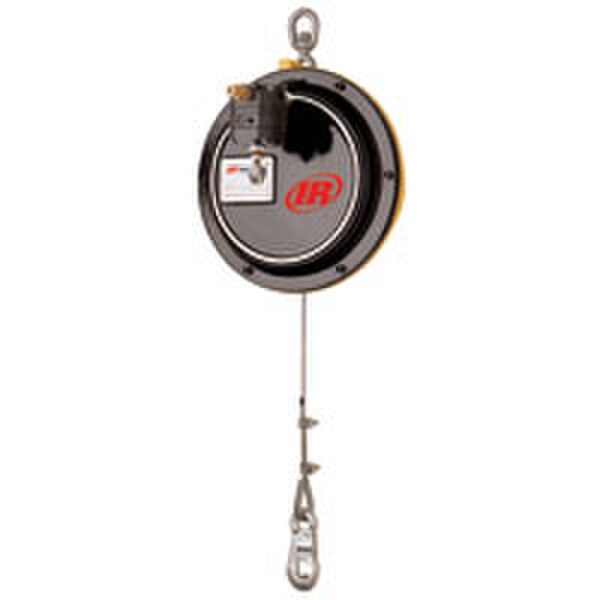

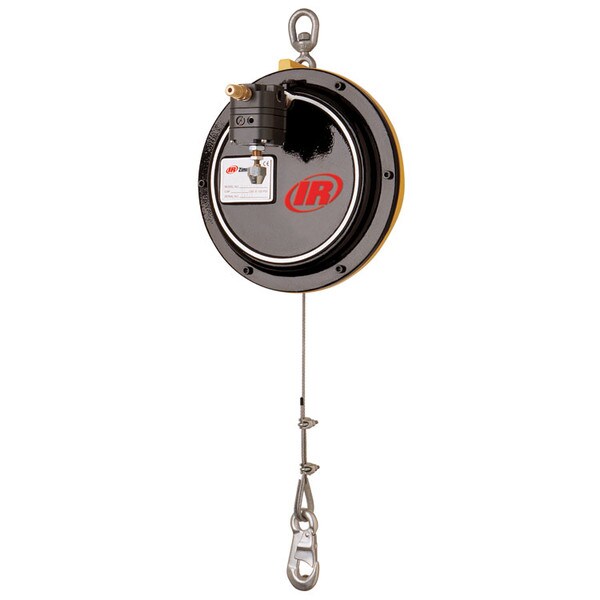

Air Balancer, single control, 50 lbs, 60 in. travel
Ingersoll Rand (BA) Series (Zimmerman) air balancers have no pendant controls and are used for single-load suspending applications; either at a fixed height or where both hands are used to manually raise, lower, and float a load.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Details
Product information
Overview
Ingersoll Rand's BAW005060 pneumatic balancer are used for single-load suspending applications, whether it's at a fixed height or using both hands to raise, lower, position and float a load. When using the BAW005060, you will feel little to no weight or resistance while manipulating the load.
The controller features a self-relieving regulator that automatically adjusts airflow to raise, lower, and suspend loads at the desired height. This ensures smooth and precise positioning with minimal effort. The regulator can also be fine-tuned to gradually lift a load out of the operator's way.
Designed for suspending and positioning constant-weight items, this system enhances efficiency and ergonomics in various applications.
| Technical Specifications | |
|---|---|
| Model | BAW005060 |
| Stat 1 | Vert Travel 5 ft |
| Stat 2 | 50 lbs Capacity |
| Type | Air Balancer |
| Manufacturer | Ingersoll Rand |
| SKU | BAW005060 |
| Stock Code | 3 |
| Weight Capacity (Lb) | 50 |
| Travel (Ft) | 5 |
| Travel (mm) | 1524 |
| Weight (lbs) | 17.64 |
| Series | BA |
| Travel (in) | 60 |
| Capacity (lbs) | 50 |
| MPN | BAW005060 |
| Features & Benefits | |
| All-steel housing, engineered plastic, aircraft grade wire rope and self-closing cast safety hook. | |
| Include precise positioning, a pre-lubricated piston chamber, intuitive speed control, and continuous duty operation. | |
| Standard emergency Chain retract brakes mean that if your load is accidentally lost, a spring-loaded centrifugal brake | |
| If the air supply is ever interrupted, the unit will maintain the load in the suspended position. | |
| Standard emergency Chain retract brakes mean that if your load is accidentally lost, a spring-loaded centrifugal brake,If the air supply is ever interrupted, the unit will maintain the load in the suspended position. | |
