Counting Controller, 1 output, Hi / Lo speed, 100-240VAC
Offering a wide selection of options from Slow Start, Batch Counting, and OK/NG Rundown. Indication based on the screw driving cycle occurring within a predefined time window.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

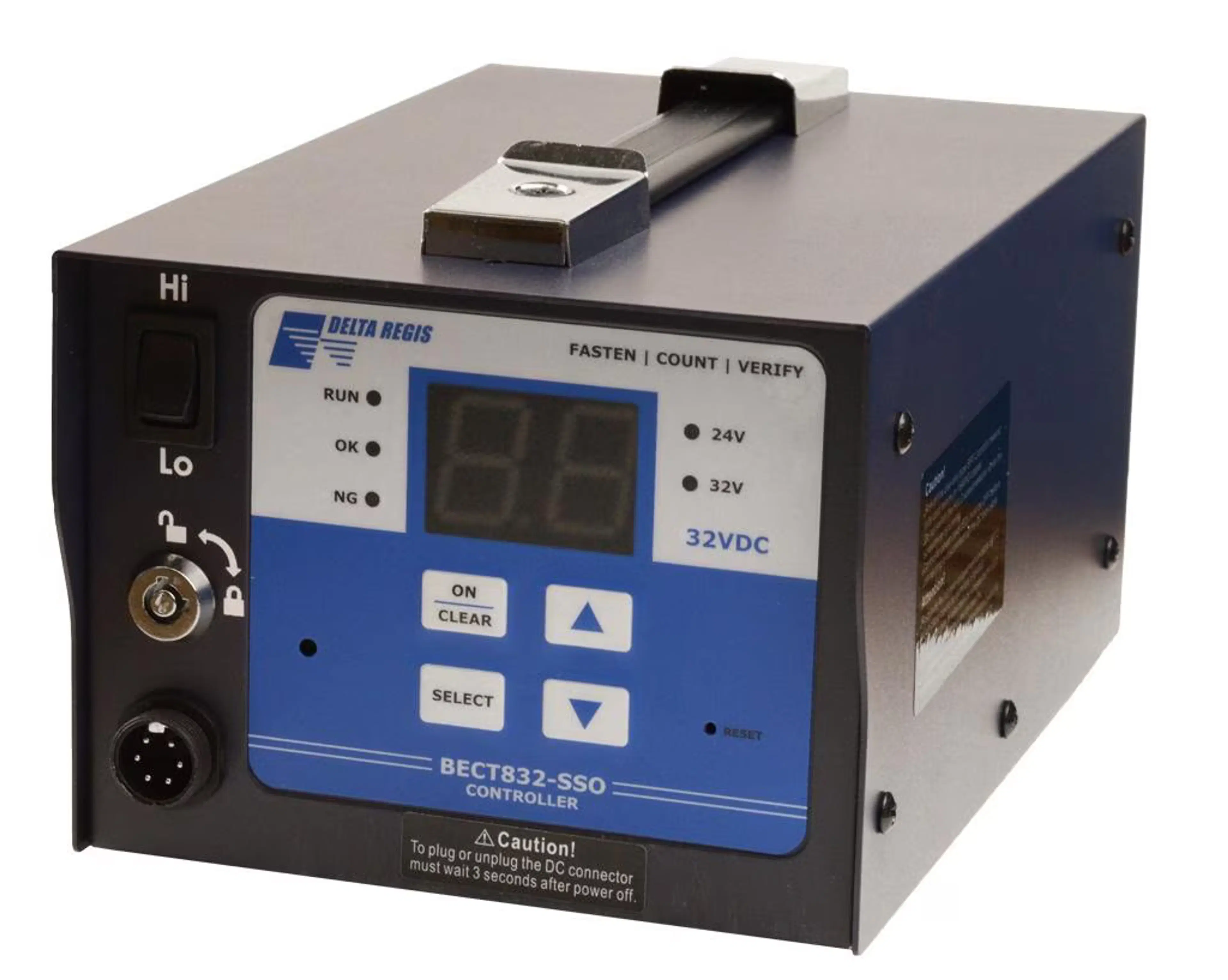

Delta Regis Counting Controller, 1 output, Hi / Lo speed, 100-240VAC
Add error-proofing to your Delta Regis brushless driver with the BECT832(N)/840(N)/940(N)-SSO-V4.0 Counting Controller. Available functions include Slow Start, Batch Counting, and OK/NG Rundown Indication based on the screwdriving cycle occurring within a predefined time window. An I/O terminal strip provides the interface to outputs for rundown OK, rundown NG, and batch complete. External switches can be wired to the input terminals for remote screwdriver enable/disable, remote start/reverse, and clear (reset batch count).
| Technical Specifications | |
|---|---|
| Input Power | 100–240VAC, 1.2A |
| Model | BECT940N-SSO-V4.0 |
| Output Peak Power | 32/24VDC, 60W |
| Manufacturer | Delta Regis |
| SKU | BECT940N-SSO-V4.0 |
| Dimensions | 200mm x 130mm x 100mm / 7.9'' x 5.1'' x 3.9'' |
| Weight (lbs) | 3.5 |
| MPN | BECT940N-SSO-V4.0 |
| Features & Benefits | |
| Selectable Slow Start Speed and Time | |
| Large LED Display of Screw Count Values | |
| Externally Accessible I/O Connections | |
| Programmable Batch Counting with Audible Buzzer indicating batch complete | |
| Programmable Time Window for comparison with actual fastening cycle time — LEDs indicate OK/NG rundown cycle | |
| Timed Auto-Reverse function for applications requiring back-out after fastening | |
| Locks to limit access to program modifications | |
| ETL / CE / RoHS Compliant | |
