Ingersoll RandBMDLN-10

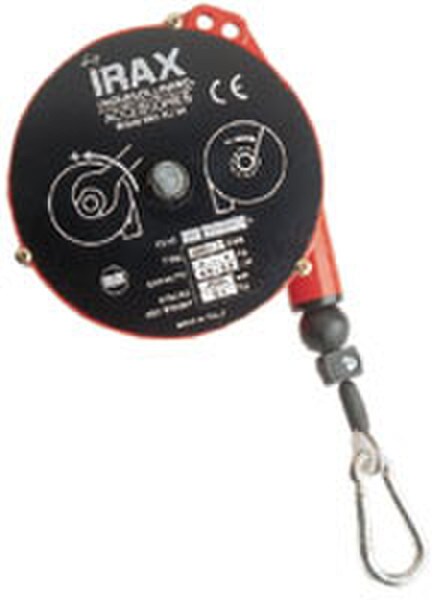

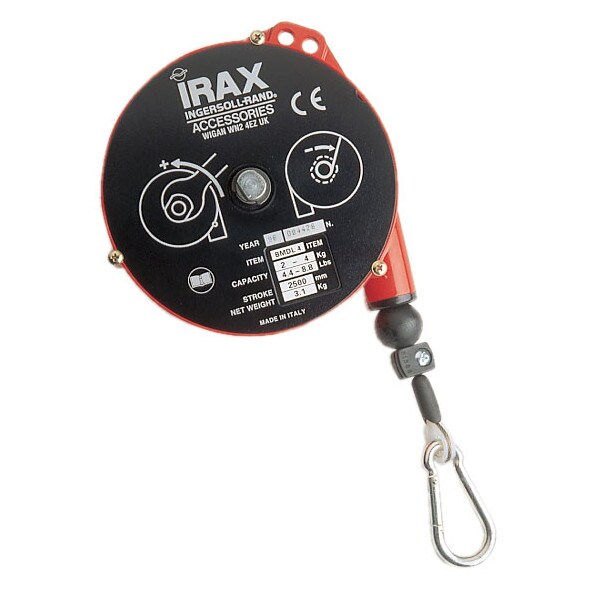

Spring Cable Balancer, 17.6-22 lb Capacity, 8.2 ft. Lift
Designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required.
$299.63List $445.00
Save $145.37Total$299.63Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
BMDLN-10 | Spring Cable Balancer, 17.6-22 lb Capacity, 8.2 ft. LiftBMDLN-10
Total$299.63
1
Details
Product information
Overview
B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort.
| Technical Specifications | |
|---|---|
| Capacity | 17.6 - 22 |
| Lift Height | 8.2 |
| Duty Rating | Medium Duty |
| Weight (lbs) | 7.5 |
| Weight (kg) | 3.4 |
| Length (in) | 11.75 |
| Length (mm) | 298 |
| Width (in) | 5.75 |
| Width (mm) | 146 |
| Housing Material | Aluminum |
| Color | Red |
| MPN | BMDLN-10 |
| Features & Benefits | |
| Rugged construction, cast aluminum body | |
| Stainless steel cable and anti-friction cable guide | |
| Adjustable capacity | |
| Adjustable stroke limiting device | |
| Upper suspension shackle included on balancer for ease of installation | |
| Axial Mounting Circlip to ensure greater durability | |
| Anti-reverse spanner adjustable bushing to protect the balancer from potential damages caused by an incorrect spring unloading | |
| Safety Cap added to the front of the balancer for greater durability by absorbing impact while in motion | |
| Safety device against load dropping due to the spring breakage | |
| Rugged construction | |
| cast aluminum body | |
