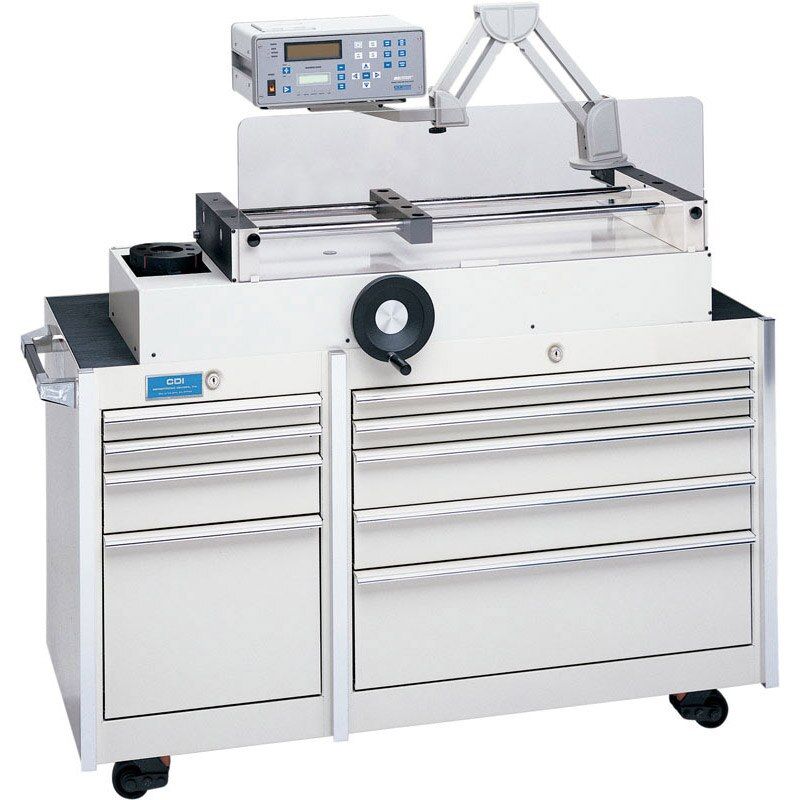

Multitest Basic Calibration System

CDI 2000-3-CDI

Multitest Basic Calibration System

The MULTITEST Torque, Force and Tension Calibration System is the most sophisticated system available in the industry. This system will test and calibrate most types of torque wrenches, torque screwdrivers, torque multipliers, cable tensiometers, tension and compression gauges and non-impact power tools such as nutrunners and electric screwdrivers. The Multitest Calibration System can be ordered several ways. Each system begins with the same three basic components: the Multitest Digital Monitor, the Roller Cabinet and the 2000 ft.lb. Mechanical Loader. We offer three different systems, the "Premier", the "Supreme" and the "Basic". These systems and their components are described in detail on the next few pages. In addition, you may order any component separately to build your own "custom" system. FEATURES Automatic sensor recognition with "Smart" Transducers Range: 5 in. oz. to 2000 ft. lb. torque (bi-directional) Accuracy: ± 0.25% of indicated value, CW & CCW, from 10% to 100% of full scale, (except 2000-4-02*) Built-in, low profile serial printer Date and time stamp for stored values Statistical analysis performed on stored data Programmable manual or automatic options for clear, store and print functions Recall and review of stored torque values Track, Peak, First Peak, Power Tool Modes RS232C port, analog output Eight Torque measurement units: in. oz., in. lb., ft. lb., Nm, dNm, cNm, mkg and cmkg Six Force units: Ounce, Pound, Newton, deciNewton, Kilopound (Kilogram) and Gram Automatic lock-up for transducer protection All transducers supplied with certification Individually serialized with matching certificate
