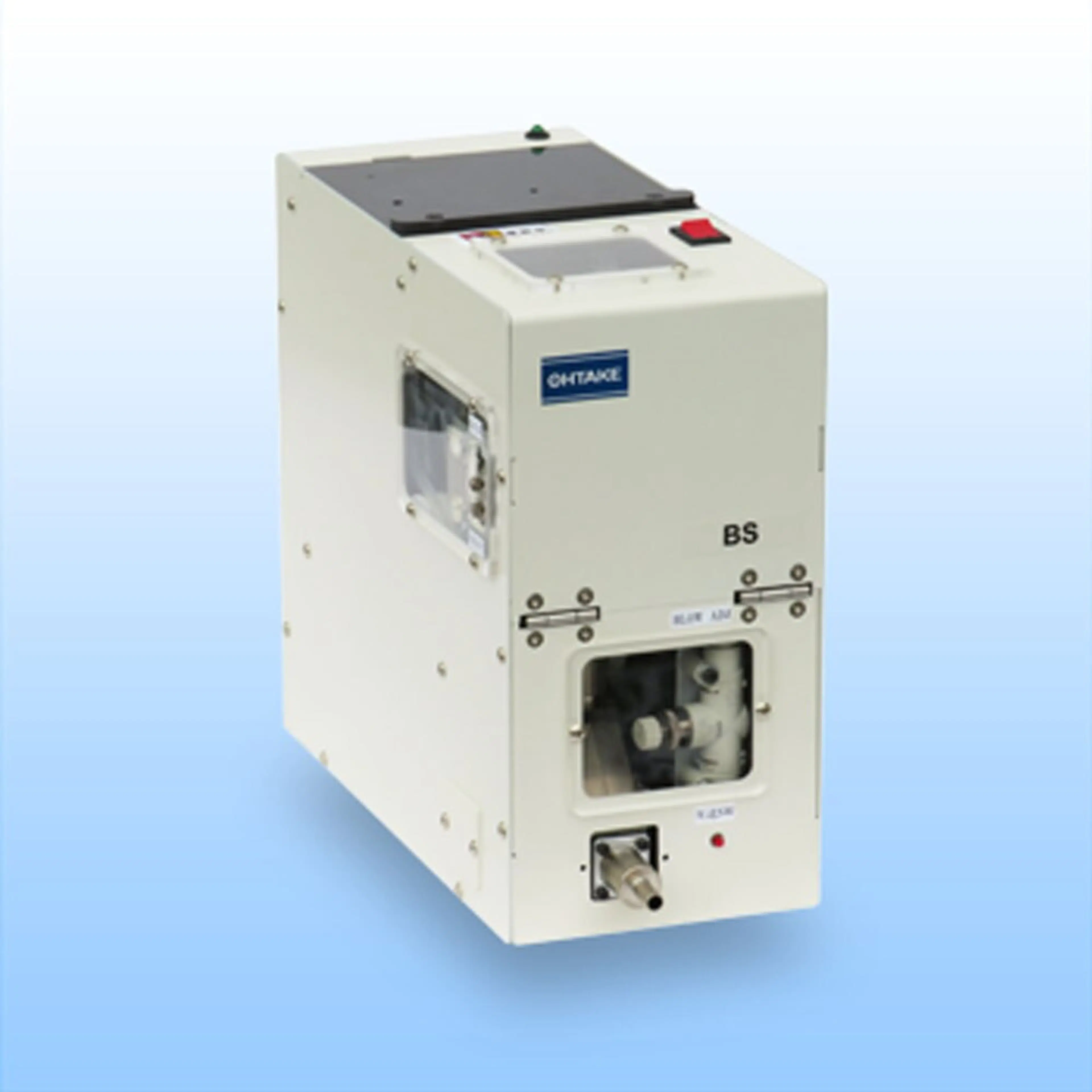

OhtakeBS-CL20
Automatic Pneumatic Screw Feeder for M2 - M6x2mm screws, 1300cc
Elevate your assembly operations with the Ohtake BS-CL20 Automatic Pneumatic Screw Feeder. Experience unparalleled precision, efficiency, and reliability in your screw feeding processes. Invest in this cutting-edge screw feeder and witness a remarkable transformation in your assembly line's productivity and accuracy.
$20,526.00
Total$20,526.00Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
BS-CL20 | Automatic Pneumatic Screw Feeder for M2 - M6x2mm screws, 1300ccBS-CL20
Total$20,526.00
1
Details
Product information
Overview
Introducing the Ohtake BS-CL20 Automatic Pneumatic Screw Feeder, a revolutionary solution for efficient screw feeding in assembly lines. This advanced screw feeder is designed to provide precise screw counting and pneumatic operation, significantly improving your production efficiency and accuracy.
- Screw Size Range: M2 - M6
- Screw Length Range: Up to 2mm
- Hopper Capacity: 1300cc
- Brand: Ohtake
| Technical Specifications | |
|---|---|
| Type | Automatic Pneumatic Screw Feeder |
| Screw Diameter - mm | 2 |
| Screw Size - mm | M2 - M6 |
| Max Screw Length - mm | 25 |
| Capacity - cc | 1300 |
| Dimensions - mm | 169 x 436 x 270 |
| Power Supply | AC100 - 240V DC15V |
| Weight - kg | 10 |
| MPN | BS-CL20 |
| Features & Benefits | |
| Precise Screw Counting: The BS-CL20 screw feeder ensures accurate screw counting for manual applications, eliminating the risk of incorrect screw counts and enhancing overall assembly quality. | |
| Easily Accessible Counter Panel: The conveniently positioned counter panel allows for effortless monitoring and adjustment of screw counts, maximizing productivity and minimizing errors. | |
| Pneumatic Mechanism for Efficient Feeding: Equipped with a powerful pneumatic mechanism, this screw feeder delivers fast and reliable screw feeding, optimizing your assembly cycle time and reducing production bottlenecks. | |
| Applicable for Steel Screws: The BS-CL20 screw feeder is specifically designed for steel screws, providing secure and consistent feeding for a wide range of assembly applications. | |
