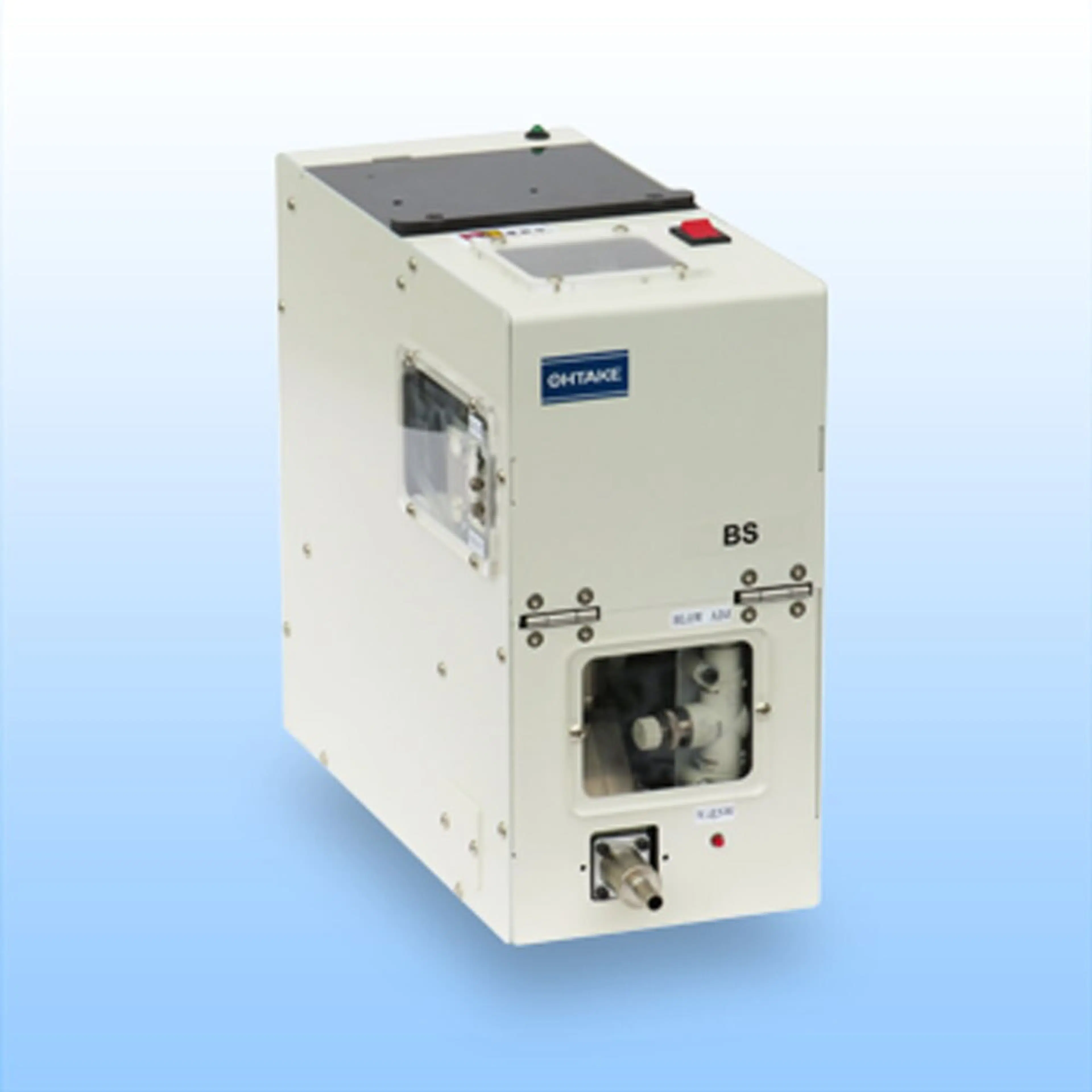

Automatic Pneumatic Screw Feeder for M2 - M6x2.5mm screws, 1300cc
Experience the next level of screw feeding efficiency with the Ohtake BS-CL35 Automatic Pneumatic Screw Feeder. Its precise screw counting, powerful pneumatic mechanism, wide screw compatibility, and large capacity make it an indispensable tool for any assembly line. Trust Ohtake, the industry leader, for reliable and high-quality screw feeding solutions.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Introducing the Ohtake BS-CL35 Automatic Pneumatic Screw Feeder, a revolutionary solution for efficient screw feeding in assembly lines. This advanced screw feeder is designed to provide precise screw counting and efficient pneumatic operation, enhancing productivity and reducing manual labor.
- Screw Size Range: M2 - M6x2.5mm
- Capacity: 1300cc
- Operation: Pneumatic
- Brand: Ohtake
| Technical Specifications | |
|---|---|
| Type | Automatic Pneumatic Screw Feeder |
| Screw Diameter - mm | 2.5 |
| Screw Size - mm | M2 - M6 |
| Max Screw Length - mm | 25 |
| Capacity - cc | 1300 |
| Dimensions - mm | 169 x 436 x 270 |
| Power Supply | AC100 - 240V DC15V |
| Weight - kg | 10 |
| MPN | BS-CL35 |
| Features & Benefits | |
| Precise Screw Counting: The BS-CL35 screw feeder ensures accurate screw counting for manual applications, featuring an easily accessible counter panel for monitoring and control. | |
| Pneumatic Mechanism: Equipped with a powerful pneumatic mechanism, this screw feeder delivers fast and efficient screw feeding, significantly improving cycle times and optimizing production efficiency. | |
| Wide Screw Compatibility: The BS-CL35 screw feeder is compatible with a wide range of screw sizes, from M2 to M6x2.5mm, making it versatile for various assembly applications. | |
| Large Capacity: With a generous capacity of 1300cc, this screw feeder minimizes the need for frequent refilling, reducing downtime and maintaining a smooth workflow. | |
| Ohtake Quality: Manufactured by Ohtake, a renowned brand in the industry, the BS-CL35 screw feeder guarantees exceptional quality, reliability, and durability. | |
