OhtakeBS-CL40

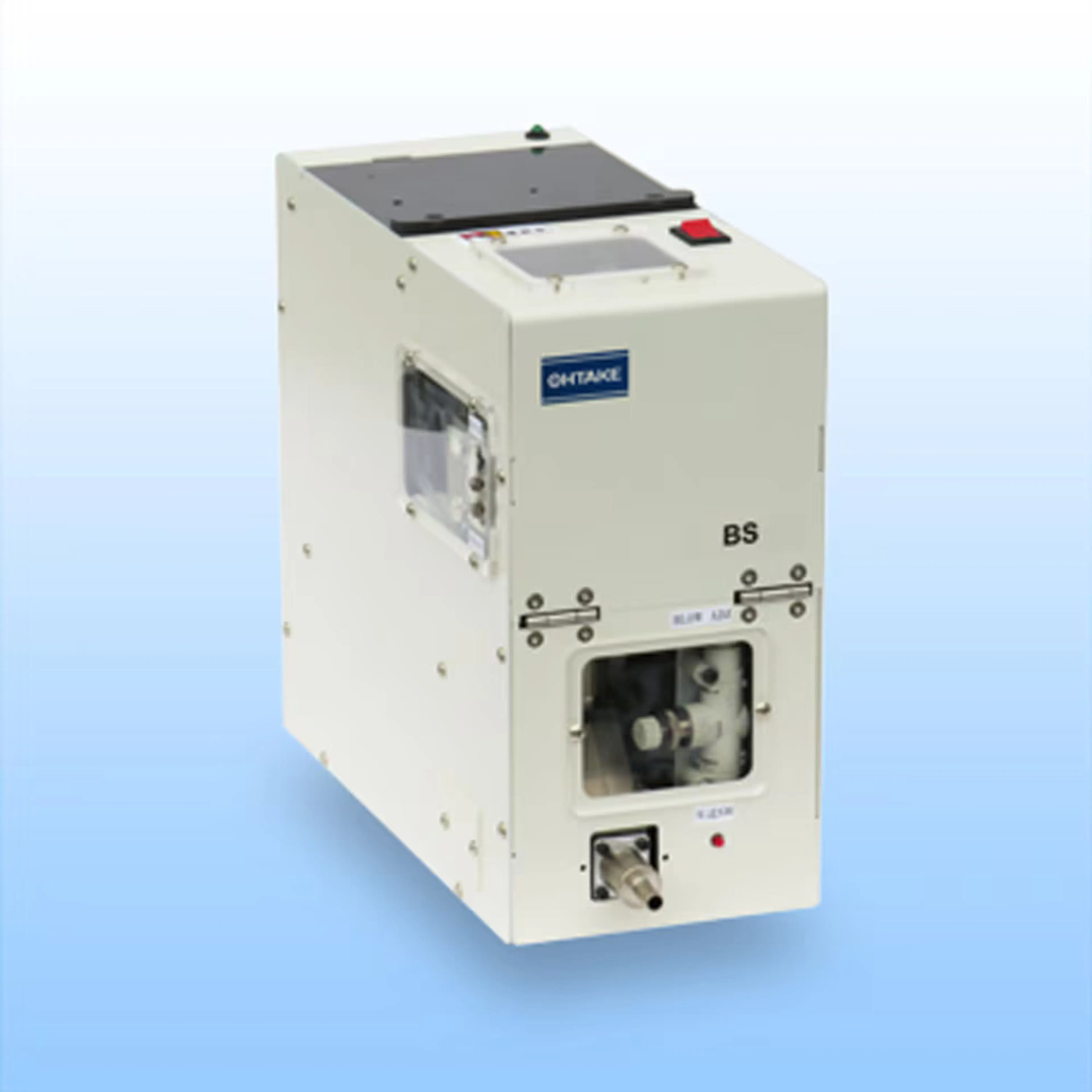

Automatic Pneumatic Screw Feeder for M2 - M6x4mm screws, 1300cc
Elevate your assembly operations with the Ohtake BS-CL40 Automatic Pneumatic Screw Feeder. Experience enhanced efficiency, precision, and productivity with this advanced screw feeding solution. Invest in the BS-CL40 and take your assembly processes to the next level.
$20,526.00
Total$20,526.00Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
BS-CL40 | Automatic Pneumatic Screw Feeder for M2 - M6x4mm screws, 1300ccBS-CL40
Total$20,526.00
1
Details
Product information
Overview
Introducing the Ohtake BS-CL40 Automatic Pneumatic Screw Feeder, a revolutionary solution for efficient and precise screw feeding in your assembly operations. This advanced screw feeder is designed to streamline your production processes, ensuring accurate screw placement and reducing manual labor.
- Screw Size Range: M2 - M6x4mm
- Hopper Capacity: 1300cc
- Screw Feeding Mechanism: Pneumatic
- Brand: Ohtake
| Technical Specifications | |
|---|---|
| Type | Automatic Pneumatic Screw Feeder |
| Screw Diameter - mm | 4 |
| Screw Size - mm | M2 - M6 |
| Max Screw Length - mm | 25 |
| Capacity - cc | 1300 |
| Dimensions - mm | 169 x 436 x 270 |
| Power Supply | AC100 - 240V DC15V |
| Weight - kg | 10 |
| MPN | BS-CL40 |
| Features & Benefits | |
| Versatile Screw Compatibility: The Ohtake BS-CL40 is compatible with a wide range of screw sizes, from M2 to M6x4mm, providing versatility for various assembly applications. | |
| Large Capacity Hopper: Equipped with a spacious 1300cc hopper, this screw feeder ensures a continuous supply of screws, minimizing downtime and maximizing productivity. | |
| Precise Screw Feeding: The pneumatic mechanism of the BS-CL40 enables precise screw feeding, reducing the risk of errors and ensuring consistent assembly quality. | |
| Easy Operation: The screw feeder features an easily accessible counter panel, allowing for convenient monitoring and adjustment of the screw supply. | |
| Improved Efficiency: By automating the screw feeding process, the BS-CL40 helps to improve cycle time and overall production efficiency. | |
