DatasensingC30M/BN-1E

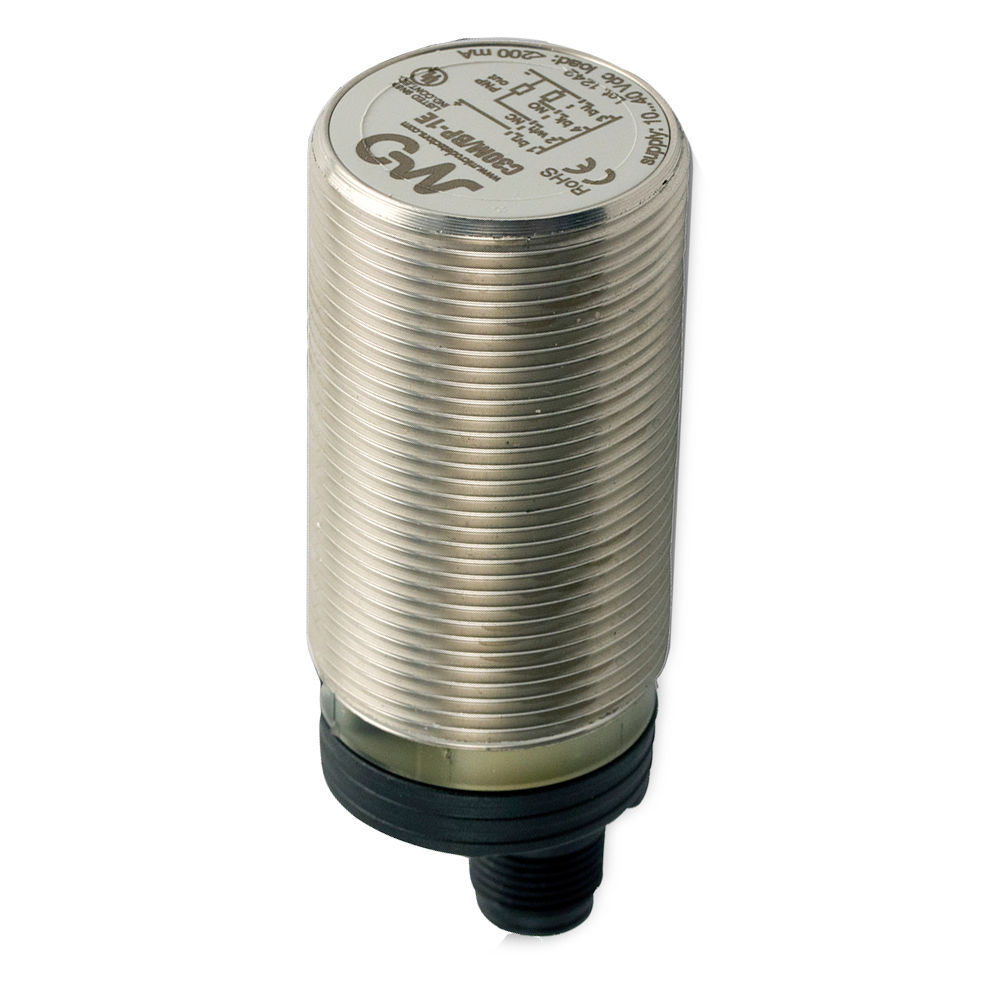

Capacitive sensor M30 Inox Shielded DC 16 mm NPN NO+NC conn. M12
C30M/BN-1E | Capacitive sensor M30 Inox Shielded DC 16 mm NPN NO+NC conn. M12
$116.67List $198.87
Save $82.20Total$116.67Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
C30M/BN-1E | Capacitive sensor M30 Inox Shielded DC 16 mm NPN NO+NC conn. M12C30M/BN-1E
Total$116.67
1
Details
Product information
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 2 to 16 mm |
| Thermal Drift of Sr | < 20% |
| Repeat Accuracy | 5% |
| Sensitivity Adjustment | Yes |
| Hysteresis | 20% |
| Output Type | NPN |
| Output Function | NO + NC |
| Switching Frequency | 30 Hz |
| Operating Voltage | 10-40 Vdc |
| No-Load Supply Current | 12 mA |
| Load Current | 200 mA |
| Leakage Current | 100 µA |
| Output Voltage Drop | 2.5 V @ IL=200mA |
| Maximum Ripple Content | 10% |
| LED Indicators | Yellow LED (object detected) |
| Time Delay Before Availability | 200 ms |
| Short-Circuit Protection | Yes, autoreset |
| Reverse Polarity Protection | Yes |
| Impulsive Overvoltage Protection | Yes |
| Mounting | Shielded |
| Dimensions | M30 / L = 79 mm |
| Weight | 150 g |
| Housing Material | AISI 304 stainless steel |
| Connection | M12 plug |
| Active Head Material | Polyester |
| Tightening Torque | 50 Nm |
| Operating Temperature | -25°C to +80°C (without freeze) |
| Storage Temperature | -40°C to +85°C |
| Diameter | M30 |
| Approvals | CE, cULus |
| EMC Compatibility | IEC 60947-5-2 |
| Shock and Vibration Resistance | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of Protection | IP67 |
| Supplied Accessories | screwdriver, 2 x M30 nuts |
| MPN | C30M/BN-1E |
