JBC CD-9BE | Compact Soldering Station, 100V

$489.99
JBC

Details

JBC CD-9BE

Compact Soldering Station, 100V

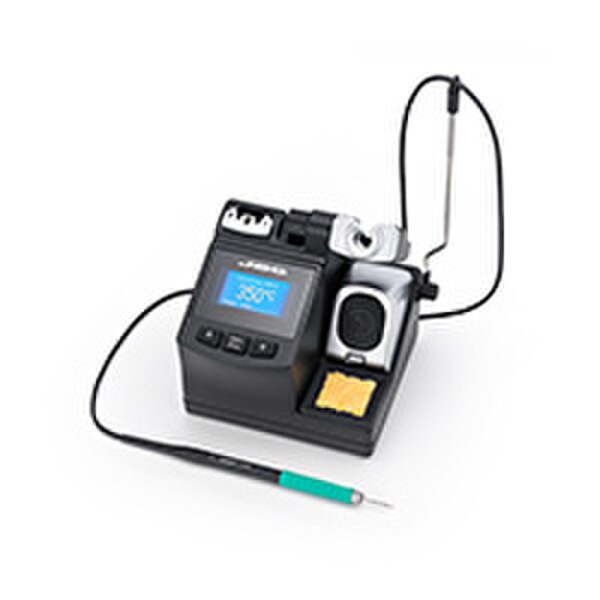

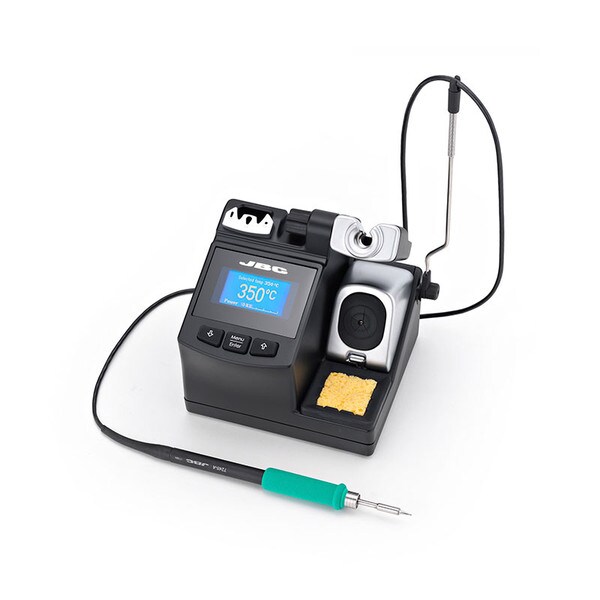

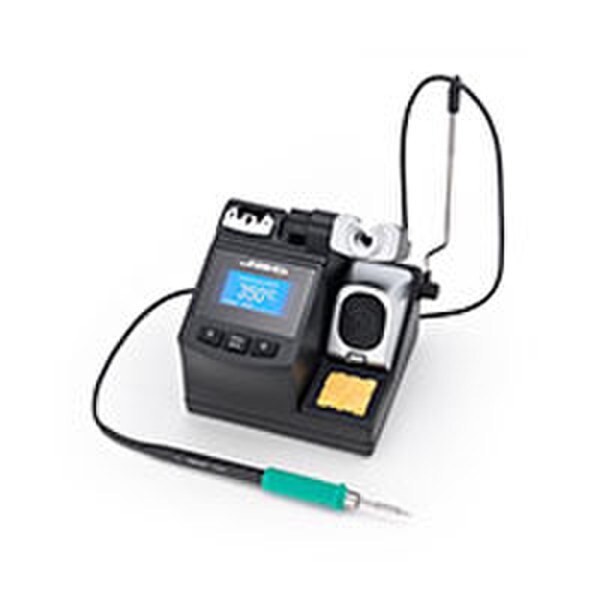

The CD-B is a soldering station with the JBC Advanced system for general electronic applications.

It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It features a USB connector to update software, create graphs and manage parameters from a PC.

Complete cleaning system with an antisplash membrane to keep the work area clean.

Use the integrated wiper to remove excess solder from the tip.

CD-B works with the lightest and ergonomic T245 Handpiece and the C245 cartridges.

You can also connect any T210 with C210 Cartridge range.

The CD-B is a soldering station with the JBC Advanced system for general electronic applications.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Features & Benefits

  • JBC exclusive heating system and the intelligent sleep & hibernation features to extend a tip's life.
  • Using the menu you can personalize over 20 parameters to help manage the soldering process.
  • Complete cleaning system with an antisplash membrane to keep the work area clean.
  • It features a USB connector to update software, create graphs and manage parameters from a PC.

Technical Information

Technical Specifications

Technical Specifications

SKU: CD-9BE-JBC
Manufacturer JBC
Model CD-9BE
Stock CodeB
Dimensions 150 x 175 x 145 mm
ESD Compliant Yes
Input Fuse 2A
Tip to ground resistance <2 ohms
Tip to ground voltage <2mV RMS
Voltage100V
Weight5.88 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!
