MH-Series

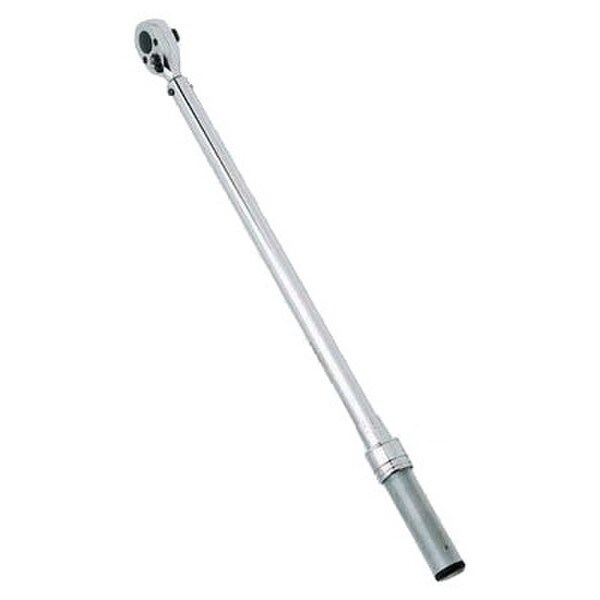

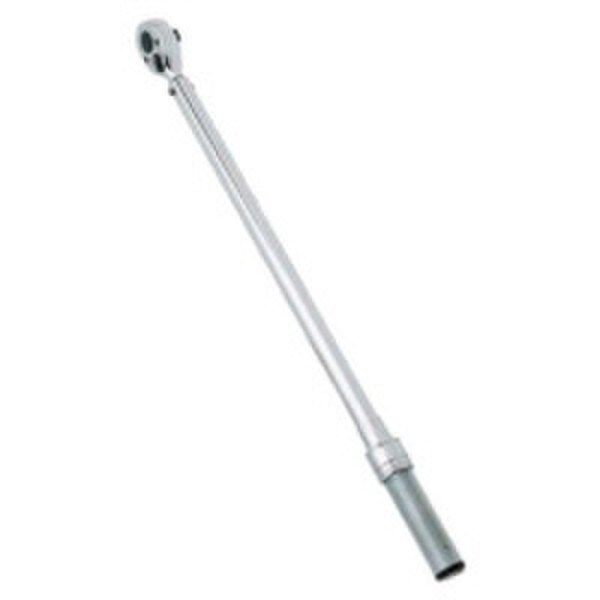

Micrometer adjustable "click" torque wrench is easy to operate, and have many industrial, automotive, and aircraft uses.

Models and pricing below

Models Available

12 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	Min Torque - Nm	Max Torque - Nm	Drive Size	Price	Qty
10005MFRMH10005MFRMH \| CDI 10005MFRMH \| 1'' Dr 200-1000 Ft. Lb. Micro-Adj.$1,685.25	305	1322	1'' square	$1,685.25	1	View details
1002MFRMH1002MFRMH \| 3/8'' Dr 10-100 Ft. Lb. Micro-Adj.$249.42	16.90	132.20	3/8'' square	$249.42	1	View details
1501MRMH1501MRMH \| 1/4 Dr Click Trq Wr 150 In Lbs$310.83	2.8	15.3	1/4'' square	$310.83	1	View details
1502MRMH1502MRMH \| 3/8'' Dr 20-150 In. Lb. Micro-Adj.$306.33	2.8	15.3	3/8'' square	$306.33	1	View details
1503MFRMH1503MFRMH \| 1/2'' Dr 20-150 Ft. Lb. Micro-Adj.$268.88	34	197	1/2'' square	$268.88	1	View details
2502MRMH2502MRMH \| 3/8'' Dr 30-250 In. Lb. Micro-Adj.$200.90	4.0	27.7	3/8'' square	$200.90	1	View details
2503MFRMH2503MFRMH \| 1/2'' Dr 30-250 Ft. Lb. Micro-Adj.$320.57	47	332	1/2'' square	$320.57	1	View details
4004MFRMH4004MFRMH \| 3/4'' Dr 80-400 Ft. Lb. Micro-Adj.$925.02	85	497	3/4'' square	$925.02	1	View details
6004MFRMH6004MFRMH \| 3/4'' Torque Wrench, Micro-Adjustable, 100 - 600 ft lbs$1,213.38	169	779	3/4'' square	$1,213.38	1	View details
7502MRMH7502MRMH \| 3/8'' Dr 100-750 In. Lb. Micro-Adj.$338.55	14.1	81.9	3/8'' square	$338.55	1	View details
752MFRMH752MFRMH \| Micro-Adjustable Torque Wrench$222.45	10.2	98.3	3/8'' square	$222.45	1	View details
802MFRFMHSS802MFRFMHSS \| 3/8'' 80 ft lb Torque Wrench, Micro-Adjustable$310.10	13.5	108.5	3/8'' square	$310.10	1	View details

Overview

Micrometer adjustable "click" torque wrenches are easy to operate, and have many industrial, automotive, and aircraft uses. From 10 in. lbs. to 2000 ft. lbs., CDI offers a wide selection of torque wrenches to fit your needs. The adjustable torque wrench has easy-to-read precision laser marked scales. Both models feature dual scales, in English or Newton Meter units. All of CDI’s click torque wrenches are calibrated for use in both directions. To set the desired torque, simply pull down the lock ring and turn the handle to the desired torque setting. Once set, the positive locking device locks in the torque setting. When the desired torque is reached,an impulse can be felt through the handle along with an audible "click". Most ratchets feature a "Quick Release" push button that both locks the socket in place and makes socket changes quick and easy.

FEATURES

Dual scale, Calibrated dual direction
Positive Lock with spring loaded pull down lock ring
Fast, accurate and easy to set
Easy-to-read Laser marked scales
Individually serialized with matching certificate of calibration traceable to N.I.S.T.
Most feature Quick Release buttons which provide good socket retention as well as easy socket removal
Accuracy: ± 4% clockwise ± 6% CCW of indicated value, CW, from 20% to 100% of full scale
Meets or exceeds ASME B107.14M-1994, ISO 6789 Standards

Features & Benefits
10.0 In Lb - 2,000 Ft Lb
Accuracy: +/- 4%
From $119
