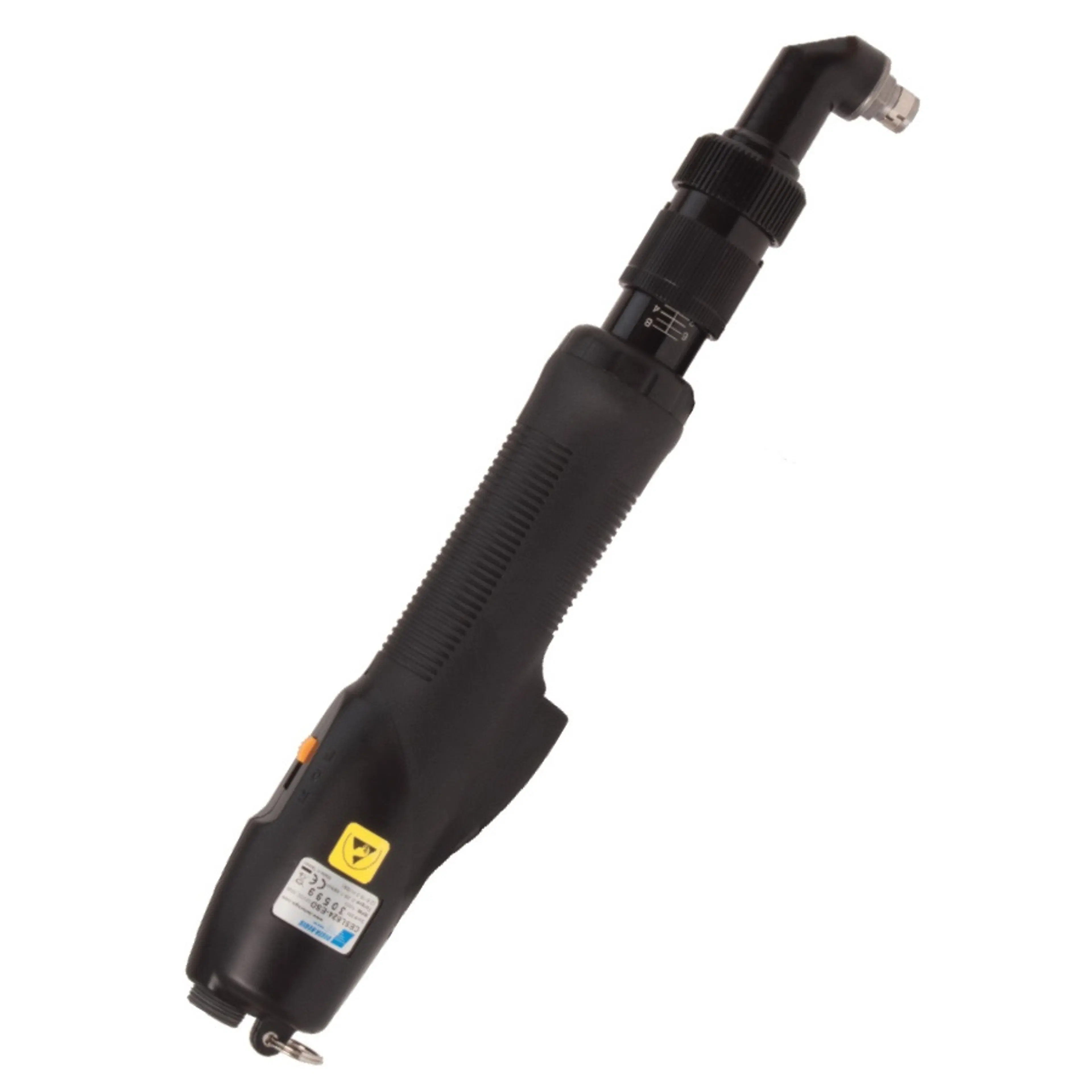

Delta RegisCESL824F-ESD/RA
0.20-1.17 Nm/1.8-10.4 In.Lbs, 2000, lever
Delta Regis 32VDC Right Angle Drivers provide access to fasteners located in areas that cannot be reached by a standard in-line tool.
$834.00
Total$834.00Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorized service
CESL824F-ESD/RA | 0.20-1.17 Nm/1.8-10.4 In.Lbs, 2000, leverCESL824F-ESD/RA
Total$834.00
1
Recommended Accessories
2 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Dimensions | Weight (lbs) | Price | Qty | |
|---|---|---|---|---|---|
 BECT620CBECT620C | Control Box Power Supply$146.00 | 145 x 60 x 35 in. | 0.6 | $146.00 | 1 | View details |
 BECT832N-SSOBECT832-SSO-V4.0 | Counting Controller, 1 output, Hi / Lo speed, 100-240VAC$669.00 | 200 x 130 x 100mm | 3.5 | $669.00 | 1 | View details |
Details
Product information
Overview
Delta Regis CESL824F-ESD/RA
0.20-1.17 Nm/1.8-10.4 In.Lbs, 2000, lever |
Requires external power controller BECT820N sold separately.
| Technical Specifications | |
|---|---|
| Model | CESL824F-ESD/RA |
| Manufacturer | Delta Regis |
| Controller | BECT820N |
| Motor Type | Brushless |
| SKU | CESL824F-ESD/RA |
| Start Type | Lever Start |
| Power Source | BECT820N |
| Style | Angle Head |
| Min Torque (In Lb) | 1.8 |
| Max Torque (In Lb) | 10.4 |
| Min Torque (Nm) | 0.20 |
| Max Torque (Nm) | 1.18 |
| ESD Compliant | Yes |
| Power supply | BECT820N |
| Max Free Speed (rpm) | 200 |
| Weight (lbs) | 1.7 |
| Series | CESL8 |
| Voltage | 32V |
| MPN | CESL824F-ESD/RA |
| Features & Benefits | |
| Precise torque control, low torque reaction | |
| Quiet, brushless DC motor means no carbon dust | |
| Less heat build-up and higher duty cycle capabilities than conventional brush motors | |
| CE/RoHS compliant | |
| Precise torque control | |
| low torque reaction | |
| Quiet | |
| brushless DC motor means no carbon dust | |
