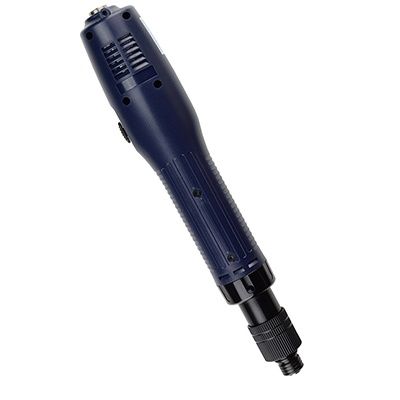

CESLT845PM
40VDC Series drivers are capable of developing high torques. These drivers must be used with the included side handle attachment or mounted in a torque reaction arm for operator safety.
$1,140.80
Total$1,140.80Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
CESLT845PMCESLT845PM
Total$1,140.80
1
Details
Product information
Overview
Requires external power controller BECT940HL sold separately.
| Technical Specifications | |
|---|---|
| Model | CESLT845PM |
| Drive size | 1/4'' hex |
| Manufacturer | Delta Regis |
| Controller | BECT940HL |
| Motor Type | Brushless |
| Length (mm) | 297 |
| Length (In) | 11.7 |
| SKU | CESLT845PM |
| Start Type | Push-to-Start |
| Power Source | BECT940HL |
| Style | Inline |
| Min Torque (In Lb) | 27 |
| Max Torque (In Lb) | 79 |
| Min Torque (Nm) | 3.05 |
| Max Torque (Nm) | 8.93 |
| Power supply | BECT940HL |
| Max Free Speed (rpm) | 900 |
| Weight (lbs) | 2.75 |
| Series | High Torque |
| Voltage | 40V |
| Diameter - in | 1.81 |
| MPN | CESLT845PM |
| Features & Benefits | |
| Clean, powerful 40V brushless motor technology | |
| Dependable, long lifespan | |
| CE/RoHS compliant | |
| Clean | |
| powerful 40V brushless motor technology | |
| Dependable | |
| long lifespan | |
