Chicago Pneumatic6151590390

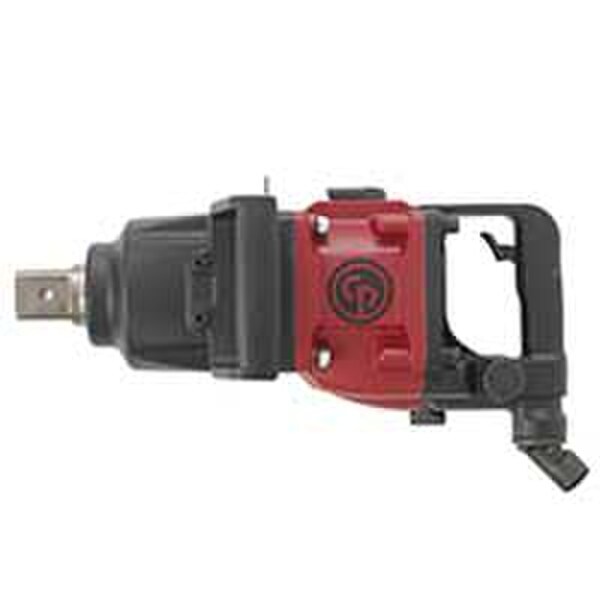

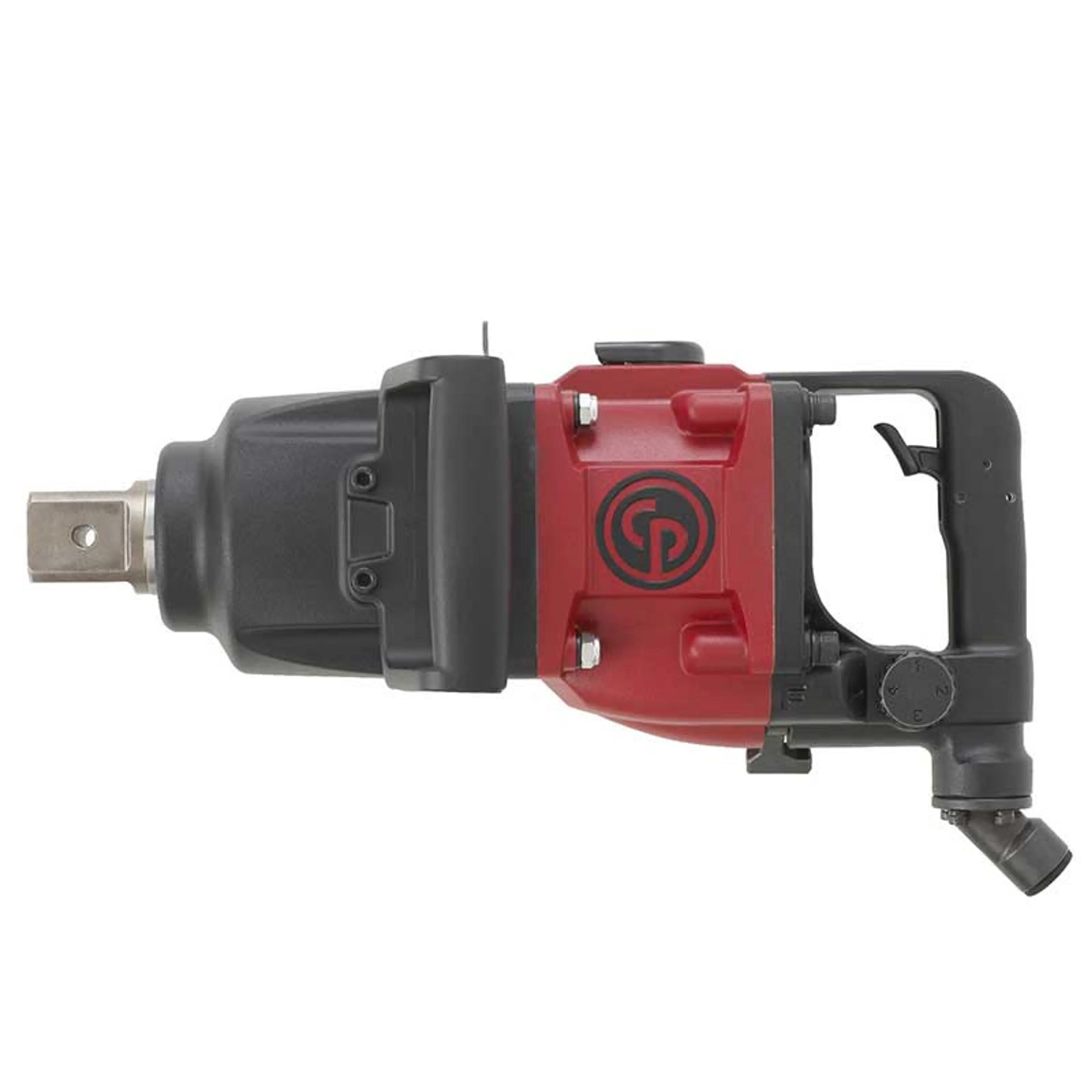

CP6930-D35 | 1-1/2 in. 2875 ft lb Air Impact Wrench, D-Handle Inside Trigger, 4300 rpm
Powerful, Robust and Comfortable 1-1/2'' square impact for industrial maintenance
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151590390 | CP6930-D35 | 1-1/2 in. 2875 ft lb Air Impact Wrench, D-Handle Inside Trigger, 4300 rpmCP6930-D35
Price on request
Recommended Accessories
1 itemAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|

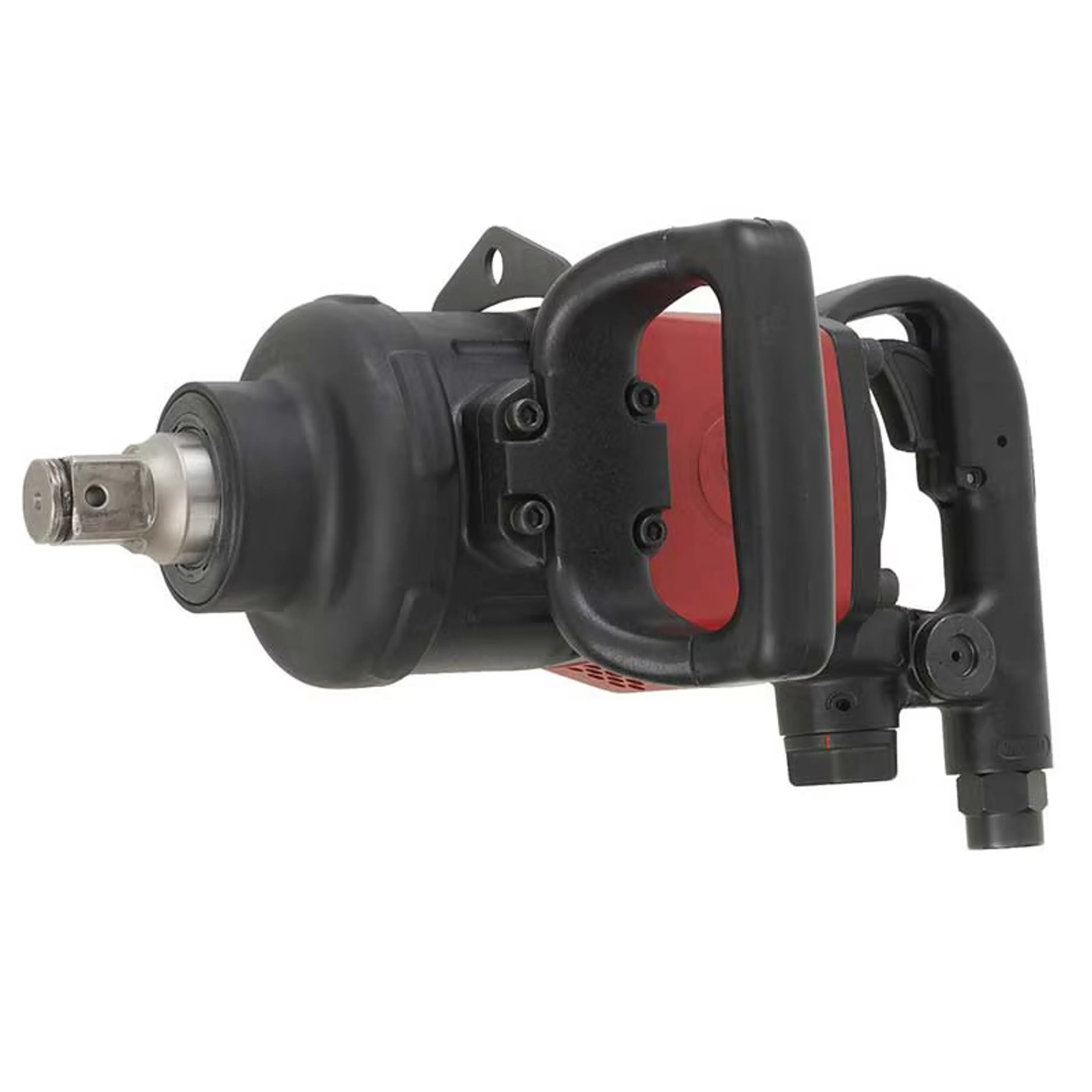

 CP6920-D246151590080 | CP6920-D24 | 1 in. 1920 ft lb Air Impact Wrench, D-Handle Inside Trigger, 5000 rpm | 1 | View details |
Details
Product information
Overview
Chicago Pneumatic 1-1/2 in. 2875 ft lb Air Impact Wrench, D-Handle Inside Trigger, 4300 rpm
CP6930-D35
CP6930-D35, 1-1/2 in. 2875 ft lb Air Impact Wrench, D-Handle Inside Trigger, 4300 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1-1/2 in. 2875 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!
Benefits
- Powerful and durable twin hammer clutch with oil bath
- Robust aluminum housing with steel trigger and protective plate in the front
- Operator comfort and control with 4-positions regulator and side D-handle
Features
- 1-1/2" industrial impact wrench with hole type socket retainer
- Durable twin hammer clutch with oil bath
- Robust aluminum body & clutch housing
- Reversible D-type side handle
- Reversible and teasing steel trigger
- 4-settings power regulator
- Rotative air exhaust
- Removable suspension hook
| Technical Specifications | |
|---|---|
| Max working torque fwd | 2650 Nm |
| Max torque reverse | 3900 Nm |
| Min working torque fwd | 600 Nm |
| Torque limited | No |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.75 in |
| Min hose diam (5 m hose length) | 16 mm |
| Sound Power | 112.5 dB(A) |
| Sound Pressure | 101.5 dB(A) |
| Uncertainty vibration-K | 5.5 m/s² |
| Vibration (m/s²) | 15.1 |
| Free Speed | 4300 rpm |
| Air consumption at free speed | 47 l/s |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 440 mm |
| Power weight ratio | 270 Nm/kg |
| Side to Center | 65 mm |
| Weight | 14.3 kg |
| Blow per minute | 850 |
| Body | Aluminium |
| Clutch housing | Aluminium |
| Clutch lubrication type | Oil bath |
| Handle type | D-handle |
| Impact mecanism | Twin hammer |
| Output drive size (in) | 1-1/2 |
| Output drive type | Sq |
| Output retainer type | Hole |
| Side handle | Yes |
| Starting system | Trigger |
| MPN | CP6930-D35 |
| Features & Benefits | |
| Powerful, Fast and Ergonomic | |
| Ideal for industrial maintenance applications | |
| Powerful | |
| Fast and Ergonomic | |
