Chicago Pneumatic8941077370

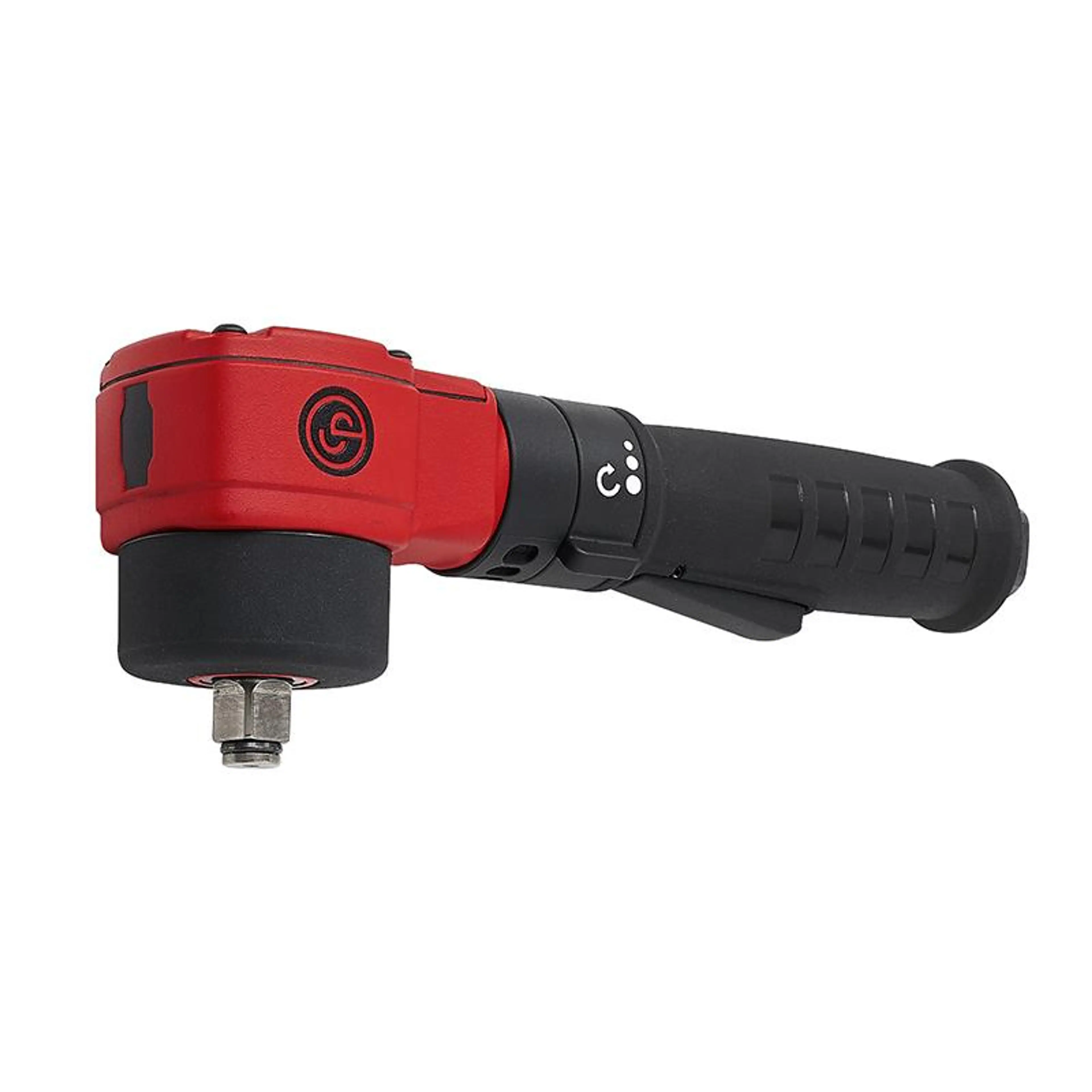

CP7737 | 1/2 in. 165 Ft lb Compact Angle Impact Wrench with ring retainer, 9000 rpm, 1600 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8941077370 | CP7737 | 1/2 in. 165 Ft lb Compact Angle Impact Wrench with ring retainer, 9000 rpm, 1600 bpmCP7737
Price on request
Details
Product information
Overview
Chicago Pneumatic 1/2 in. 165 Ft lb Compact Angle Impact Wrench with ring retainer, 9000 rpm, 1600 bpm
CP7737
CP7737, 1/2 in. 165 Ft lb Compact Angle Impact Wrench with ring retainer, 9000 rpm, 1600 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Compact Angle Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- High Durability
- Compact
- Powerful
- Comfort
- Great Control
- Easy Operation
- Single handed Forward – Reverse operation
- 3 positions in forward and 1 in reverse
Features
- Jumbo hammer mechanism
- Steel motor
- Composite cover
- Direct drive transmission mechanism
- 9.8 in -240 mm length & 3.46 in. (88 mm) height
- 220 ft.lbs - 300 Nm of maximum torque in reverse (for 1/2" model)
- 2.46 lbs. – 1.12 Kg
- Over molded composite and ergonomic handle to fit perfectly in hand
- Full teasing trigger
- Single handed Forward – Reverse operation
- 3 positions in forward and 1 in reverse
- Socket retainer ring
| Technical Specifications | |
|---|---|
| Max working torque fwd | 224 Nm |
| Max torque reverse | 300 Nm |
| Min working torque fwd | 34 Nm |
| Torque limited | No |
| Air consumption at load | 7.5 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 104 dB(A) |
| Sound Pressure | 93 dB(A) |
| Uncertainty vibration-K | 1.3 m/s² |
| Vibration (m/s²) | 10.3 |
| Free Speed | 9000 rpm |
| Air consumption at free speed | 11 l/s |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 240 mm |
| Side to Center | 30 mm |
| Weight | 1.13 kg |
| Blow per minute | 1600 |
| Body | Aluminum |
| Clutch housing | Aluminum |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Single hammer |
| Main Material type | Aluminium |
| Output drive size (in) | 1/2 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
| MPN | CP7737 |
