Chicago Pneumatic8941077486
1/2 in. 553 Ft lb Extended Composite Impact Wrench with Friction ring retainer, 7000 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP7748-2 Extended Composite Impact Wrench Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP7748-2 Extended Composite Impact Wrench Operator Manual (PDF)Open
- PDFChicago Pneumatic CP7748-2 Extended Composite Impact Wrench CE Certificate (PDF)Open
- PDFChicago Pneumatic Air Impact and Pulse Wrench Safety Instructions (PDF)Open
8941077486 | 1/2 in. 553 Ft lb Extended Composite Impact Wrench with Friction ring retainer, 7000 rpm8941077486
Price on request
Details
Product information
Overview

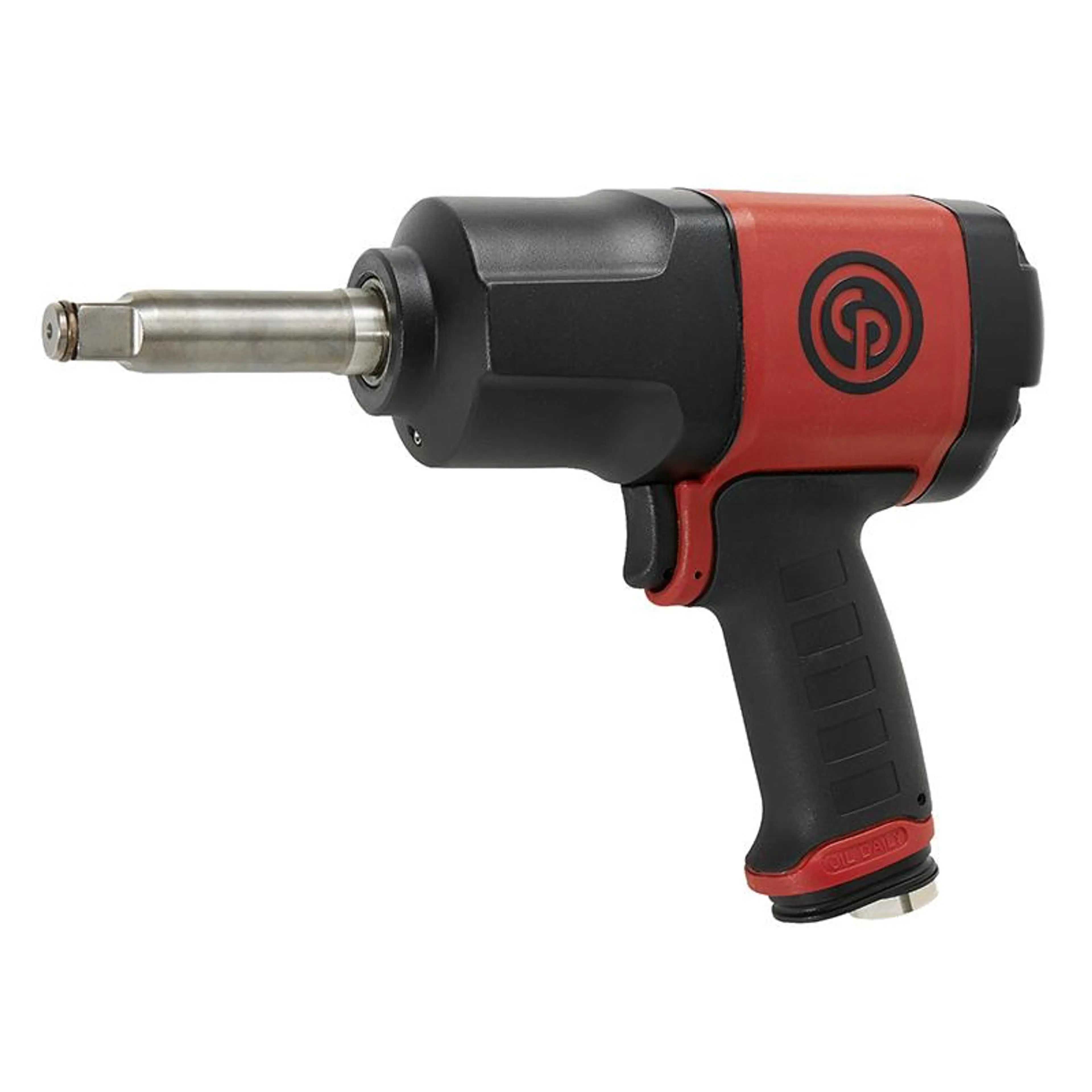

Chicago Pneumatic 1/2 in. 553 Ft lb Extended Composite Impact Wrench with Friction ring retainer, 7000 rpm
CP7748-2
CP7748-2, 1/2 in. 553 Ft lb Extended Composite Impact Wrench with Friction ring retainer, 7000 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Extended Composite Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Most powerful tool on the market in its class: 959 ft.lbs - 1300 Nm of maximum real torque in reverse
- Best price to performance/durability ratio
- Lightweight due to composite housing
- Contoured comfort grip handle instead of TPR injected in handle
- Smooth Forward / Reverse Switch on back
- Suited for all maintenance applications: Light vehicle tire changing, General maintenance on vehicles and MRO applications
Features
- 1/2" composite impact wrench
- One handed forward/reverse
- Full power in reverse: 959 ft. lb - 1300 Nm maximum real torque in reverse
- Aluminum clutch & back housing
- Friction ring socket retainer
- Full teasing trigger
- Curved to be more ergonomic, Smaller diameter to fit better in hand palm and to be optimum balanced
- Handle with Thermo-Plastic Rubber injected in housing for a durable and comfortable grip; Resistant to most chemicals used in workshops
- Twin hammer mechanism
- 360° swivel air inlet
- Composite housing
| Technical Specifications | |
|---|---|
| Model | CP7748-2 |
| Type | Extended Composite Impact Wrench |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 200 |
| Min Torque (Ft Lb) | 70.1 |
| Free Speed (RPM) | 7000 |
| SKU | 8941077486 |
| Stock Code | 2 |
| Air Inlet | 1/4 in. |
| Clutch Type | Twin hammer |
| Maximum Torque Reverse (ft lb) | 959 ft lbs |
| Max Torque (Ft Lb) | 553 |
| Min Torque (Nm) | 102 |
| Max Torque (Nm) | 786 |
| Square Drive | 1/2 in. |
| Min Hose Size (in) | 0.38 |
| Weight (lbs) | 4.65 |
| Side to Center (in) | 1.54 |
| Handle Type | Pistol |
| Blows Per Minute (bpm) | 1350 |
| Retainer Type | Friction ring |
| MPN | 8941077486 |
| Features & Benefits | |
| 960 ft.lbs / 1,300 Nm of max torque in reverse position for high productivity | |
| Composite housing, twin hammer impact mechanism, hard anodized end plates, and hard chromium aluminum cylinder for high durability | |
| Lightweight (4.65 lbs – 2.11 kg) and compact (8.86 in. / 225 mm long) for improved comfort | |
| One-hand reverse system (Ring system) for better ergonomics | |
| 960 ft.lbs / 1,300 Nm of max torque in reverse position for high productivity,Composite housing, twin hammer impact mechanism, hard anodized end plates, and hard chromium aluminum cylinder for high durability,Lightweight (4.65 lbs – 2.11 kg) and compact (8.86 in. / 225 mm long) for improved comfort,One-hand reverse system (Ring system) for better ergonomics | |
