Chicago PneumaticT024351
CP734H | 1/2 in. 310 Ft lb Impact Wrench with ring retainer, 8400 rpm, 1020 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
T024351 | CP734H | 1/2 in. 310 Ft lb Impact Wrench with ring retainer, 8400 rpm, 1020 bpmCP734H
Price on request
Details
Product information
Overview

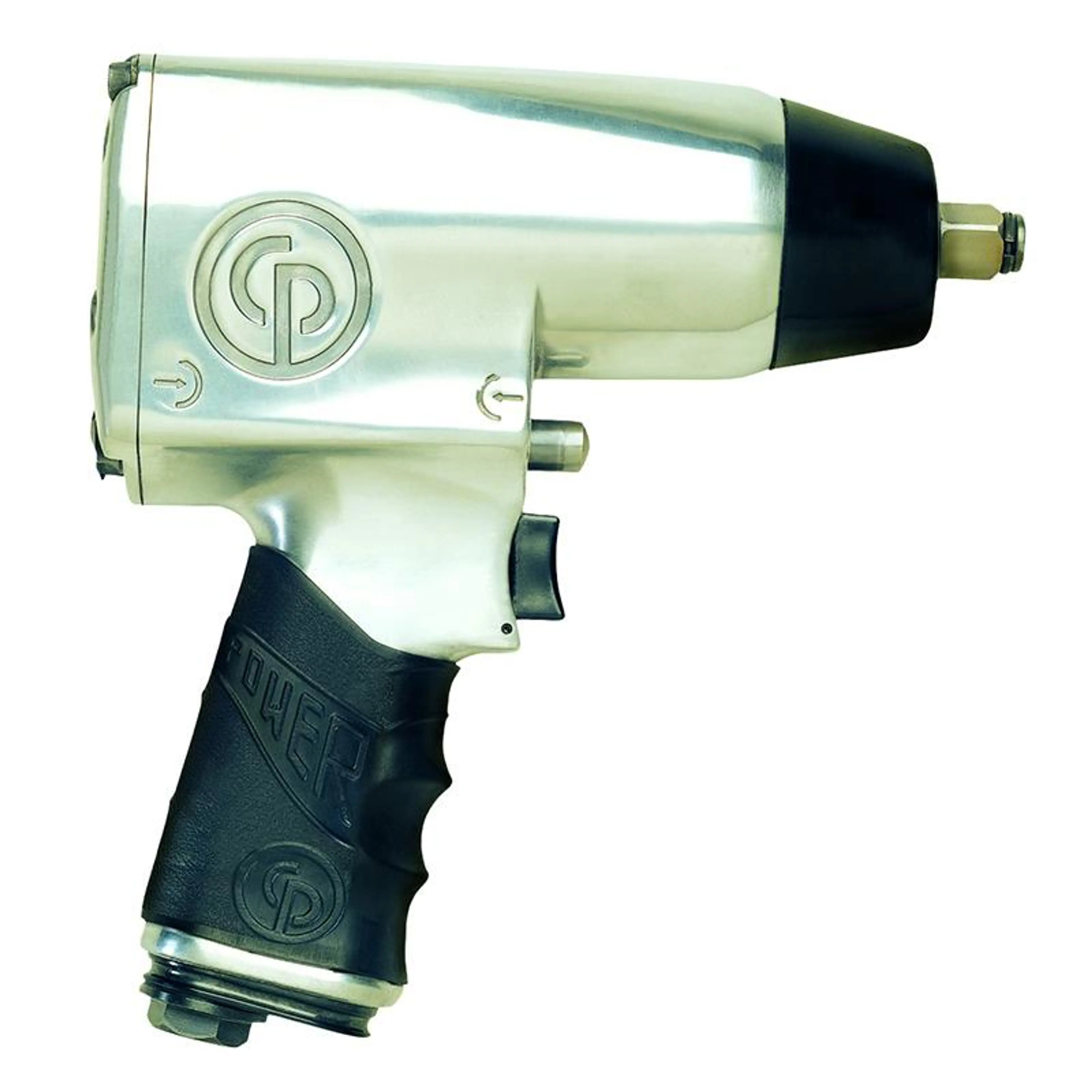

Chicago Pneumatic 1/2 in. 310 Ft lb Impact Wrench with ring retainer, 8400 rpm, 1020 bpm
CP734H
CP734H, 1/2 in. 310 Ft lb Impact Wrench with ring retainer, 8400 rpm, 1020 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- General Maintenance
- Clutch delivers smooth and comfortable operation
- Robust housing and oil bath clutch provide durability
- Versatile tool ideal for all general repairs and maintenance applications
Features
- 1/2" impact wrench for general maintenance with ring retainer
- DYNA-PACT (Pin clutch) with oil bath
- One-handed reverse button with 4 positive power settings
- Compact and ergonomic with rubber grip
- Through handle air exhaust and 360° air inlet swivel
| Technical Specifications | |
|---|---|
| Max working torque fwd | 420 Nm |
| Max torque reverse | 576 Nm |
| Min working torque fwd | 34 Nm |
| Torque limited | No |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 104 dB(A) |
| Sound Pressure | 93 dB(A) |
| Uncertainty vibration-K | 3.3 m/s² |
| Vibration (m/s²) | 7.2 |
| Free Speed | 8400 rpm |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Length (L) | 191 mm |
| Power weight ratio | 240 Nm/kg |
| Weight | 2.32 kg |
| Blow per minute | 1020 |
| Body | Aluminum |
| Clutch housing | Aluminum |
| Clutch lubrication type | Oil bath |
| Handle type | Pistol |
| Impact mecanism | Pin clutch |
| Main Material type | Aluminium |
| Output drive size (in) | 1/2 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
| MPN | CP734H |
