Chicago Pneumatic8941077390

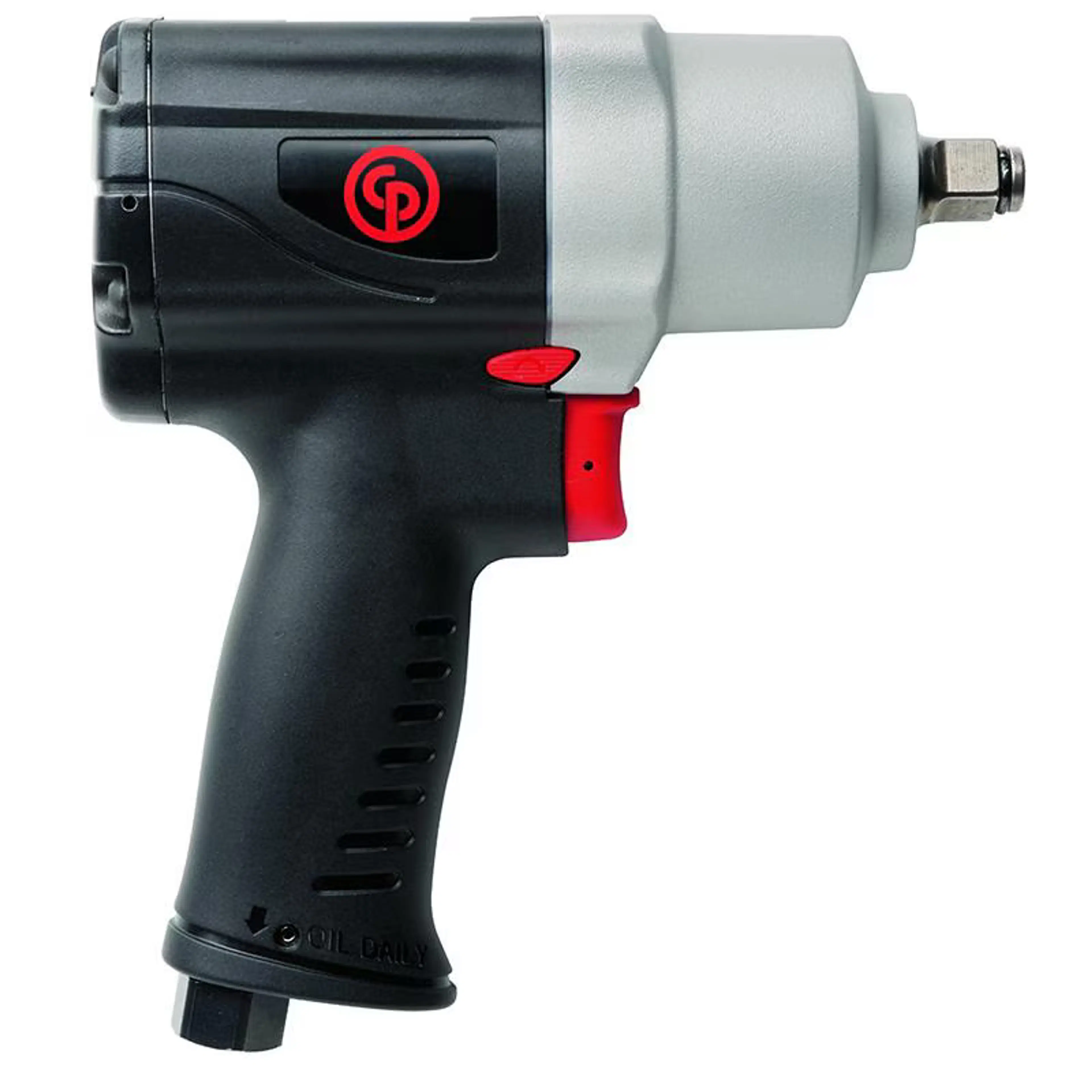

CP7739 | 1/2 in. 305 Ft lb Compact Impact Wrench with ring retainer, 9900 rpm, 1700 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP7739 Compact Impact Wrench Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP7739 Compact Impact Wrench Operator Manual (PDF)Open
- PDFChicago Pneumatic CP7739 Compact Impact Wrench CE Certificate (PDF)Open
- PDFChicago Pneumatic Air Impact and Pulse Wrench Safety Instructions (PDF)Open
8941077390 | CP7739 | 1/2 in. 305 Ft lb Compact Impact Wrench with ring retainer, 9900 rpm, 1700 bpmCP7739
Price on request
Details
Product information
Overview
Chicago Pneumatic 1/2 in. 305 Ft lb Compact Impact Wrench with ring retainer, 9900 rpm, 1700 bpm
CP7739
CP7739, 1/2 in. 305 Ft lb Compact Impact Wrench with ring retainer, 9900 rpm, 1700 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Compact Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- General Maintenance
- Maximize operator comfort with an extremely light & well balanced tool
- Most convenient and unique reverse technology in the market
Features
- Mini 1/2" compact impact wrench for general maintenance
- Twin hammer clutch
- Composite handle and magnesium clutch housing
- S2S technology and 3 positive power settings
- Full teasing trigger
| Technical Specifications | |
|---|---|
| Max working torque fwd | 414 Nm |
| Max torque reverse | 610 Nm |
| Min working torque fwd | 68 Nm |
| Torque limited | No |
| Air consumption at load | 9.4 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 103 dB(A) |
| Sound Pressure | 92 dB(A) |
| Uncertainty vibration-K | 2.5 m/s² |
| Vibration (m/s²) | 6.9 |
| Free Speed | 9900 rpm |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 163 mm |
| Power weight ratio | 500 Nm/kg |
| Side to Center | 26 mm |
| Weight | 1.2 kg |
| Blow per minute | 1700 |
| Body | Composite |
| Clutch housing | Aluminium |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Twin hammer |
| Main Material type | Composite |
| Output drive size (in) | 1/2 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
| MPN | CP7739 |
