Chicago Pneumatic8941077481

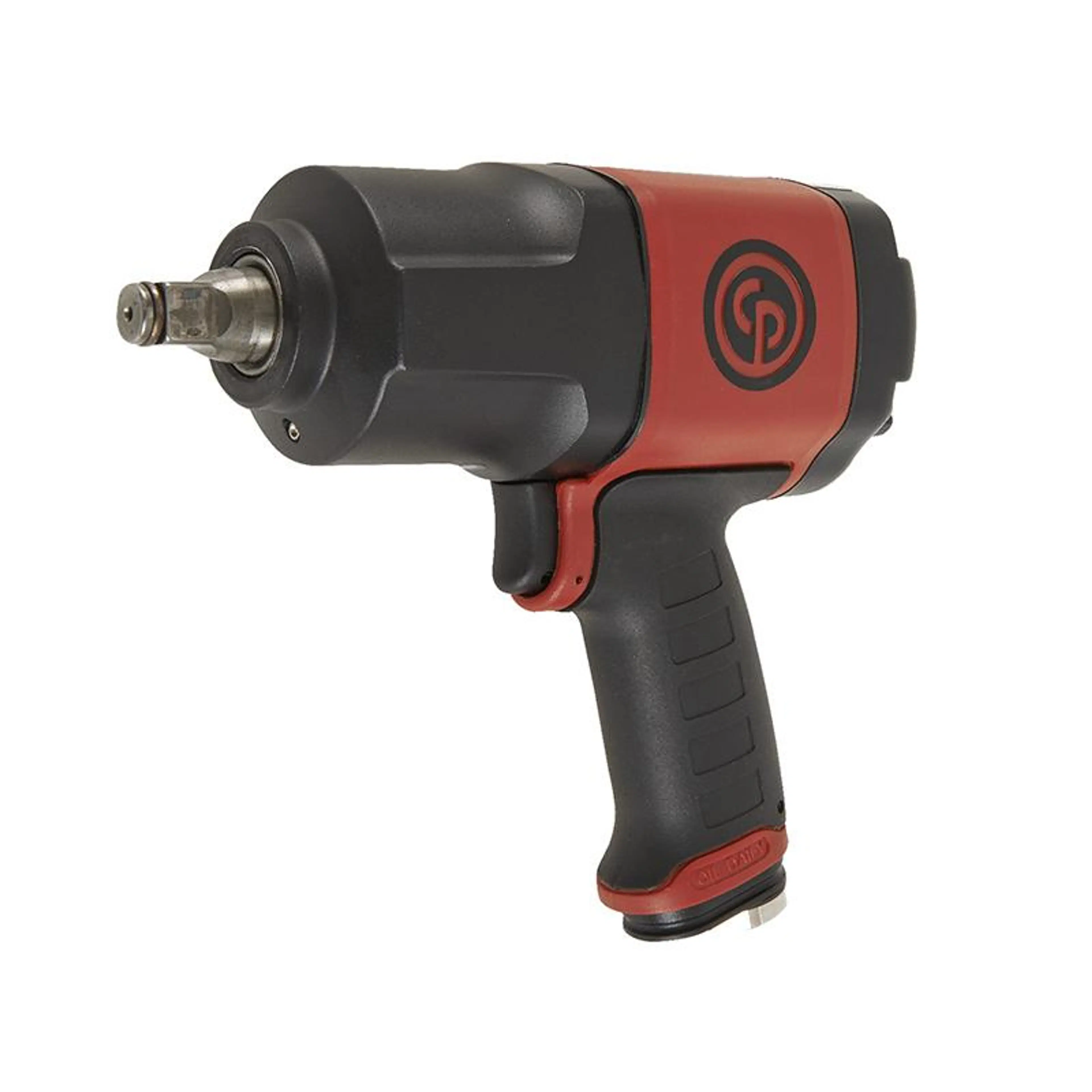

CP7748 | 1/2 in. 580 Ft lb Composite Impact Wrench with ring retainer, 8200 rpm, 1200 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP7748 Composite Impact Wrench Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP7748 Composite Impact Wrench Operator Manual (PDF)Open
- PDFChicago Pneumatic CP7748 Composite Impact Wrench CE Certificate (PDF)Open
- PDFChicago Pneumatic Air Impact and Pulse Wrench Safety Instructions (PDF)Open
8941077481 | CP7748 | 1/2 in. 580 Ft lb Composite Impact Wrench with ring retainer, 8200 rpm, 1200 bpmCP7748
Price on request
Details
Product information
Overview
Chicago Pneumatic 1/2 in. 580 Ft lb Composite Impact Wrench with ring retainer, 8200 rpm, 1200 bpm
CP7748
CP7748, 1/2 in. 580 Ft lb Composite Impact Wrench with ring retainer, 8200 rpm, 1200 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Composite Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Most powerful tool on the market in its class: 922 ft.lbs – 1250 Nm of maximum real torque in reverse
- Best price to performance/durability ratio
- Lightweight due to composite housing
- Contoured comfort grip handle instead of TPR injected in handle
- Smooth Forward / Reverse Switch on back
- Suited for all maintenance applications: Light vehicle tire changing, General maintenance on vehicles and MRO applications
Features
- 1/2" composite impact wrench
- One handed forward/reverse
- Full power in reverse: 922 ft. lb - 1250 Nm maximum real torque in reverse
- 3 positions in forward: Low - 180 ft-lbs. / 245 Nm - Medium - 480 ft-lbs. / 650 Nm - High - 730 ft-lbs. / 990 Nm
- Aluminum clutch & back housing
- Friction ring socket retainer
- Full teasing trigger
- Curved to be more ergonomic, Smaller diameter to fit better in hand palm and to be optimum balanced
- Handle with Thermo-Plastic Rubber injected in housing for a durable and comfortable grip; Resistant to most chemicals used in workshops
- Twin hammer mechanism
- 360° swivel air inlet
- Composite housing
| Technical Specifications | |
|---|---|
| Max working torque fwd | 750 Nm |
| Max torque reverse | 1300 Nm |
| Min working torque fwd | 95 Nm |
| Torque limited | No |
| Air consumption at load | 12 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 105.3 dB(A) |
| Sound Pressure | 94.3 dB(A) |
| Uncertainty vibration-K | 4.5 m/s² |
| Vibration (m/s²) | 12 |
| Free Speed | 7000 rpm |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Height (H) | 200 mm |
| Length (L) | 175 mm |
| Width (W) | 78 mm |
| Side to Center | 39 mm |
| Weight | 2 kg |
| Blow per minute | 1350 |
| Body | Composite |
| Clutch housing | Aluminium |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Twin hammer |
| Main Material type | Composite |
| Output drive size (in) | 1/2 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
| MPN | CP7748 |
