Chicago Pneumatic6151590210

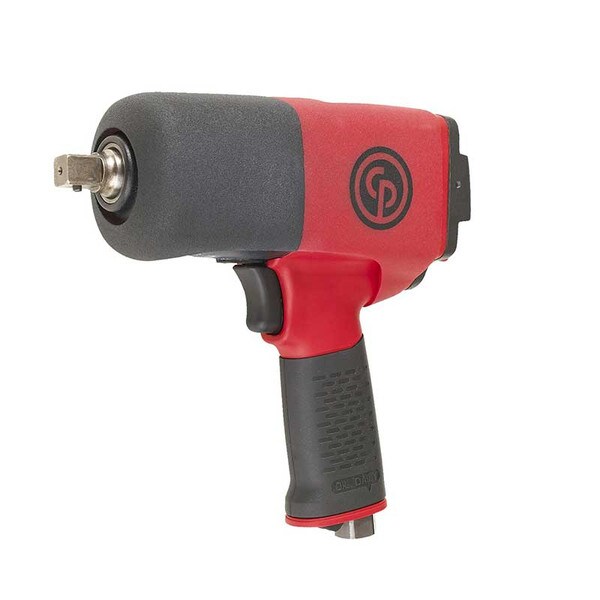

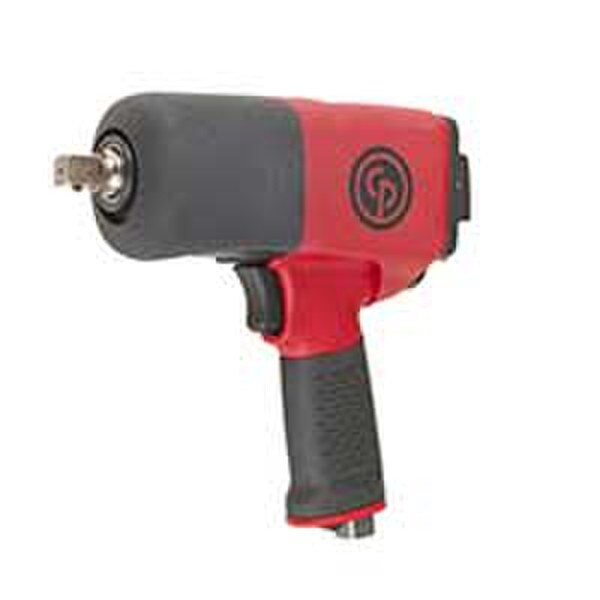

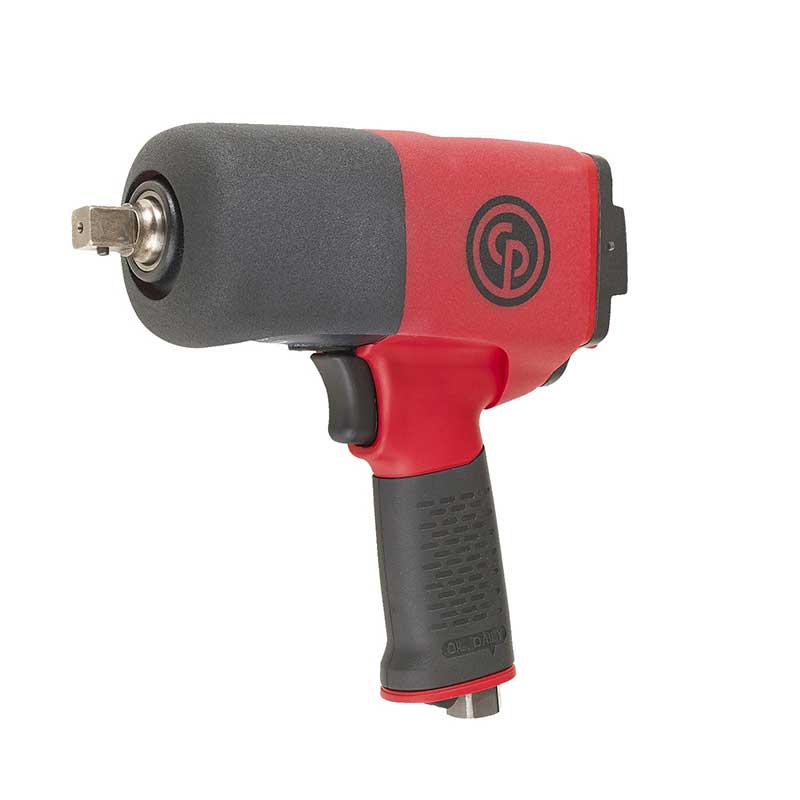

CP8252-P | 1/2 in. 700 ft lb Air Impact Wrench, Pistol, 9000 rpm
Comfortable, robust and compact
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
- PDFChicago Pneumatic CP8252-P 1/2 in. 700 ft lb Air Impact Wrench Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP8252-P 1/2 in. 700 ft lb Air Impact Wrench Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Impact and Pulse Wrench Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP8252-P 1/2 in. 700 ft lb Air Impact Wrench CE Certificate (PDF)Open
6151590210 | CP8252-P | 1/2 in. 700 ft lb Air Impact Wrench, Pistol, 9000 rpmCP8252-P
Price on request
Recommended Accessories
1 itemAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 CP8252-R6151590250 | CP8252-R | 1/2 in. 700 ft lb Air Impact Wrench, Pistol, 9000 rpm | 1 | View details |
Details
Product information
Overview
Chicago Pneumatic 1/2 in. 700 ft lb Air Impact Wrench, Pistol, 9000 rpm
CP8252-P
CP8252-P, 1/2 in. 700 ft lb Air Impact Wrench, Pistol, 9000 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/2 in. 700 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!
Benefits
- Very low noise level, limited vibration and lightweight for operator comfort
- Powerful and easy to control for precise assembly jobs
- Durable and reliable impact for Industrial Maintenance and Production applications
- Multi-purpose tool for a large variety of applications
Features
- 1/2" impact with pin retainer
- Powerful & durable twin hammer clutch
- Composite body and aluminum clutch housing
- 3 power settings in forward & full power in reverse
- Protective cover & suspension bail
- Progressive trigger & Rubber grip
| Technical Specifications | |
|---|---|
| Max working torque fwd | 750 Nm |
| Max torque reverse | 950 Nm |
| Min working torque fwd | 150 Nm |
| Torque limited | No |
| Air consumption at load (Normo) | 25.4 1/sNl |
| Air consumption at load | 12 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 105 dB(A) |
| Sound Pressure | 94 dB(A) |
| Uncertainty vibration-K | 3.6 m/s² |
| Vibration (m/s²) | 8.8 |
| Free Speed | 9000 rpm |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 200 mm |
| Power weight ratio | 470 Nm/kg |
| Side to Center | 35 mm |
| Weight | 2 kg |
| Blow per minute | 1400 |
| Body | Composite |
| Clutch housing | Aluminium |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Twin hammer |
| Main Material type | Composite |
| Output drive size (in) | 1/2 |
| Output drive type | Sq |
| Output retainer type | Pin retainer |
| Starting system | Trigger |
| Suspension option | Included |
| MPN | CP8252-P |
| Features & Benefits | |
| Very low noise and limited vibrations | |
| Ideal for industrial maintenance applications | |
| Socket retainer | |
