Chicago Pneumatic8941077321
CP7732C | 1/2 in. 285 Ft lb Compact Impact Wrench with ring retainer, 9410 rpm, 1400 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8941077321 | CP7732C | 1/2 in. 285 Ft lb Compact Impact Wrench with ring retainer, 9410 rpm, 1400 bpmCP7732C
Price on request
Details
Product information
Overview

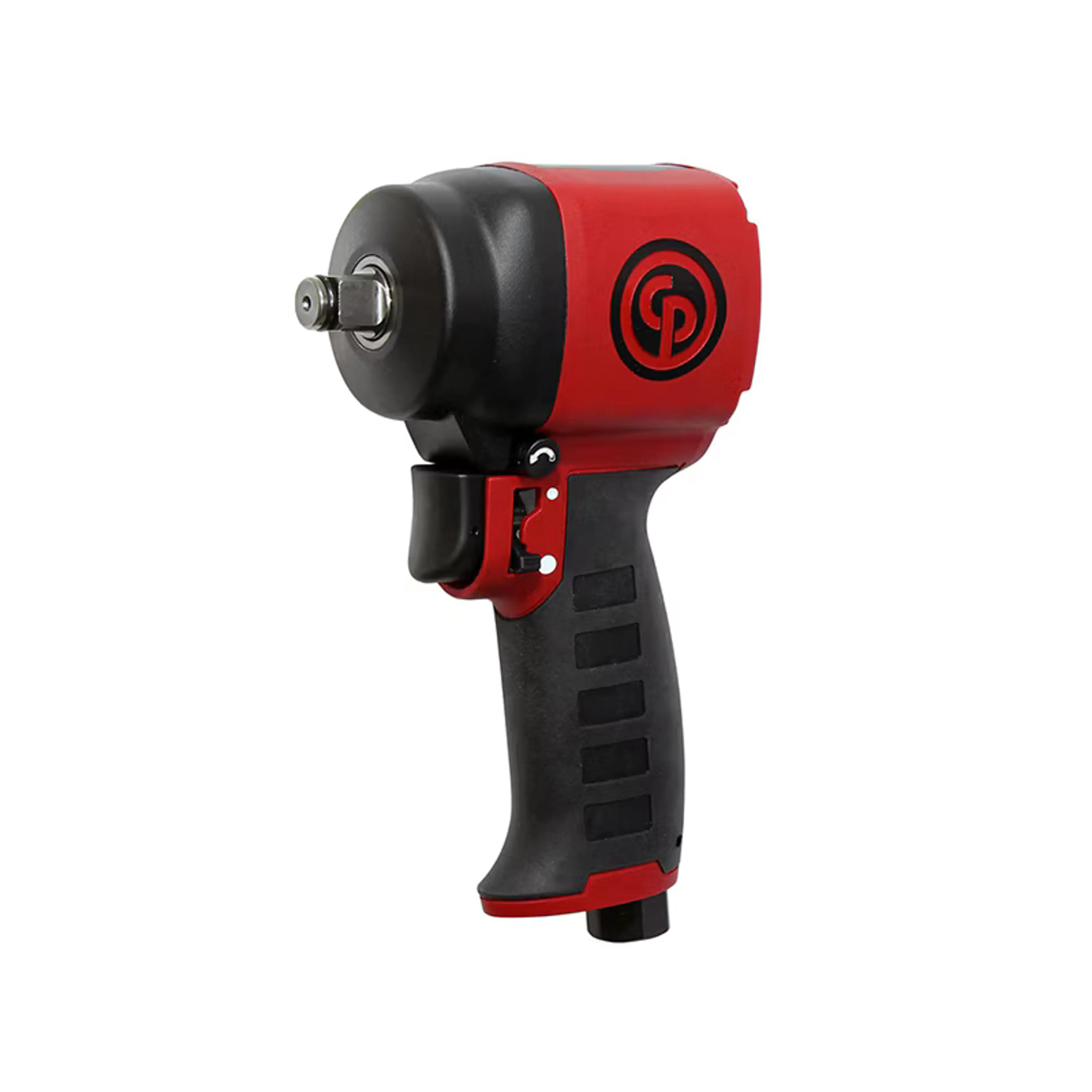

Chicago Pneumatic 1/2 in. 285 Ft lb Compact Impact Wrench with ring retainer, 9410 rpm, 1400 bpm
CP7732C
CP7732C, 1/2 in. 285 Ft lb Compact Impact Wrench with ring retainer, 9410 rpm, 1400 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Compact Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Ultra Lightweight
- Easy operation
- Compact
- Powerful
- Durable
Features
- 2.1 lbs. – 1.0 Kg
- 460 ft.lbs - 625 Nm of maximum torque in reverse
- 4 1/4 in – 108 mm length
- Jumbo hammer mechanism
- Steel motor
- Aluminum clutch housing
- Composite housing with curved handle with Thermo-Plastic Rubber injected
- S2S: 1 hand Forward – Reverse operation
- New power setting system: 1 hand-operation behind the trigger
- 2 positions in reverse: max and lower torque
- 2 positions in forward: max and low torque
- Socket retainer ring
- Full teasing trigger
| Technical Specifications | |
|---|---|
| Max working torque fwd | 387 Nm |
| Max torque reverse | 625 Nm |
| Min working torque fwd | 70 Nm |
| Torque limited | No |
| Air consumption at load | 10 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 106.5 dB(A) |
| Sound Pressure | 95.5 dB(A) |
| Uncertainty vibration-K | 1.4 m/s² |
| Vibration (m/s²) | 10.8 |
| Free Speed | 9410 rpm |
| Air consumption at free speed | 14 l/s |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 108 mm |
| Side to Center | 32 mm |
| Weight | 1 kg |
| Blow per minute | 1400 |
| Body | Composite |
| Clutch housing | Aluminum |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Single hammer |
| Main Material type | Composite |
| Output drive size (in) | 1/2 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
| MPN | CP7732C |
