8941077821 | CP7782-SP6 | #5 spline 1475 Ft lb Extended Impact Wrench with dual retainer, 5200 rpm, 500 bpmCP7782-SP6
Price on request
Details
Product information
Overview

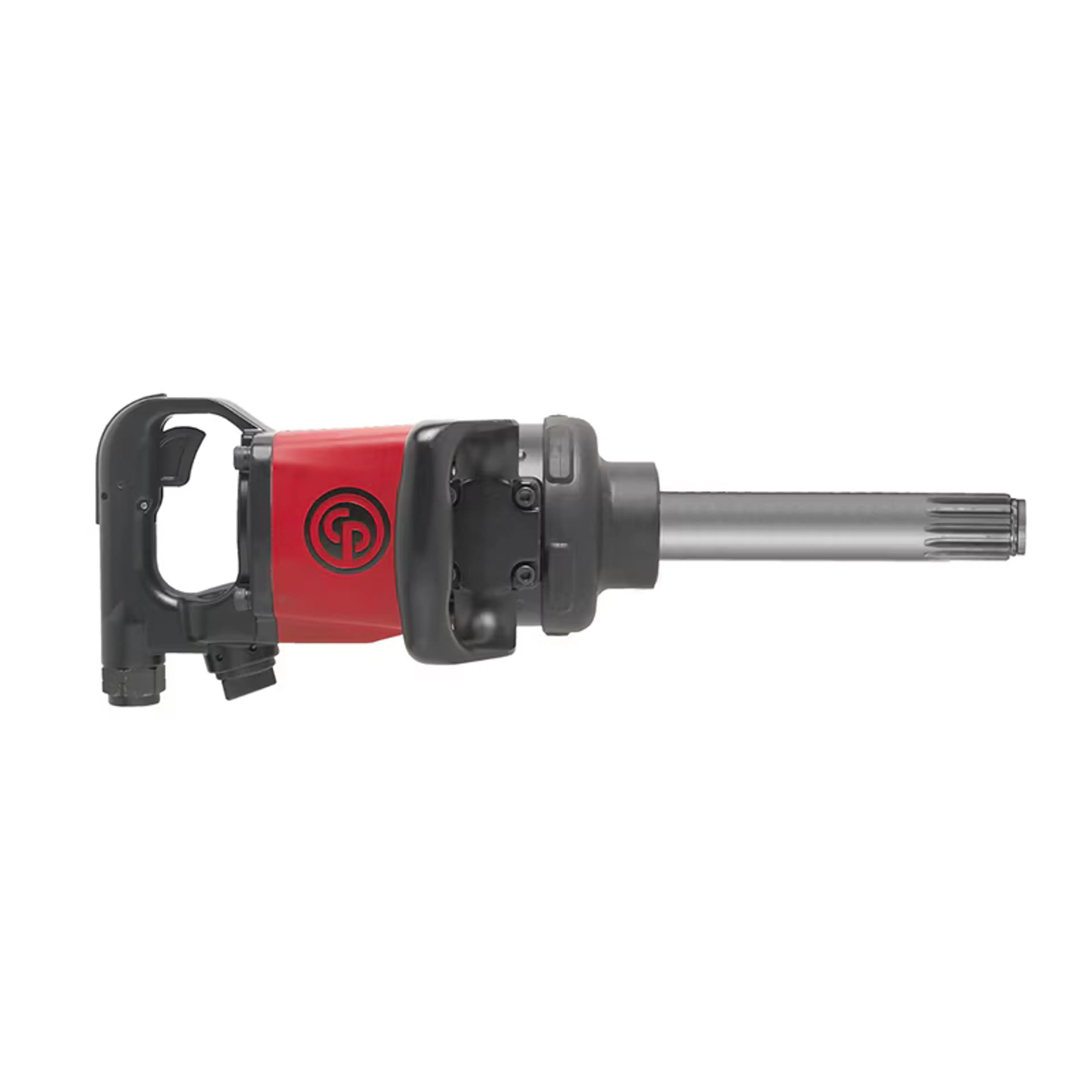

Chicago Pneumatic #5 spline 1475 Ft lb Extended Impact Wrench with dual retainer, 5200 rpm, 500 bpm
CP7782-SP6
CP7782-SP6, #5 spline 1475 Ft lb Extended Impact Wrench with dual retainer, 5200 rpm, 500 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Extended Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- High efficiency motor, yet economical with durable reinforced clutch mechanism
- Durable impact wrench with great power for the toughest jobs on heavy vehicles
Features
- #5 spline straight impact wrench with 6" extended anvil
- 1920 ft.lbs - 2600 Nm of maximum torque in reverse
- Pinless closed reinforced rocking dog impact mechanism
- Socket retainer ring combined with hole retainer
- Ergonomic side handle
- Full teasing trigger
- Regulator with integrated forward/reverse with 3-position power settings in both directions
| Technical Specifications | |
|---|---|
| Model | CP7782-SP6 |
| Type | Extended Impact Wrench |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 520 |
| Min Torque (Ft Lb) | 370 |
| Free Speed (RPM) | 5200 |
| SKU | 8941077821 |
| Stock Code | 2 |
| Air Inlet | 1/2 in. |
| Clutch Type | Pinless closed rocking dog |
| Maximum Torque Reverse (ft lb) | 1920 ft lbs |
| Max Torque (Ft Lb) | 1475 |
| Min Torque (Nm) | 500 |
| Max Torque (Nm) | 2000 |
| Bolt Size - mm | M32 |
| Square Drive | no. 5 spline |
| Min Hose Size (in) | 1/2 |
| Weight (lbs) | 25.6 |
| Handle Type | D-Handle, Inside Trigger |
| Blows Per Minute (bpm) | 500 |
| Retainer Type | Dual, hole and friction |
| MPN | CP7782-SP6 |
