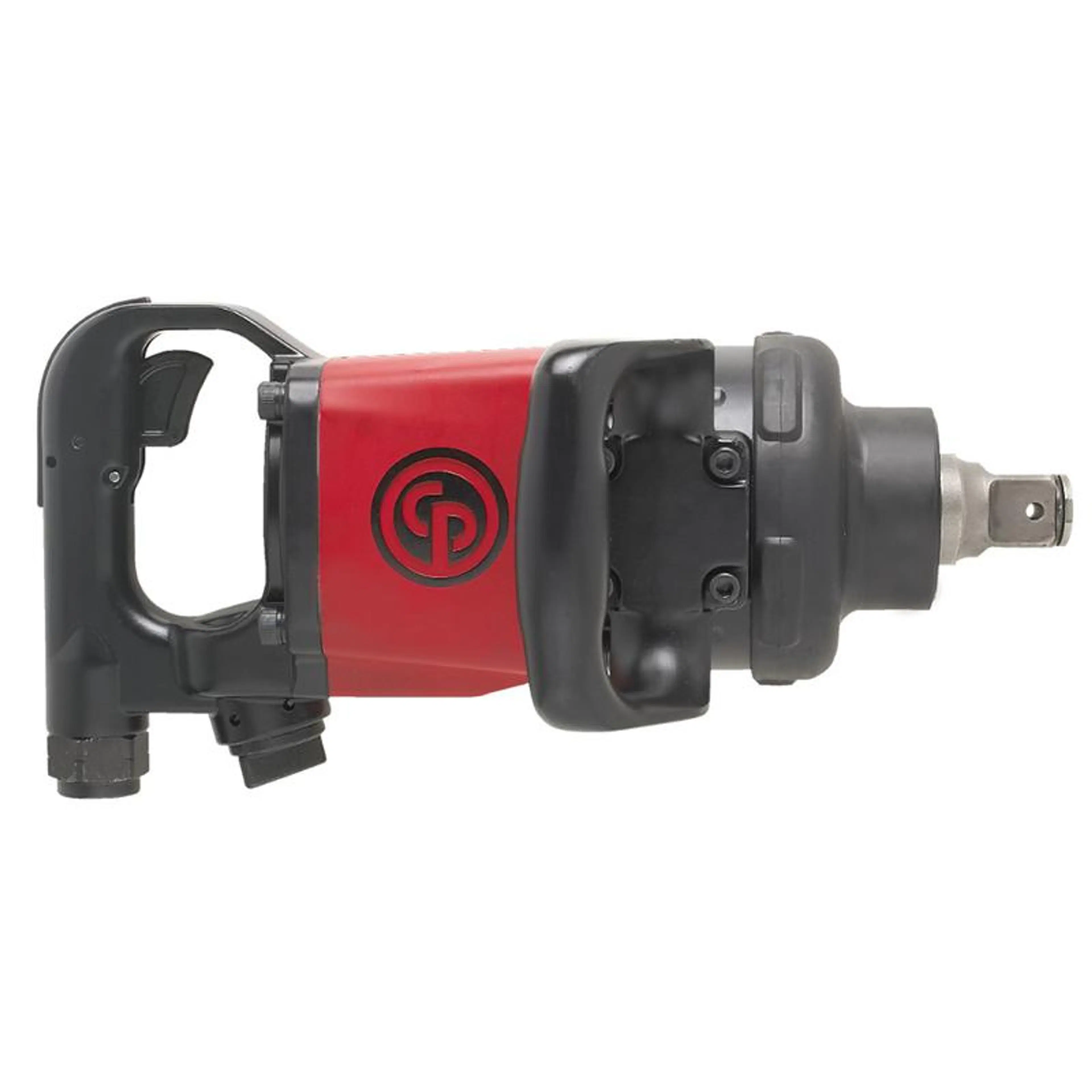

Click the image to zoom
Chicago Pneumatic8941077826
CP7782-6 | 1 in. 1475 Ft lb Extended Impact Wrench with dual retainer, 5200 rpm, 500 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP7782-6 Extended Impact Wrench Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP7782-6 Extended Impact Wrench Operator Manual (PDF)Open
- PDFChicago Pneumatic CP7782-6 Extended Impact Wrench CE Certificate (PDF)Open
- PDFChicago Pneumatic Air Impact and Pulse Wrench Safety Instructions (PDF)Open
8941077826 | CP7782-6 | 1 in. 1475 Ft lb Extended Impact Wrench with dual retainer, 5200 rpm, 500 bpmCP7782-6
Price on request
Details
Product information
Overview
Chicago Pneumatic 1 in. 1475 Ft lb Extended Impact Wrench with dual retainer, 5200 rpm, 500 bpm
CP7782-6
CP7782-6, 1 in. 1475 Ft lb Extended Impact Wrench with dual retainer, 5200 rpm, 500 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Extended Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- High efficiency motor, yet economical with durable reinforced clutch mechanism
- Durable impact wrench with great power for the toughest jobs on heavy vehicles
Features
- 1" straight impact wrench with 6" extended anvil
- 1920 ft.lbs - 2600 Nm of maximum torque in reverse
- Pinless closed reinforced rocking dog impact mechanism
- Dual socket retention, hole and friction ring
- Ergonomic side handle
- Full teasing trigger
- Regulator with integrated forward/reverse with 3-position power settings in both directions
| Technical Specifications | |
|---|---|
| Max working torque fwd | 2000 Nm |
| Max torque reverse | 2600 Nm |
| Min working torque fwd | 500 Nm |
| Torque limited | No |
| Air consumption at load | 19 l/s |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Benefits | ["1,920 ft.lbs ( 2,600 Nm) of max torque in reverse position for high productivity","Metal housing and pinless closed reinforced rocking dog impact mechanism for high durability","Power control regulators at the rear of the unit with 3 reverse and 3 forward positions","Integrated protective cover on the clutch housing protects both applications & tool","Low vibration for improved comfort"] |
| Sound Power | 111 dB(A) |
| Sound Pressure | 100 dB(A) |
| Uncertainty vibration-K | 1.8 m/s² |
| Vibration (m/s²) | 7.8 |
| Free Speed | 5200 rpm |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 520 mm |
| Power weight ratio | 250 Nm/kg |
| Weight | 11.6 kg |
| Blow per minute | 500 |
| Body | Aluminium |
| Clutch housing | Aluminium |
| Clutch lubrication type | Grease |
| Handle type | D-handle |
| Impact mecanism | Pinless rocking dog |
| Main Material type | Aluminium |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Output retainer type | Dual |
| Side handle | Yes |
| Starting system | Trigger |
| MPN | CP7782-6 |
