Chicago PneumaticT024585
CP5000 | 1 in. 2065 Ft lb Impact Wrench with dual retainer, 3700 rpm, 540 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
T024585 | CP5000 | 1 in. 2065 Ft lb Impact Wrench with dual retainer, 3700 rpm, 540 bpmCP5000
Price on request
Details
Product information
Overview

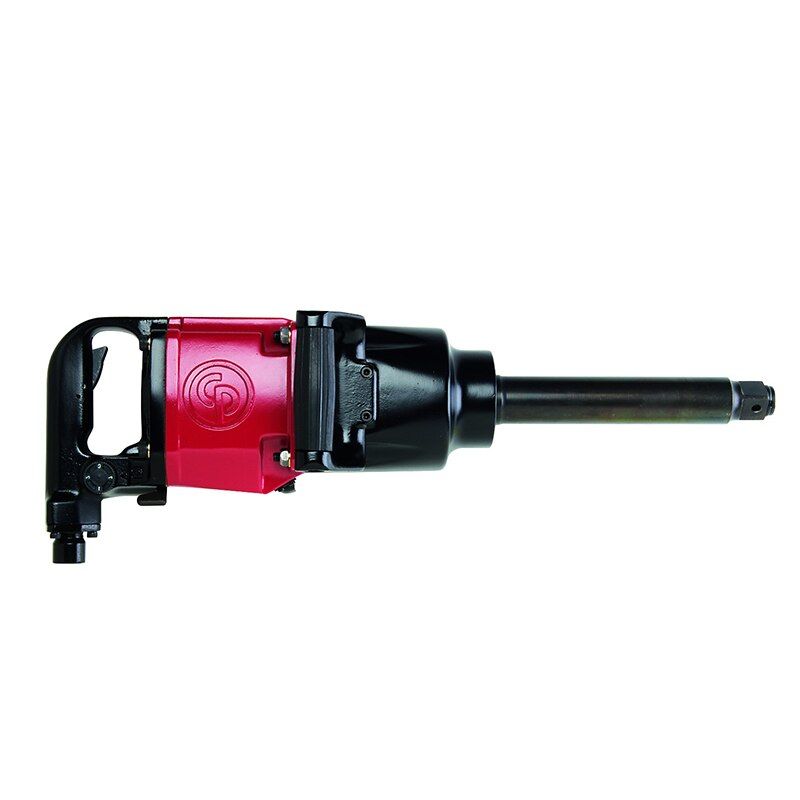

Chicago Pneumatic 1 in. 2065 Ft lb Impact Wrench with dual retainer, 3700 rpm, 540 bpm
CP5000
CP5000, 1 in. 2065 Ft lb Impact Wrench with dual retainer, 3700 rpm, 540 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Our strongest and most powerful 1" impact with an extended anvil
- Operator productivity
- Convenient reverse valve for ease of use
- Ideal for high volume tire work on trucks, buses, and heavy equipment
Features
- 1" impact wrench
- Rocking dog clutch
- 4-position power settings throttle for ease of use
- Convenient reverse valve
- Plus 7" extended anvil
| Technical Specifications | |
|---|---|
| Max working torque fwd | 2800 Nm |
| Max torque reverse | 3390 Nm |
| Min working torque fwd | 240 Nm |
| Torque limited | No |
| Air consumption at load | 25 l/s |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Sound Power | 114 dB(A) |
| Sound Pressure | 103 dB(A) |
| Uncertainty vibration-K | 2.6 m/s² |
| Vibration (m/s²) | 8.5 |
| Free Speed | 3700 rpm |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Length (L) | 572 mm |
| Power weight ratio | 200 Nm/kg |
| Weight | 16.2 kg |
| Blow per minute | 540 |
| Body | Aluminium |
| Clutch housing | Steel |
| Clutch lubrication type | Grease |
| Handle type | D-handle |
| Impact mecanism | Pinless rocking dog |
| Main Material type | Aluminium |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Output retainer type | Dual |
| Side handle | Yes |
| Starting system | Trigger |
| MPN | CP5000 |
