Chicago Pneumatic6151590410

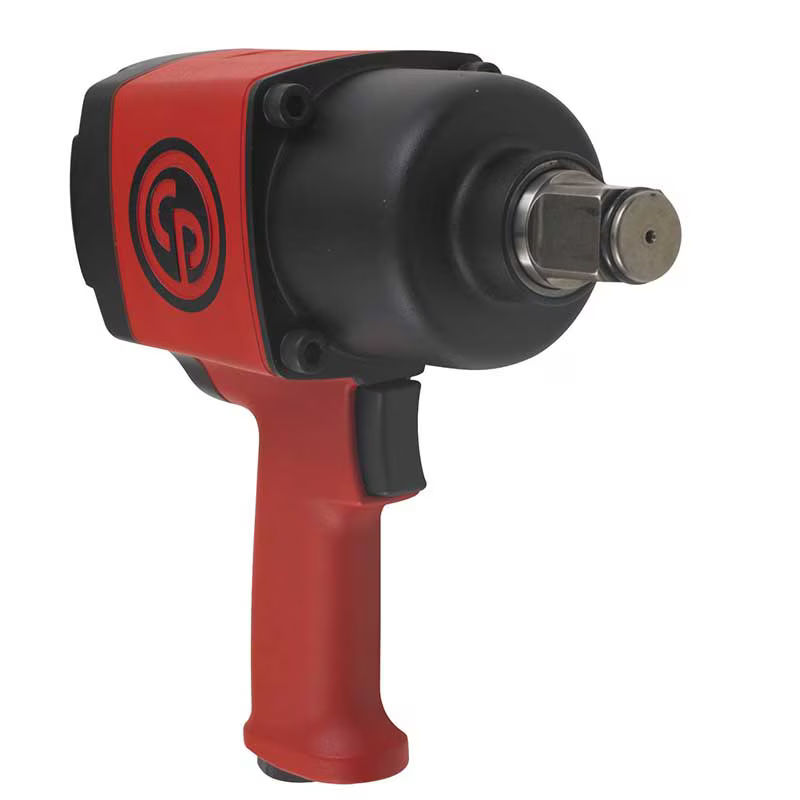

CP6773 | 1 in. 1200 ft lb Air Impact Wrench, Pistol, 6300 rpm
Compact, Robust and Powerful. Ideal for Industrial Maintenance applications
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
6151590410 | CP6773 | 1 in. 1200 ft lb Air Impact Wrench, Pistol, 6300 rpmCP6773
Price on request
Recommended Accessories
1 itemAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 CP6773-D18D6151590650 | CP6773-D18D | 1 in. 1300 ft lb Air Impact Wrench, D-Handle Inside Trigger, 6600 rpm | 1 | View details |
Details
Product information
Overview
Chicago Pneumatic 1 in. 1200 ft lb Air Impact Wrench, Pistol, 6300 rpm
CP6773
CP6773, 1 in. 1200 ft lb Air Impact Wrench, Pistol, 6300 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1 in. 1200 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!
Benefits
- Compact & Versatile for Industrial Maintenance applications
- Robust for the roughest environments and toughest usages
- Powerful to loose virtually any bolts up to M27 (ISO 10,9)
Features
- 1" impact wrench with Dual retainer
- Short and narrow side-to-center for easy access
- Robust Steel Clutch housing
- Powerful Twin hammer clutch: 1,200 ft.lbs (1,630 Nm)
- Combined power regulator with forward/reverse
| Technical Specifications | |
|---|---|
| Max working torque fwd | 1290 Nm |
| Max torque reverse | 1630 Nm |
| Min working torque fwd | 350 Nm |
| Torque limited | No |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Benefits | ["Powerful hard hitting twin hammer clutch mechanism","Flexibility and safety is guaranteed with the double hole and ring retaining system.","Steel clutch housing and aluminium motor housing for robustness","Short and narrow side-to-centre for easy access"] |
| Sound Power | 107 dB(A) |
| Sound Pressure | 96 dB(A) |
| Uncertainty vibration-K | 1.3 m/s² |
| Free Speed | 6300 rpm |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 227.5 mm |
| Power weight ratio | 290 Nm/kg |
| Side to Center | 41 mm |
| Weight | 5.6 kg |
| Blow per minute | 900 |
| Body | Aluminium |
| Clutch housing | Steel |
| Clutch lubrication type | Oil bath |
| Handle type | Pistol |
| Impact mecanism | Twin hammer |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
| MPN | CP6773 |
| Features & Benefits | |
| Ideal for industrial MRO applications | |
