Chicago Pneumatic6151590070

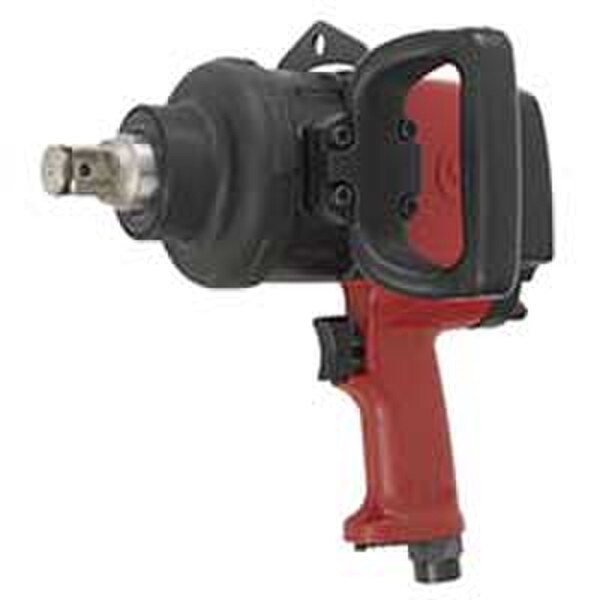

CP6910-P24 | 1 in. 1920 ft lb Air Impact Wrench, Pistol, 5000 rpm
Powerful, Robust and Comfortable 1'' square impact for industrial maintenance
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
- PDFChicago Pneumatic CP6910-P24 1 in. 1920 ft lb Air Impact Wrench Parts Breakdown (PDF)Open
- PDFChicago Pneumatic CP6910-P24 1 in. 1920 ft lb Air Impact Wrench Operators Manual (PDF)Open
- PDFChicago Pneumatic Air Impact and Pulse Wrench Safety Instructions (PDF)Open
- PDFChicago Pneumatic CP6910-P24 1 in. 1920 ft lb Air Impact Wrench CE Certificate (PDF)Open
6151590070 | CP6910-P24 | 1 in. 1920 ft lb Air Impact Wrench, Pistol, 5000 rpmCP6910-P24
Price on request
Recommended Accessories
1 itemAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
 CP6920-D246151590080 | CP6920-D24 | 1 in. 1920 ft lb Air Impact Wrench, D-Handle Inside Trigger, 5000 rpm | 1 | View details |
Details
Product information
Overview
Chicago Pneumatic 1 in. 1920 ft lb Air Impact Wrench, Pistol, 5000 rpm
CP6910-P24
CP6910-P24, 1 in. 1920 ft lb Air Impact Wrench, Pistol, 5000 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1 in. 1920 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!
Benefits
- Ideal for a variety of heavy Industrial Maintenance applications
- Reliable & powerful oil bath Pinless Rocking Dog clutch
- Operator comfort with many ergonomic features
- 3-part construction reducing downtime maintenance
Features
- 1" Industrial Pistol impact wrench
- Oil Bath Pinless rocking dog clutch
- Durable Aluminum body & Rubber protective cover on clutch housing
- D-type side handle with Rubber grip
- Dual (hole & ring) type socket retainer
- Removable hole plate for suspension
- Metal trigger & reverse knob for longer durability
- 3-positions regulator & easy reverse
| Technical Specifications | |
|---|---|
| Max working torque fwd | 2100 Nm |
| Max torque reverse | 2600 Nm |
| Min working torque fwd | 500 Nm |
| Torque limited | No |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Sound Power | 108 dB(A) |
| Sound Pressure | 97 dB(A) |
| Uncertainty vibration-K | 2.5 m/s² |
| Vibration (m/s²) | 8.9 |
| Free Speed | 5000 rpm |
| ItemType | product |
| ItemCountryOfOrigin | JP |
| Length (L) | 290 mm |
| Power weight ratio | 250 Nm/kg |
| Side to Center | 55 mm |
| Weight | 10.2 kg |
| Blow per minute | 650 |
| Body | Aluminum |
| Clutch housing | Aluminum |
| Clutch lubrication type | Oil bath |
| Handle type | Pistol |
| Impact mecanism | Pinless rocking dog |
| Main Material type | Aluminium |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Output retainer type | Dual |
| Side handle | Yes |
| Starting system | Trigger |
| MPN | CP6910-P24 |
| Features & Benefits | |
| Powerful, Fast and Ergonomic | |
| Ideal for industrial maintenance applications | |
| Powerful | |
| Fast and Ergonomic | |
