Chicago Pneumatic8941077730
CP7773 | 1 in. 950 Ft lb Impact Wrench with ring retainer, 6300 rpm, 900 bpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8941077730 | CP7773 | 1 in. 950 Ft lb Impact Wrench with ring retainer, 6300 rpm, 900 bpmCP7773
Price on request
Details
Product information
Overview

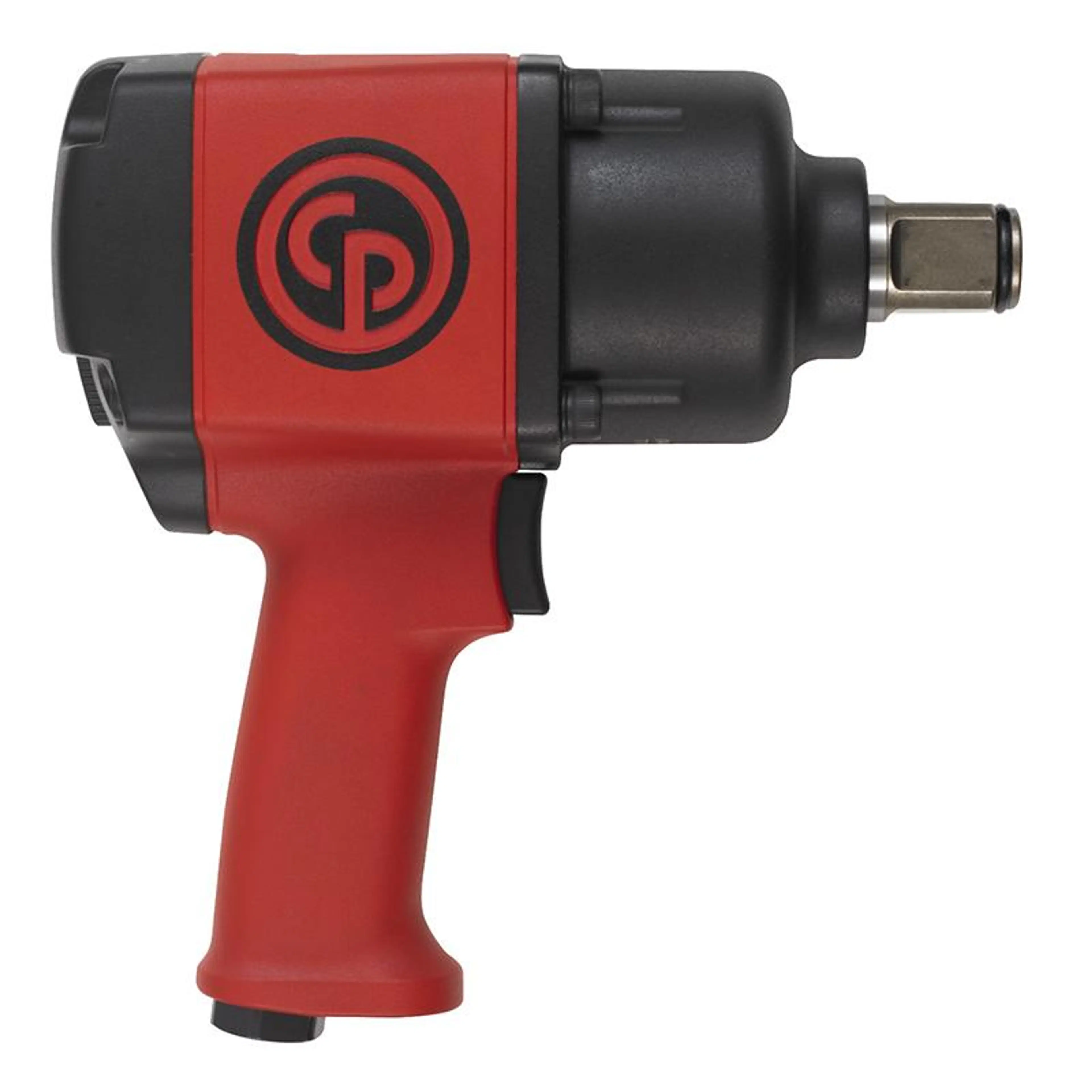

Chicago Pneumatic 1 in. 950 Ft lb Impact Wrench with ring retainer, 6300 rpm, 900 bpm
CP7773
CP7773, 1 in. 950 Ft lb Impact Wrench with ring retainer, 6300 rpm, 900 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Ideal for General Maintenance applications
- Powerful motor and durable clutch
- Operator comfort due to reduced noise level
Features
- 1" pistol impact wrench with ring retainer
- Twin hammer clutch
- High power: 1200 ft.lbs (1627 Nm)
- Compact size with only 12,1 lbs (5.25 kg)
- Combined power regulator with forward/reverse
| Technical Specifications | |
|---|---|
| Max working torque fwd | 1280 Nm |
| Max torque reverse | 1630 Nm |
| Min working torque fwd | 136 Nm |
| Torque limited | No |
| Air consumption at load | 14 l/s |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Sound Power | 107 dB(A) |
| Sound Pressure | 96 dB(A) |
| Uncertainty vibration-K | 4.2 m/s² |
| Vibration (m/s²) | 10.4 |
| Free Speed | 6300 rpm |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 234 mm |
| Power weight ratio | 290 Nm/kg |
| Side to Center | 45 mm |
| Weight | 5.5 kg |
| Blow per minute | 900 |
| Body | Aluminium |
| Clutch housing | Aluminium |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Twin hammer |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Output retainer type | Friction ring |
| Starting system | Trigger |
| MPN | CP7773 |
