Chicago Pneumatic8941077760
CP7776 | 1 in. 1530 Ft lb Impact Wrench with dual retainer, 5000 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8941077760 | CP7776 | 1 in. 1530 Ft lb Impact Wrench with dual retainer, 5000 rpmCP7776
Price on request
Details
Product information
Overview

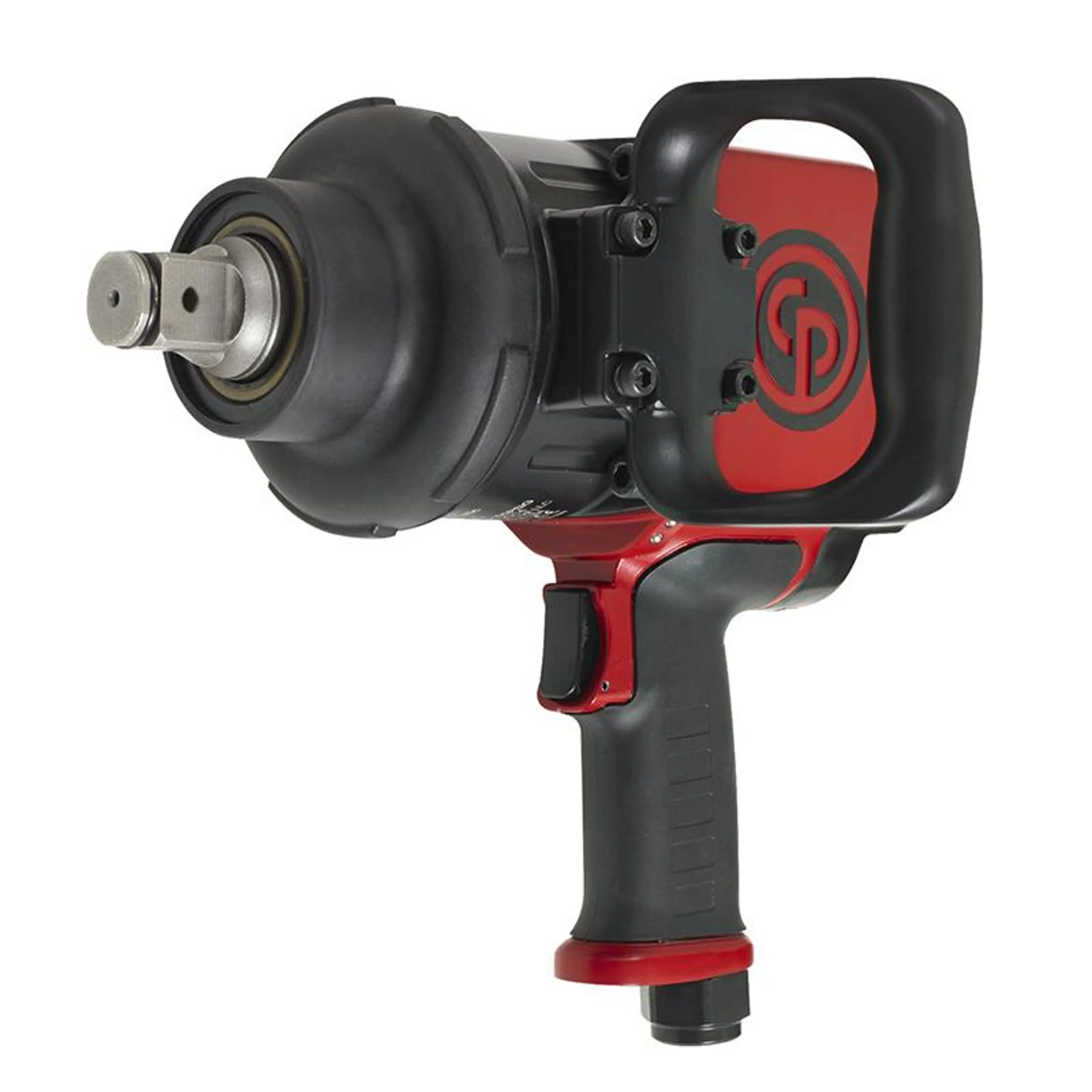

Chicago Pneumatic 1 in. 1530 Ft lb Impact Wrench with dual retainer, 5000 rpm
CP7776
CP7776, 1 in. 1530 Ft lb Impact Wrench with dual retainer, 5000 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- High Torque & Powerful
- Durable
- Comfort & Great Handling
- Useful
- Safe
Features
- 2400 Nm – 1770 ft.lbs maximum torque in reverse
- Pin less closed reinforced rocking dog clutch mechanism
- TPR handle & side handle - being able to rotate in 4 positions
- Regulator integrated in forward/reverse knob with 3 positions power setting in both directions
- Rubber bumper protecting both applications & tool (included)
- Socket retainer ring combined with hole retainer
- Handle being able to rotate in 4 positions for ultimate operator comfort
- Angled down exhaust blows air away from work place
| Technical Specifications | |
|---|---|
| Model | CP7776 |
| Type | Impact Wrench |
| Manufacturer | Chicago Pneumatic |
| Length (mm) | 289 |
| Min Torque (Ft Lb) | 704 |
| Free Speed (RPM) | 5000 |
| SKU | 8941077760 |
| Stock Code | 2 |
| Air Inlet | 1/2 in. |
| Clutch Type | Pinless closed rocking dog |
| Maximum Torque Reverse (ft lb) | 1770 ft lbs |
| Max Torque (Ft Lb) | 1530 |
| Min Torque (Nm) | 955 |
| Max Torque (Nm) | 2073 |
| Bolt Size - mm | M32 |
| Square Drive | 1 in. |
| Min Hose Size (in) | 1/2 |
| Weight (lbs) | 24.7 |
| Side to Center (in) | 4.3 |
| Handle Type | Pistol |
| Retainer Type | Dual, hole and friction |
| MPN | CP7776 |
