Chicago Pneumatic8941077766
CP7776-6 | 1 in. 1530 Ft lb Extended Impact Wrench with dual retainer, 5000 rpm
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
8941077766 | CP7776-6 | 1 in. 1530 Ft lb Extended Impact Wrench with dual retainer, 5000 rpmCP7776-6
Price on request
Details
Product information
Overview

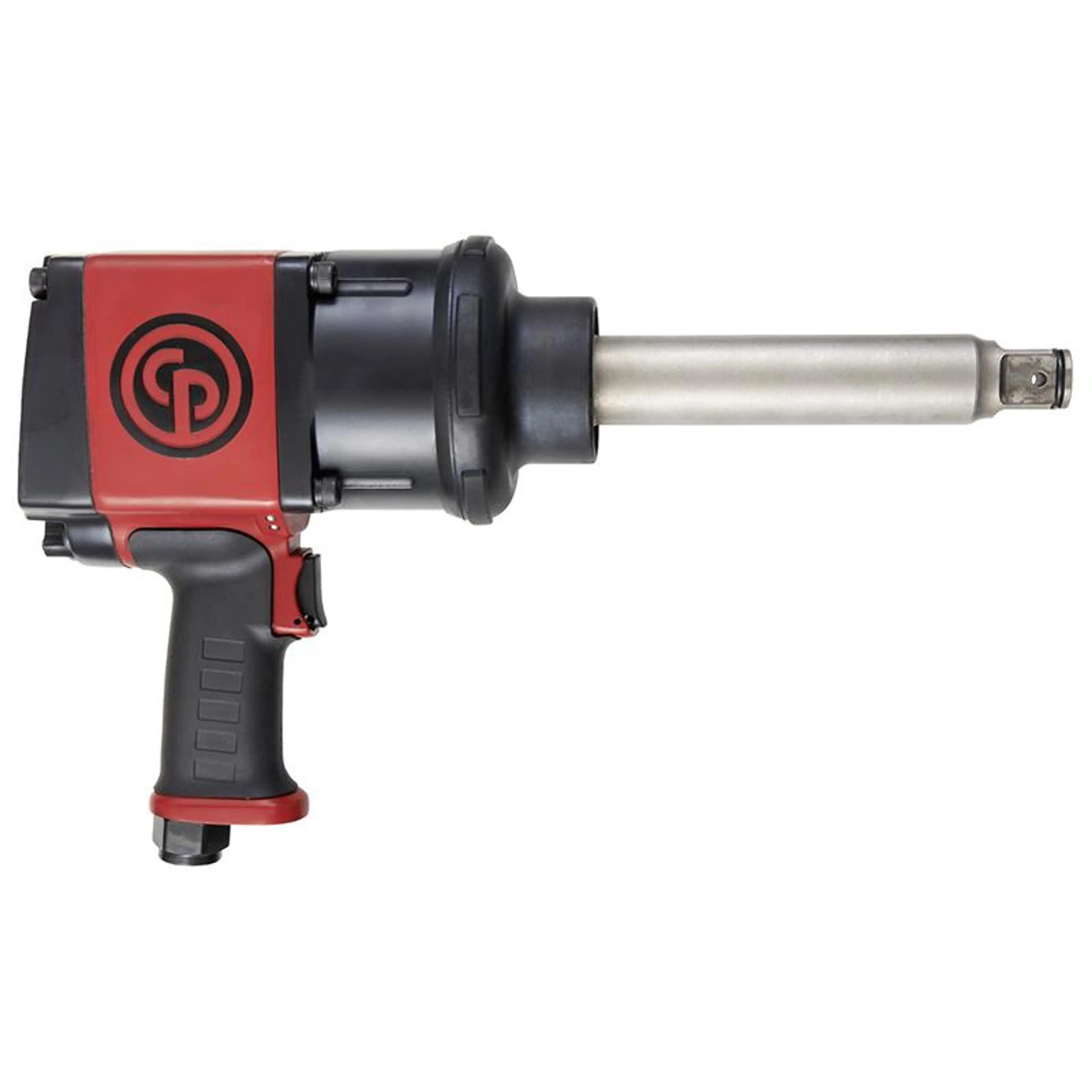

Chicago Pneumatic 1 in. 1530 Ft lb Extended Impact Wrench with dual retainer, 5000 rpm
CP7776-6
CP7776-6, 1 in. 1530 Ft lb Extended Impact Wrench with dual retainer, 5000 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Extended Impact Wrench at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- High Torque & Powerful
- Durable
- Comfort & Great Handling
- Useful
- Safe
Features
- 2400 Nm – 1770 ft.lbs maximum torque in reverse
- Pin less closed reinforced rocking dog clutch mechanism
- TPR handle & side handle - being able to rotate in 4 positions
- Regulator integrated in forward/reverse knob with 3 positions power setting in both directions
- Rubber bumper protecting both applications & tool (included)
- Socket retainer ring combined with hole retainer
- Handle being able to rotate in 4 positions for ultimate operator comfort
- Angled down exhaust blows air away from work place
| Technical Specifications | |
|---|---|
| Max working torque fwd | 2070 Nm |
| Max torque reverse | 2400 Nm |
| Min working torque fwd | 956 Nm |
| Torque limited | No |
| Air consumption at load | 15 l/s |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Benefits | ["Metal housing and pinless closed reinforced rocking dog impact mechanism for high durability","TPR handle and side handle swivel in 4 positions for maximum comfort","Power control regulators at the back of the tool with 3 reverse and 3 forward positions","Angled down exhaust blows air away from work place","Rubber bumpers protect both applications & tool"] |
| Sound Power | 104 dB(A) |
| Sound Pressure | 93 dB(A) |
| Uncertainty vibration-K | 2.8 m/s² |
| Vibration (m/s²) | 8.7 |
| Free Speed | 5000 rpm |
| ItemType | product |
| ItemCountryOfOrigin | TW |
| Length (L) | 447 mm |
| Power weight ratio | 190 Nm/kg |
| Side to Center | 109 mm |
| Weight | 12.6 kg |
| Body | Aluminium |
| Clutch housing | Aluminium |
| Clutch lubrication type | Grease |
| Handle type | Pistol |
| Impact mecanism | Pinless rocking dog |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Output retainer type | Dual |
| Side handle | Yes |
| Starting system | Trigger |
| MPN | CP7776-6 |
